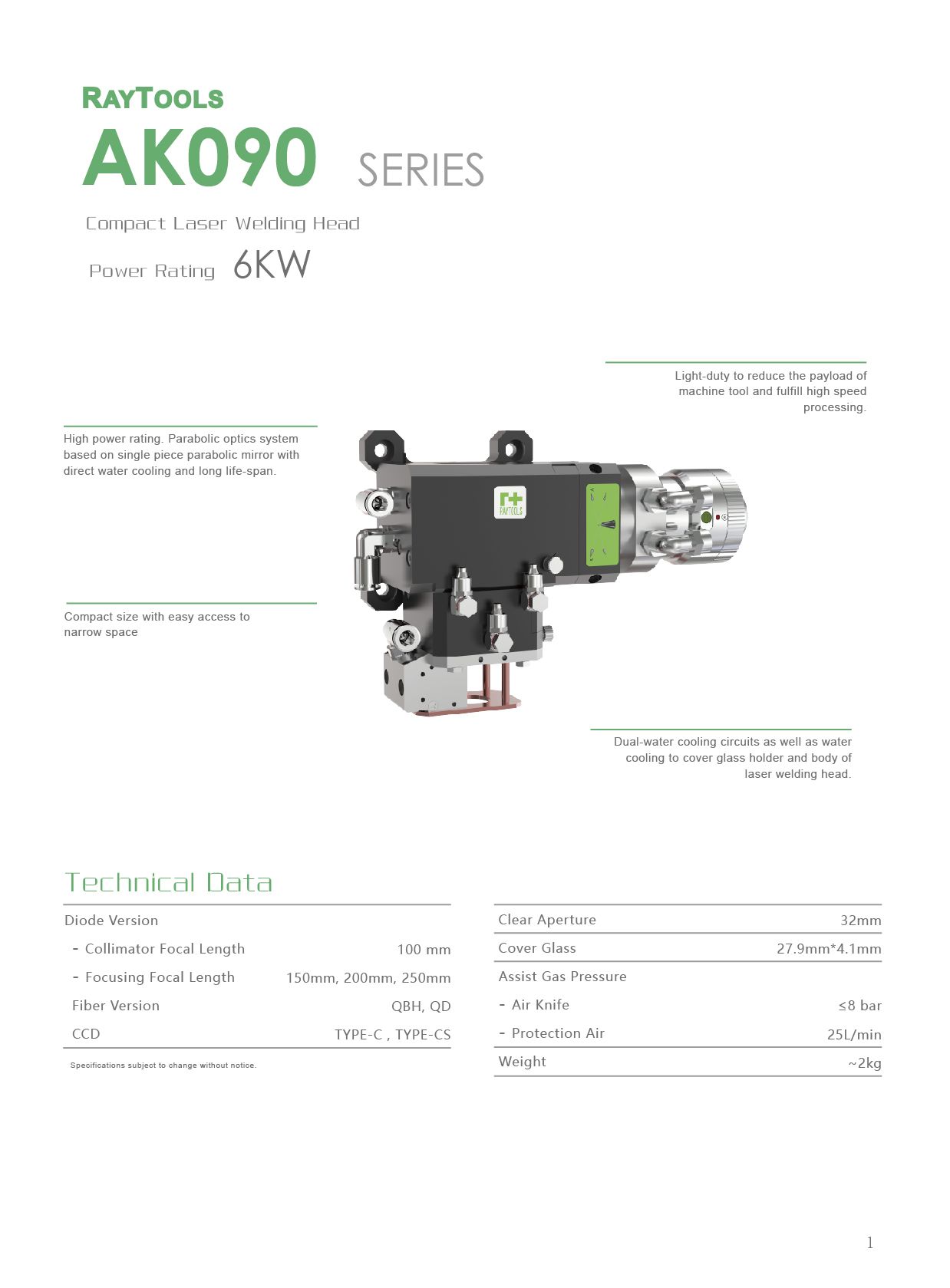

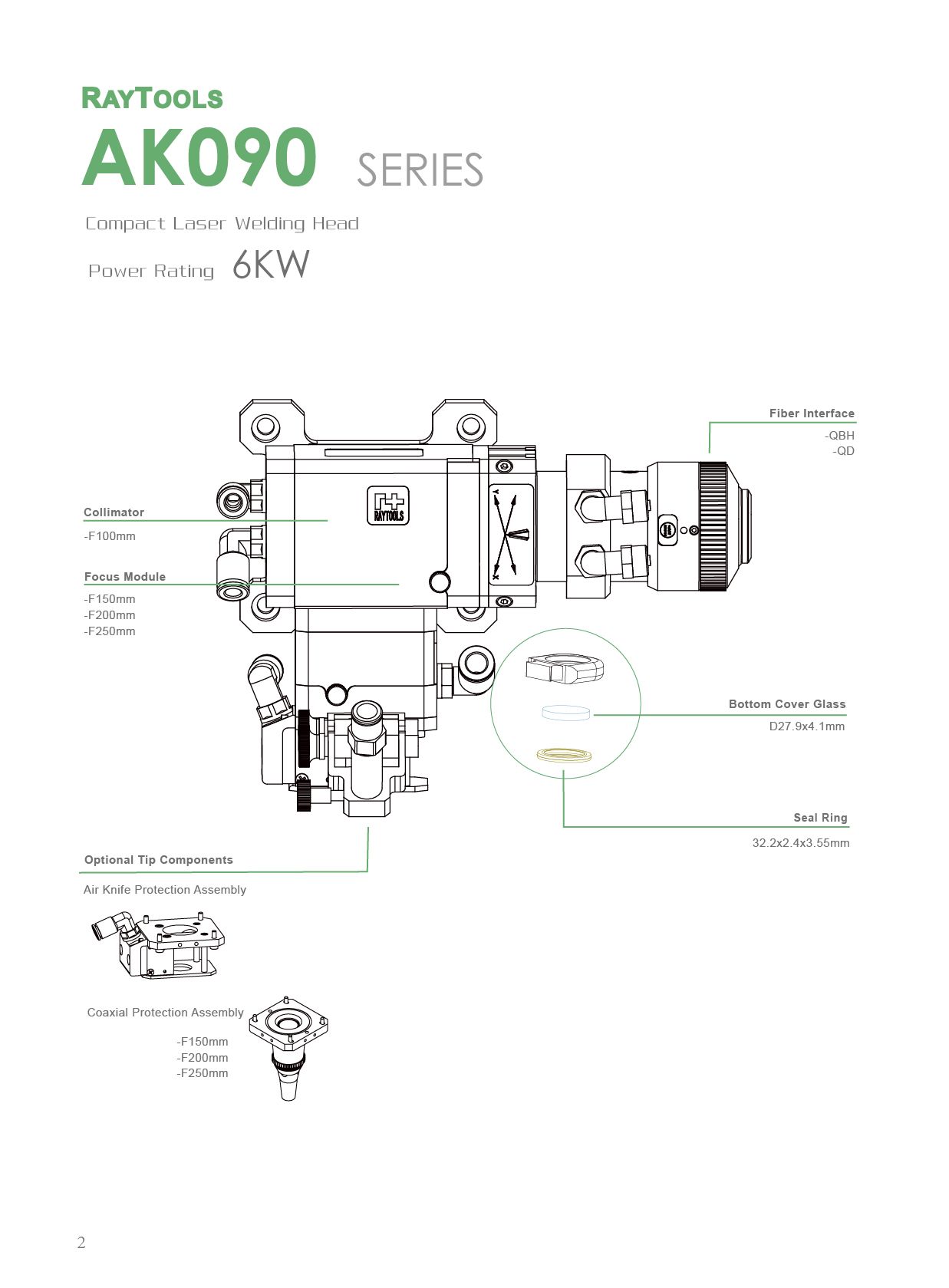

AK090 Laser Welding Head
Power rating 6KW; High power laser welding with mini size; Parabolic optics system.
- Features
- Technical Data
High power rating. Parabolic optics system based on single piece parabolic mirror with direct water cooling and long life-span.
Compact size with easy access to narrow space.
Light-duty to reduce the payload of machine tool and fulfill high speed processing.
Dual-water cooling circuits as well as water cooling to cover glass holder and body of laser welding head.
Fiber Interface | QBH , QD | Assist Gas Pressure | ||
Clear Aperture | 35mm |
| - Air Knife | ≤8 bar |
Collimator Focal Length | 100mm |
| - Protection Air | ≤25L/min |
Focusing Focal Length | 150mm, 200mm , 250mm |
| Weight | ~ 2kg |
CCD Interface | TYPE-C , TYPE-CS |
| Optional Tip Components | Side Blow / Coaxial Nozzle |
Cover Glass |
|
|
| |
- Collimation Side (Top) | N/A |
|
| |
- Focusing Side (Bottom) | Φ27.9*4.1mm |
|
| |
