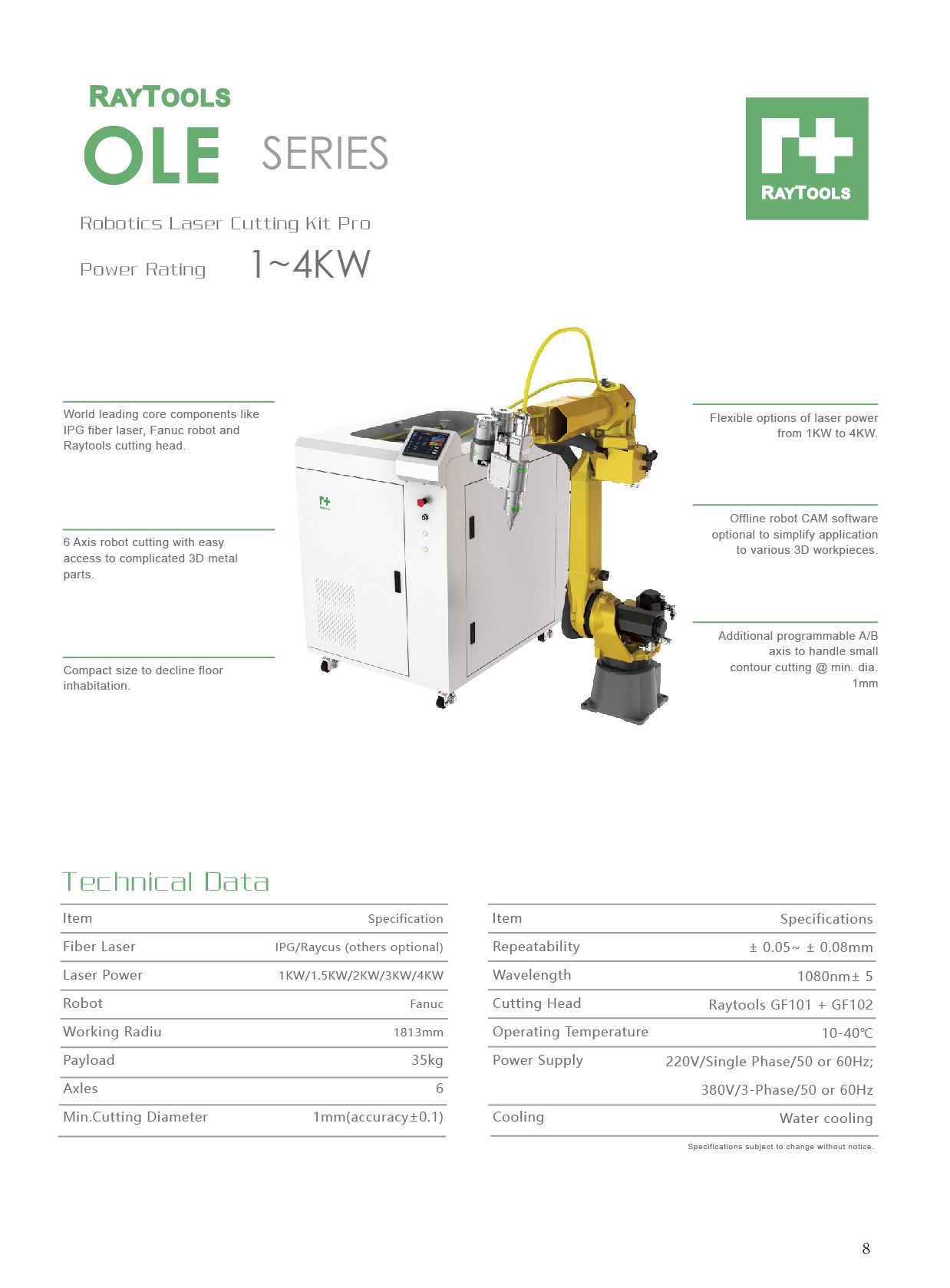

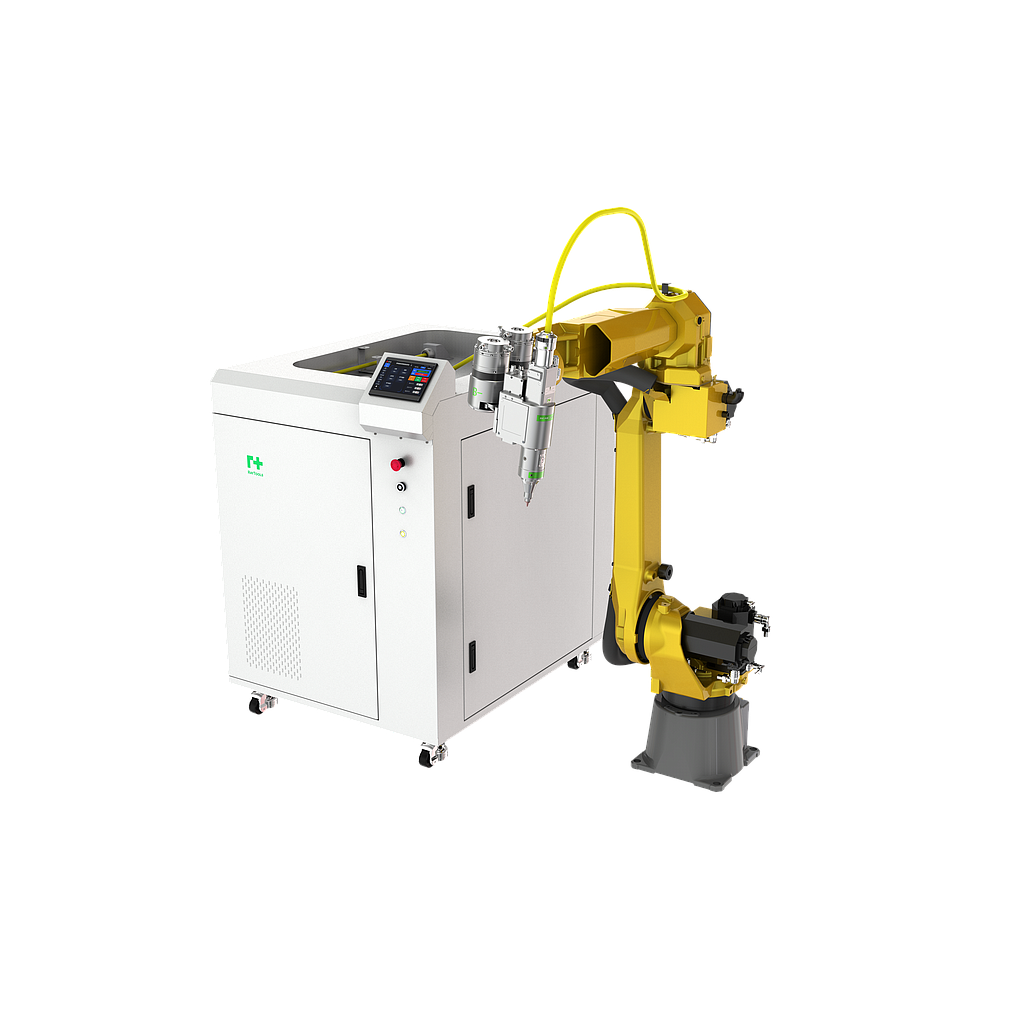

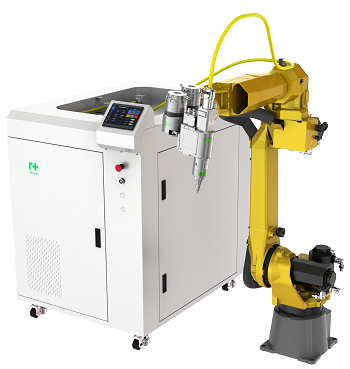

Robotics Fiber Laser Cutting Kit Pro

6-Axis robot laser cutting with additional programmable A/B axis to handle small contour cutting @ min. dia. 1mm. Laser power 1KW-4KW.

  • Features
  • Technical Data


  • World leading core components like IPG fiber laser, Fanuc robot and Raytools cutting head.

  • 6 Axis robot cutting with easy access to complicated 3D metal parts.

  • Compact size to decline floor inhabitation.

  • Flexible options of laser power from 1KW to 4KW.

  • Offline robot CAM software optional to simplify application to various 3D workpieces.

  • Programmable A/B axis which is capable of cutting to small contours @ min. dia. 1mm.

Fiber Laser

IPG/Raycus (Others optional)

Repeatability

± 0.05- ± 0.08mm

Laser Power

1KW/1.5KW/2KW/3KW/4KW

Wavelength

1080nm±5

Robot

Fanuc

Cutting Head

Raytools GF101+GF102

Working Radius

1813mm

Operating Temperature

10-40

Payload

35kg

Power Supply

220V/50Hz/60Hz/1 phase/; 380V/50Hz/60Hz/3-phase (Others optional)

Axles

6

Cooling

Water cooling

Min. Cutting Diameter

1mm (accuracy ±0.1mm)
