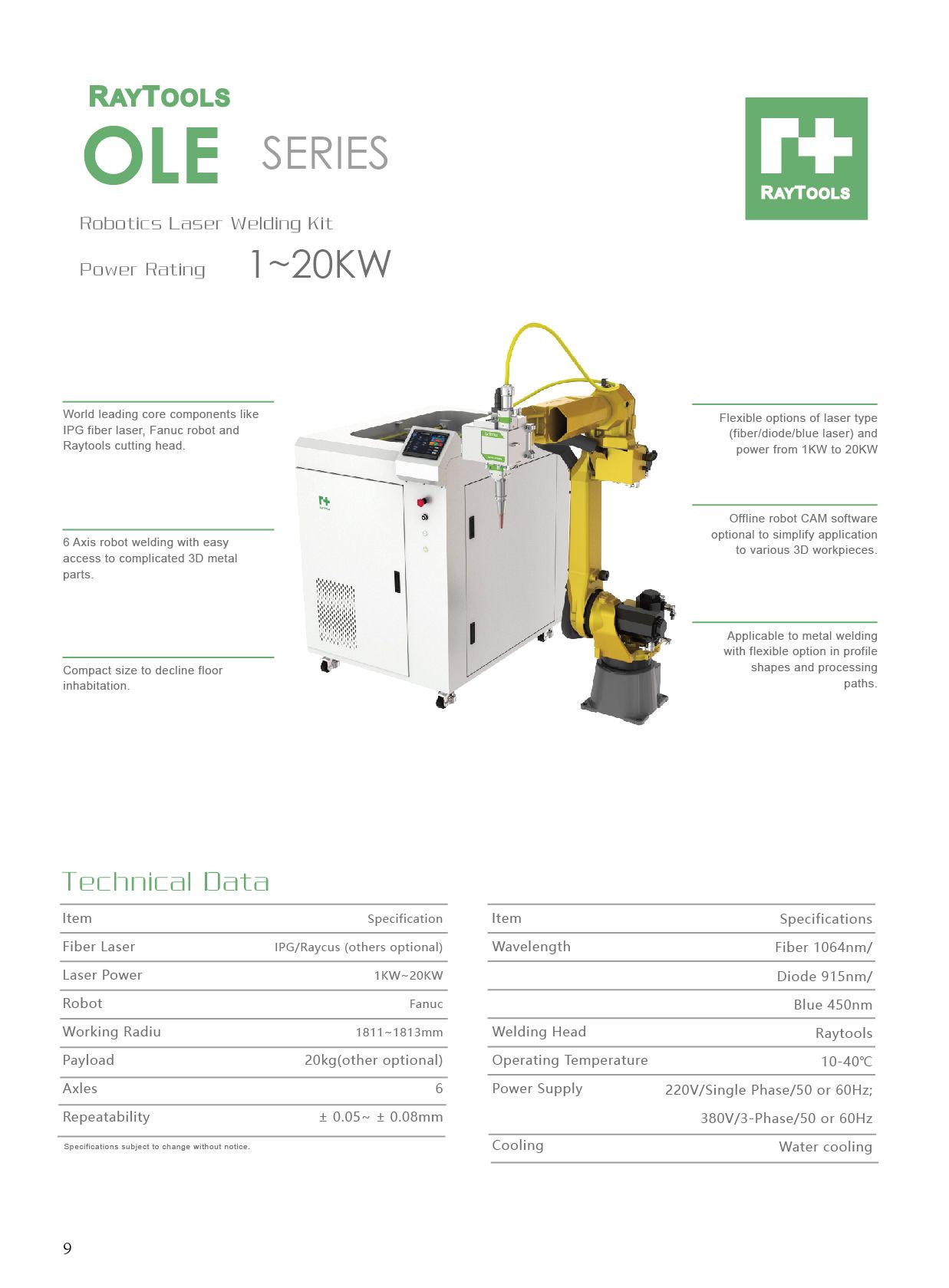

Robotics Laser Welding Kit

6-Axis robot laser welding with laser power 1KW-20KW.

  • Features
  • Technical Data



  • World leading core components like IPG fiber laser, Fanuc robot and Raytools welding head.

  • 6 Axis robot welding with easy access to complicated 3D metal parts.

  • Compact size to decline floor inhabitation.

  • Flexible options of laser type (fiber/diode/blue laser) and power from 1KW to 20KW.

  • Cladding or hardening application is optional by changing laser head.

  • Offline robot CAM software optional to simplify application to various 3D workpieces.



Fiber/Diode/Blue Laser

IPG/Raycus (Others optional)

Repeatability

± 0.05- ± 0.08mm

Laser Power

1KW-20KW

Wavelength

Fiber 1064nm/Diode 915nm/Blue 450nm

Robot

Fanuc

Welding Head

Raytools

Working Radius

1811-1813mm (others optional)

Operating Temperature

10-40

Payload

20kg (others optional)

Power Supply

220V/50Hz/60Hz/1 phase/; 380V/50Hz/60Hz/3-phase (Others optional)

Axles

6

Cooling

Water cooling
