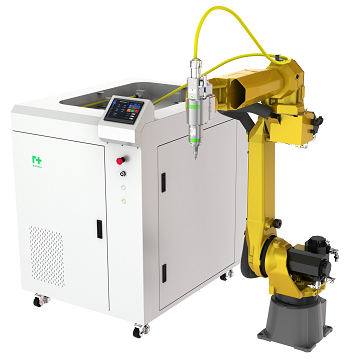

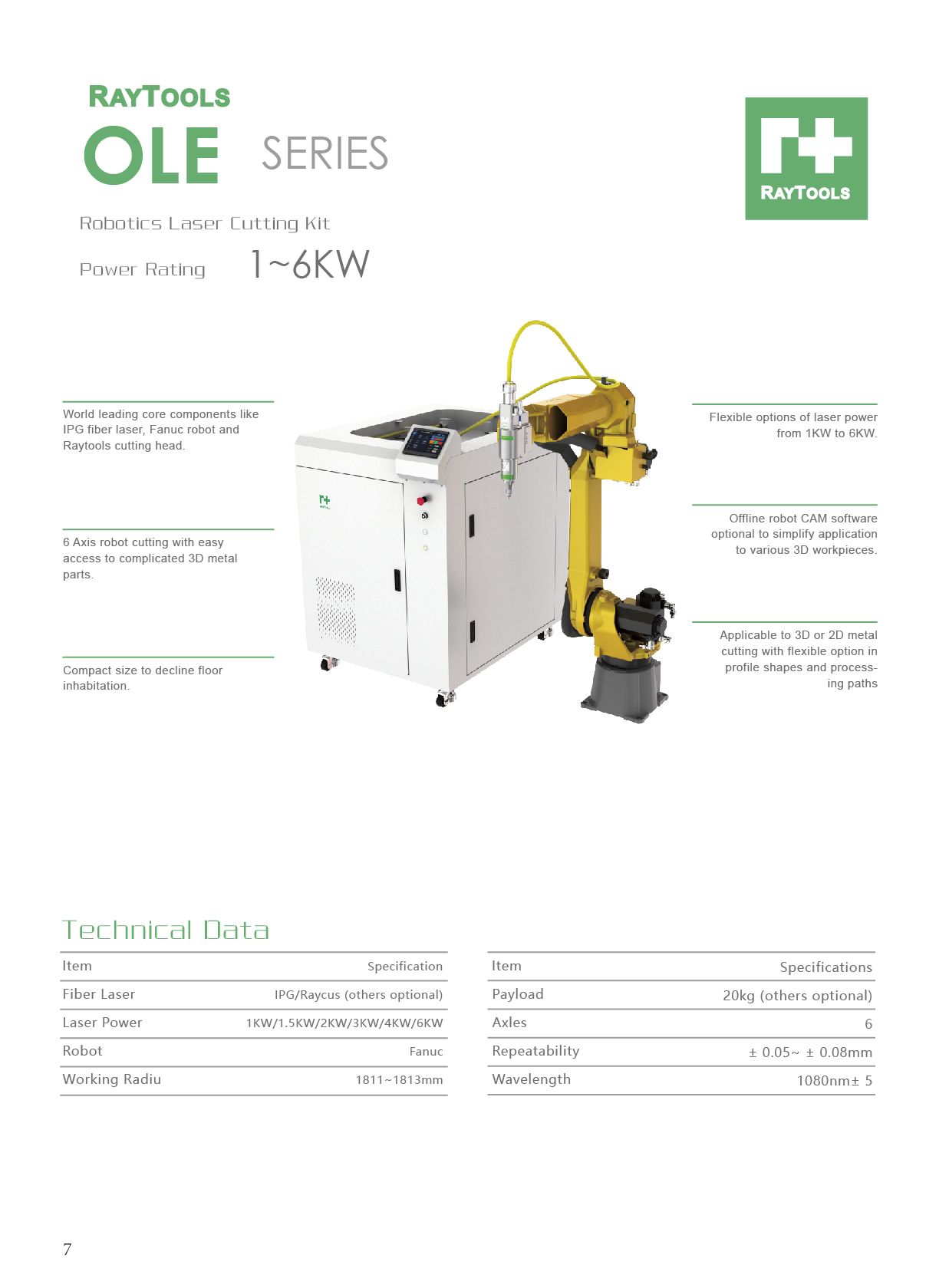

Robotics Fiber Laser Cutting Kit

6-Axis robotics laser cutting for metal materials with laser power 1KW-6KW.

  • Features
  • Technical Data


  • World leading core components like IPG fiber laser, Fanuc robot and Raytools cutting head.

  • 6 Axis robot cutting with easy access to complicated 3D metal parts.

  • Compact size to decline floor inhabitation.

  • Flexible options of laser power from 1KW to 6KW.

  • Offline robot CAM software optional to simplify application to various 3D workpieces.

Fiber Laser

IPG/Raycus (Others optional)

Repeatability

± 0.05- ± 0.08mm

Laser Power

1KW/1.5KW/2KW/3KW/4KW/6KW

Wavelength

1080nm±5

Robot

Fanuc

Cutting Head

Raytools GF101 (Others optional)

Working Radius

1811-1813mm (others optional)

Operating Temperature

10-40

Payload

20kg (others optional)

Power Supply

220V/50Hz/60Hz/1 phase/; 380V/50Hz/60Hz/3-phase (Others optional)

Axles

6

Cooling

Water cooling
