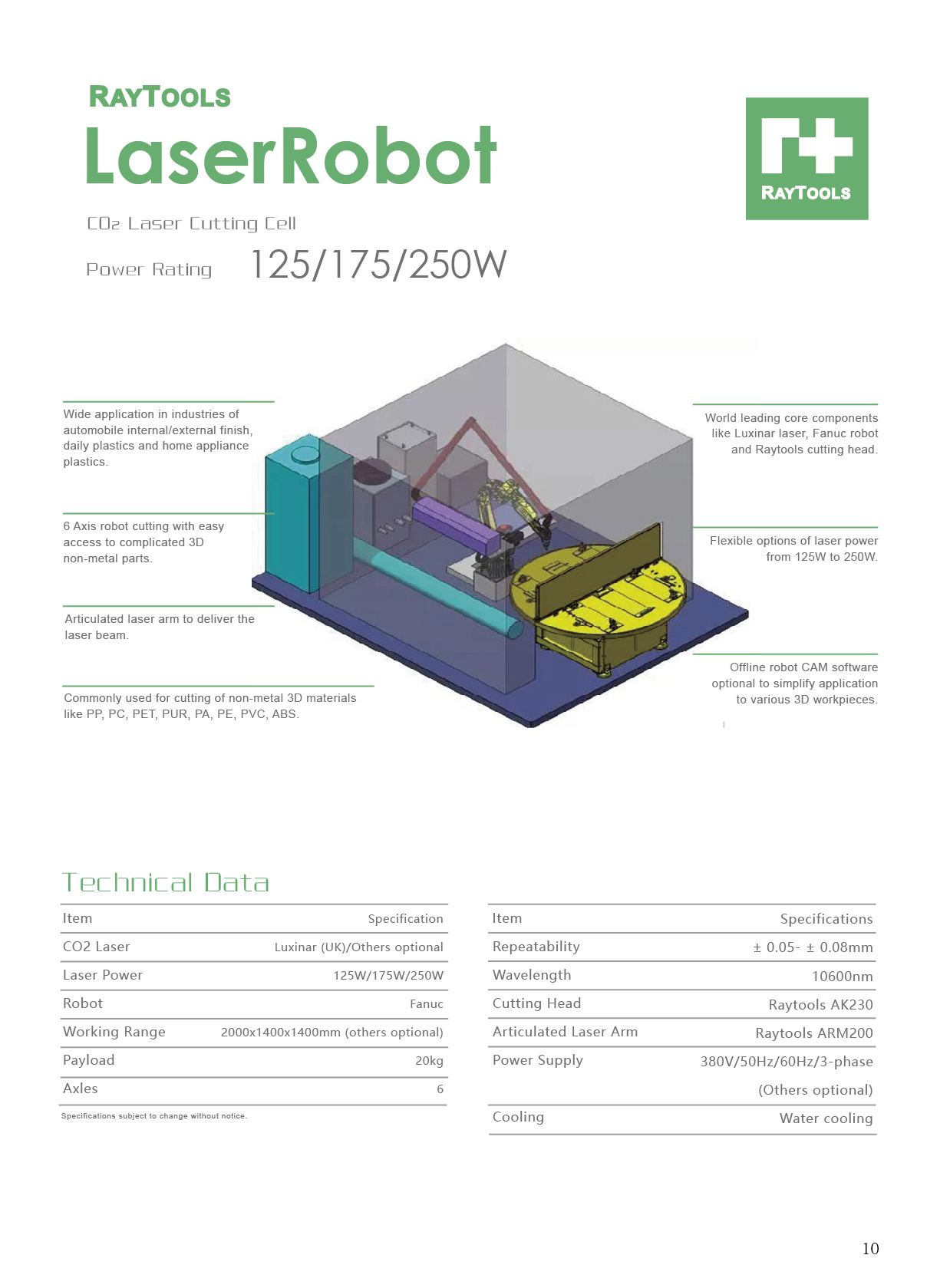

Robotics CO2 Laser Cutting Cell

6-Axis robotics CO2 laser cutting for non-metal materials with laser power 125W-250W.

  • Features
  • Technical Data

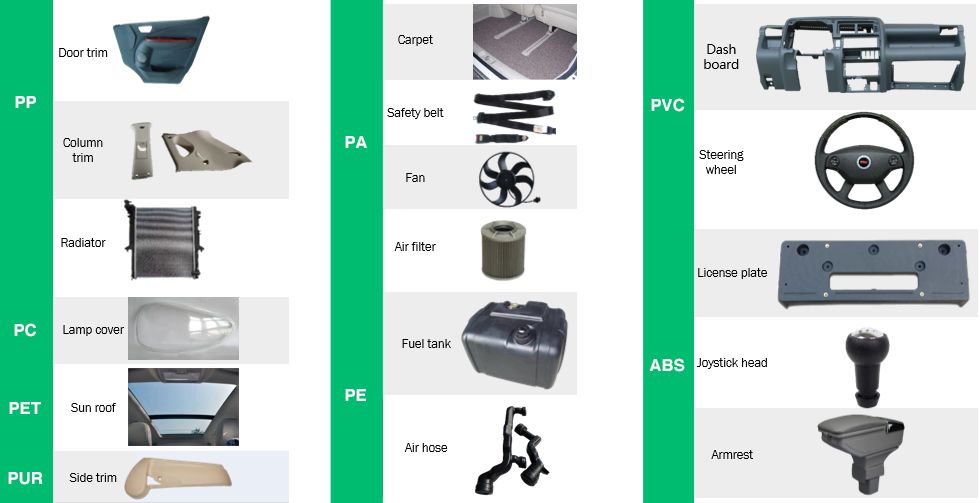

Commonly used for cutting of non-metal 3D materials like PP, PC, PET, PUR, PA, PE, PVC, ABS...


Wide application in industries of automobile internal/external finish, daily plastics and home appliance plastics.

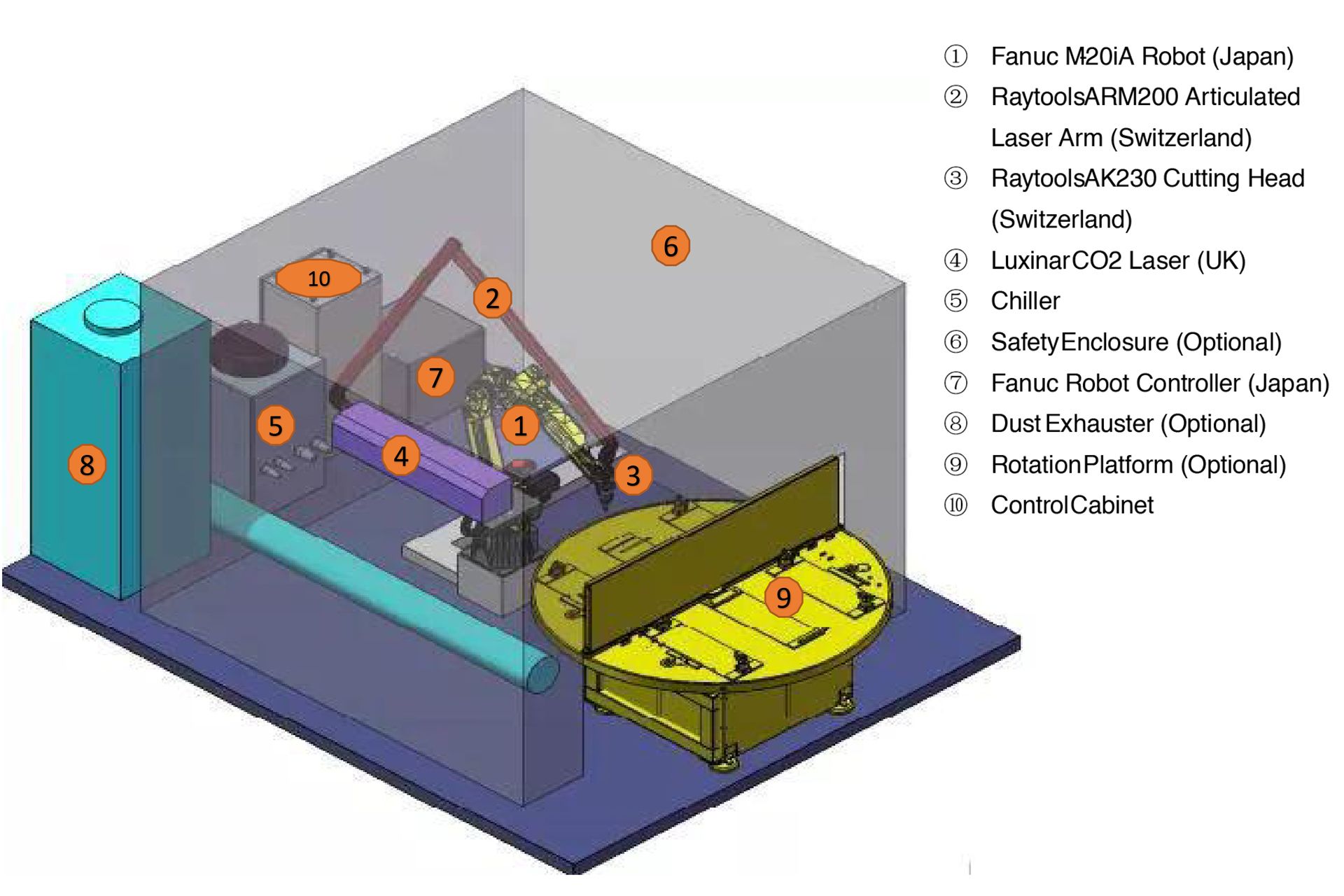

World leading core components like Luxinar laser, Fanuc robot and Raytools cutting head.

6 Axis robot cutting with easy access to complicated 3D non-metal parts.

Flexible options of laser power from 125W to 250W.

Articulated laser arm to deliver the laser beam.

Offline robot CAM software optional to simplify application to various 3D workpieces.

CO2 Laser

Luxinar (UK)/Others optional

Repeatability

± 0.05- ± 0.08mm

Laser Power

125W/175W/250W

Wavelength

10600nm

Robot

Fanuc

Cutting Head

Raytools AK230

Working Range

2000x1400x1400mm (others optional)

Articulated Laser Arm

Raytools ARM200

Payload

20kg

Power Supply

380V/50Hz/60Hz/3-phase (Others optional)

Axles

6

Cooling

Water cooling
