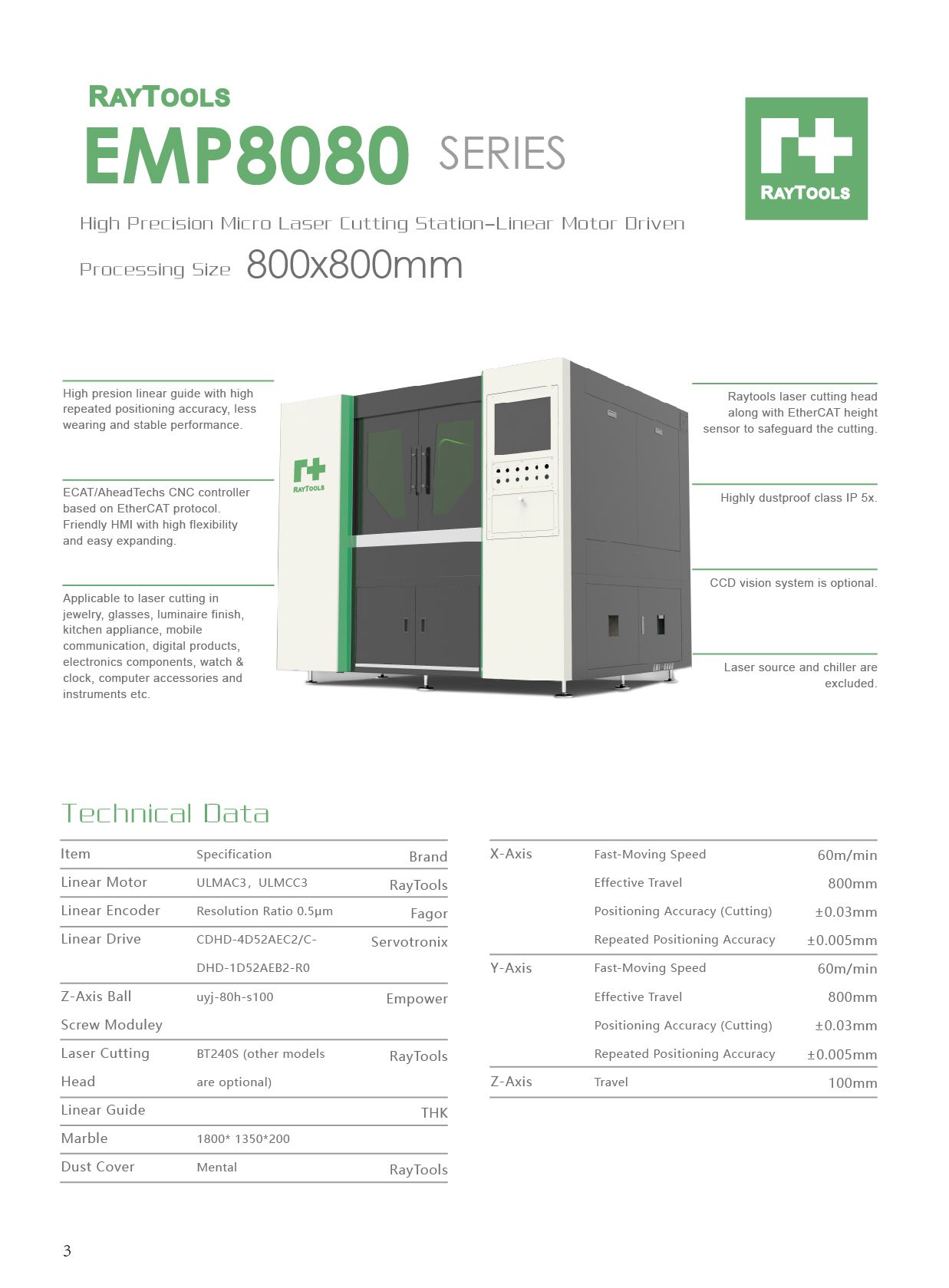

EMP8080 High Precision Micro Laser Cutting Station
Processing size 800x800mm; Linear motorized X and Y axis; CNC based on EtherCAT; Raytools cutting head.
- Features
- Technical Data
High precision linear guide with high repeated positioning accuracy, less wearing and stable performance.
ECAT/AheadTechs CNC controller based on EtherCAT protocol. Friendly HMI with high flexibility and easy expanding.
Applicable to laser cutting in jewelry, glasses, luminaire finish, kitchen appliance, mobile communication, digital products, electronics components, watch & clock, computer accessories and instruments etc.
Raytools laser cutting head along with EtherCAT height sensor to safeguard the cutting.
Highly dustproof class IP 5x.
CCD vision system is optional.
Laser source and chiller are excluded.
Item |
Specification |
Brand |
X-Axis |
Fast-Moving Speed |
60m/min | |
Linear Motor |
ULMAC3,ULMCC3 |
RayTools |
|
Effective Travel |
800mm | |
linear Encoder |
Resolution Ratio 0.5μm |
Fagor |
|
Positioning Accuracy (Cutting) |
±0.03mm | |
Linear Drive |
CDHD-4D52AEC2/CDHD-1D52AEB2-R0 |
Servotronix |
|
Repeated Positioning Accuracy |
±0.005mm | |
Z-Axis Ball Screw Module |
uyj-80h-s100 |
Empower |
|
Y-Axis |
Fast-Moving Speed |
60m/min |
Laser Cutting Head |
BT240S (other models are optional) |
RayTools |
|
|
Effective Travel |
800mm |
Linear Guide |
|
THK |
|
Positioning Accuracy (Cutting) |
±0.03mm | |
Marble |
1800* 1350*200 |
|
|
|
Repeated Positioning Accuracy |
±0.005mm |
Dust Cover |
Mental |
RayTools |
|
Z-Axis |
Travel |
100mm |
