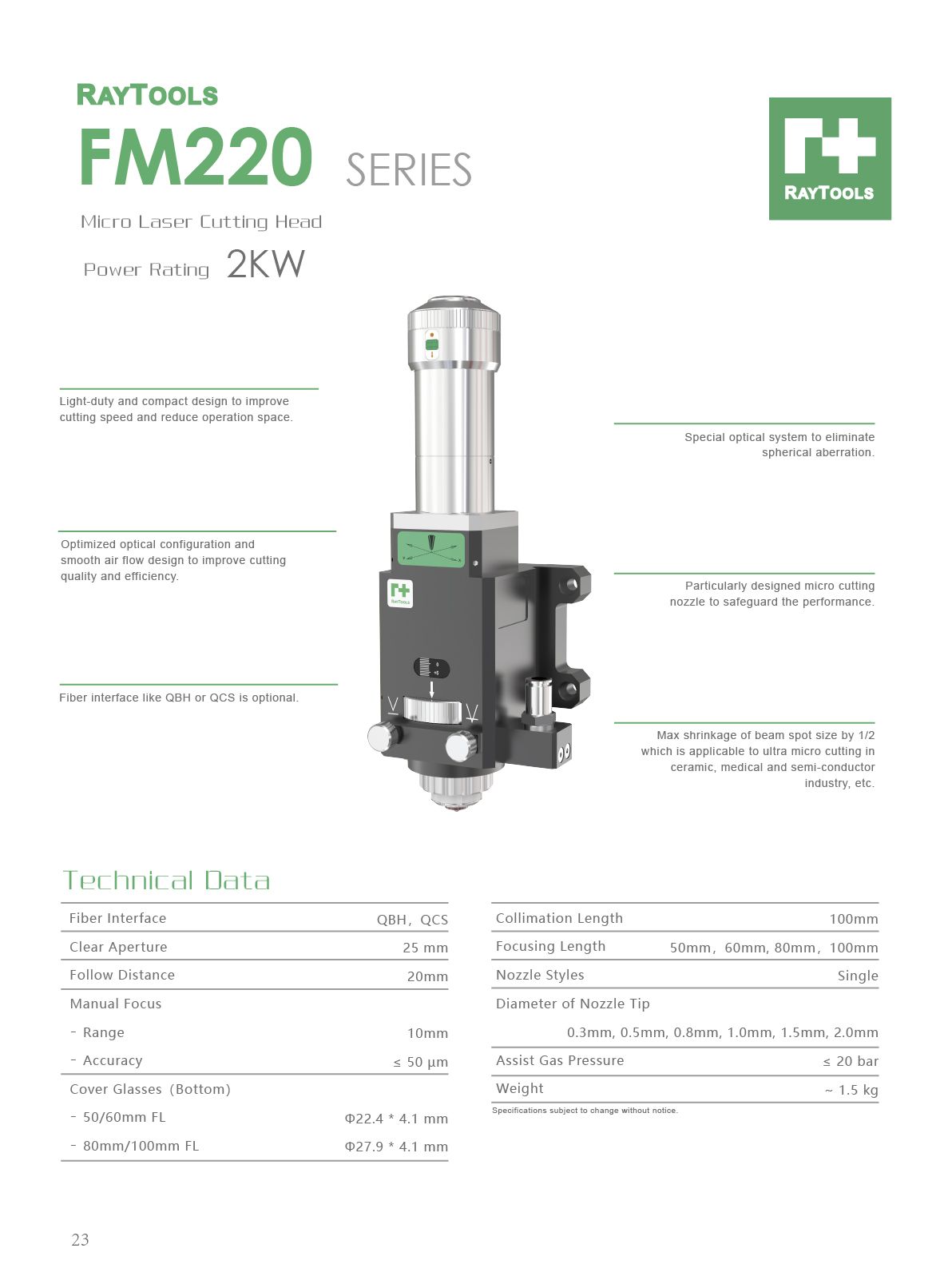

FM220 (To Replace BT220) Micro Laser Cutting Head

Power rating 500W; Ultra micro laser cutting in ceramic, medical and semi-conductor industry, etc.

  • Features
  • Technical Data
  • Light-duty and compact design to improve cutting speed and reduce operation space.

  • Optimized optical configuration and smooth air flow design to improve cutting quality and efficiency.

  • Fiber interface like QBH or QCS is optional.

  • Special optical system to eliminate spherical aberration.

  • Particularly designed micro cutting nozzle to safeguard the performance.

  • Max shrinkage of beam spot size by 1/2 which is applicable to ultra micro cutting in ceramic, medical and semi-conductor industry, etc.

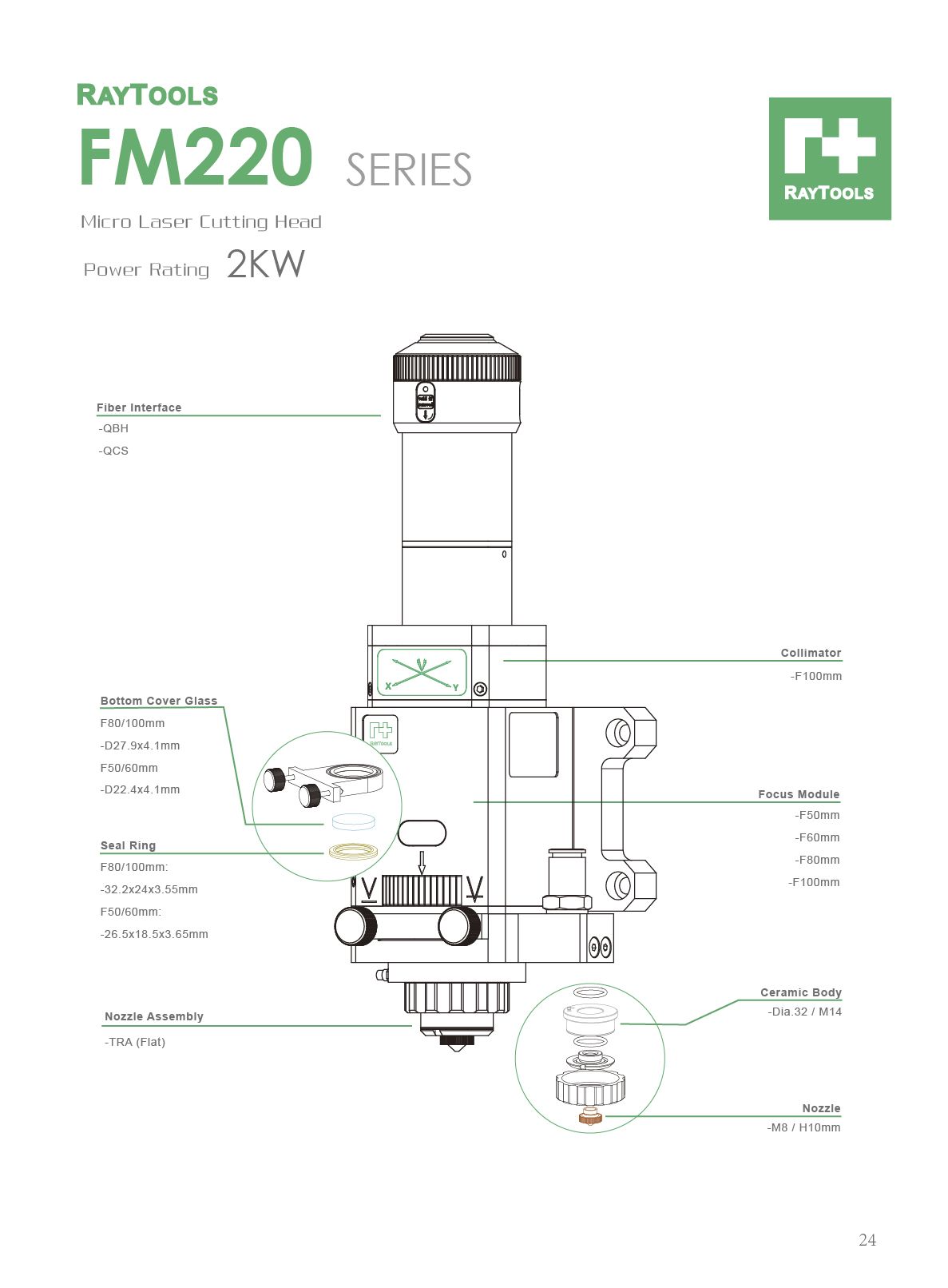

Fiber Interface

QBH , QCS

Collimation Length

100mm

Clear Aperture

25mm

Focusing Length

50mm , 80mm, 100mm

Follow Distance

20mm



Nozzle Styles

Single

Manual Focus



Diameter of Nozzle Tip



- Range

10mm



0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm,

- Accuracy

≤ 50μm

Assist Gas Pressure

≤ 20 bar

Cover Glasses (Bottom)



Weight

~ 1.5 kg

- 50mm FL

Φ22.4*4.1mm



- 80mm/100mm FL

Φ27.9*4.1mm
