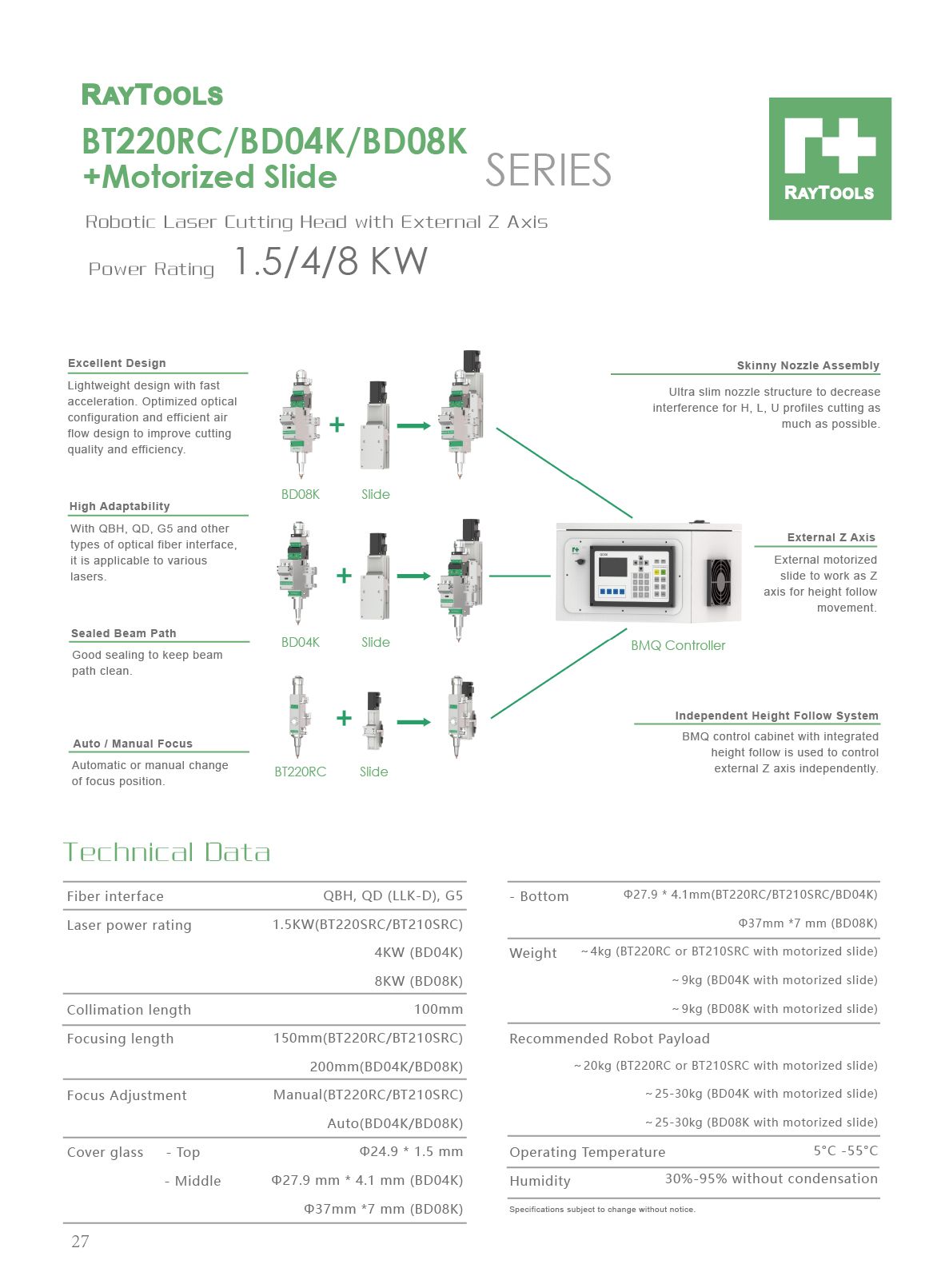

BT220RC (To Replace BT210SRC) Robot Laser Cutting Head
Power rating 1.5KW; Light-duty robot cutting along with external motorized slide and BMQ control cabinet.
- Features
- Technical Data
Light-duty and compact design to decline payload of robot and improve cutting speed & quality.
Optimized optical configuration and smooth air flow design to improve cutting quality and efficiency.
Skinny nozzle structure to reduce interference to workpiece.
Various fiber interfaces like QBH, QCS to match different lasers.
|
Fiber Interface |
QBH , QCS |
Nozzle Styles |
Single , Double , Custom | |
|
Clear Aperture |
25mm |
Diameter of Nozzle Tip |
| |
|
Cover Glasses |
|
|
0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm | |
|
- Collimation Side (Top) |
Φ24.9*1.5mm |
Assist Gas Pressure |
≤ 20 bar | |
|
- Focusing Side (Bottom) |
Φ27.9*4.1mm |
|
Weight |
~ 1.8 kg |
|
Collimation Length |
100mm |
|
| |
|
Focus Length |
150mm |
| ||
