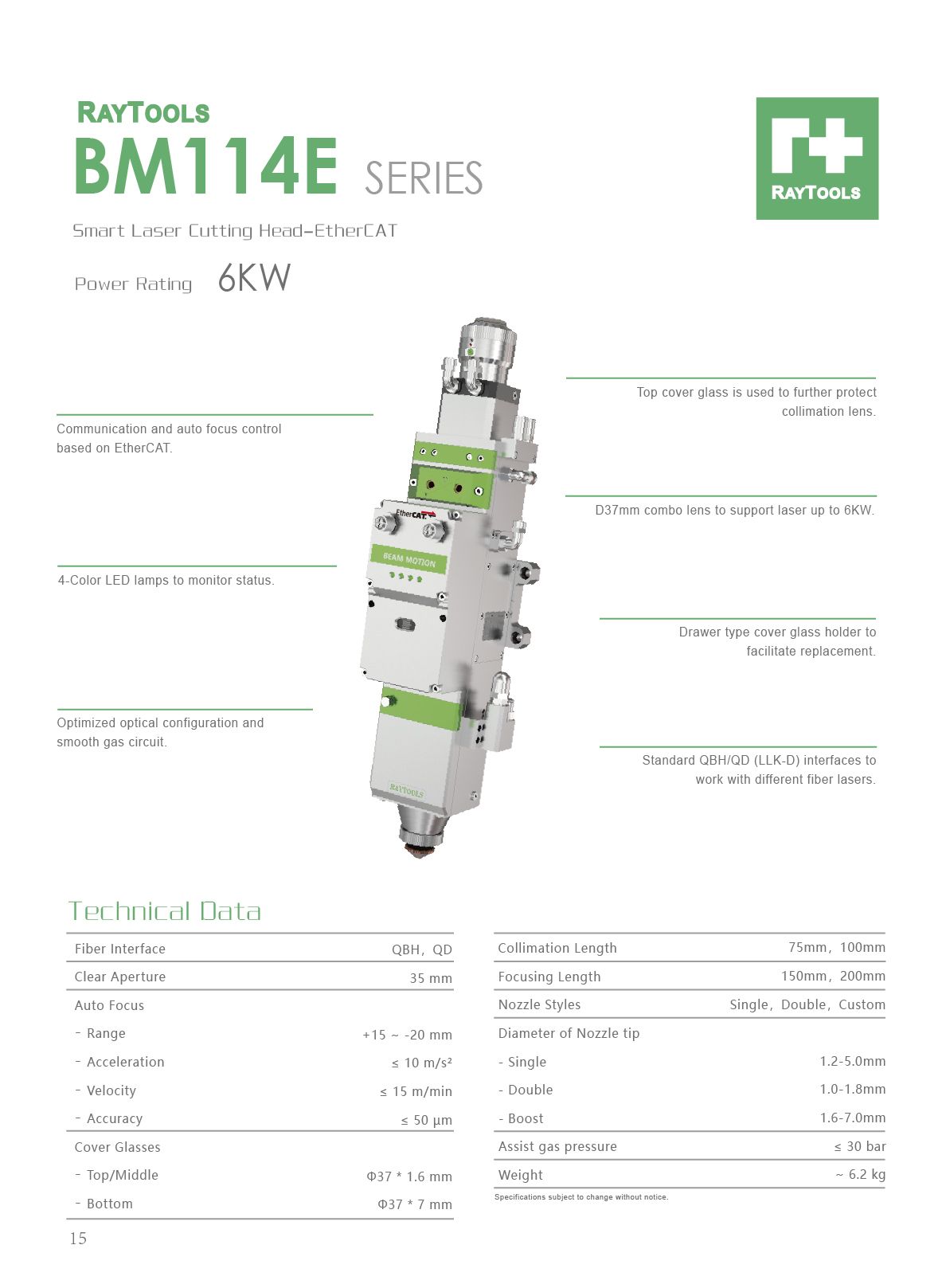

BM114E EtherCAT Smart Laser Cutting Head

Power rating 6KW; Smart sensor technology with real-time status monitoring; EtherCAT protocol.

  • Features
  • Technical Data
  • Communication and auto focus control based on EtherCAT.

  • 4-Color LED lamps to monitor status.

  • Optimized optical configuration and smooth gas circuit.

  • D37mm combo lens to support laser up to 6KW.

  • Top cover glass is used to further protect collimation lens.

  • Drawer type cover glass holder to facilitate replacement.

  • Standard QBH/QD (LLK-D) interfaces to work with different fiber lasers.

Fiber Interface

QBH , QD

Collimation Length

75mm, 100mm

Clear Aperture

35mm

Focusing Length

150mm , 200mm

Auto Focus



Nozzle Styles

Single , Double , Custom

- Range

+15 ~ -20mm

Diameter of Nozzle Tip

- Acceleration

≤10m/s²



0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm,

- Velocity

≤15m/min



3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

- Accuracy

≤ 50μm

Assist Gas Pressure

≤ 30 bar

Cover Glasses



Weight

~ 6.2 kg

- Top

Φ38.1*1.6mm

- Bottom

Φ37*7mm
