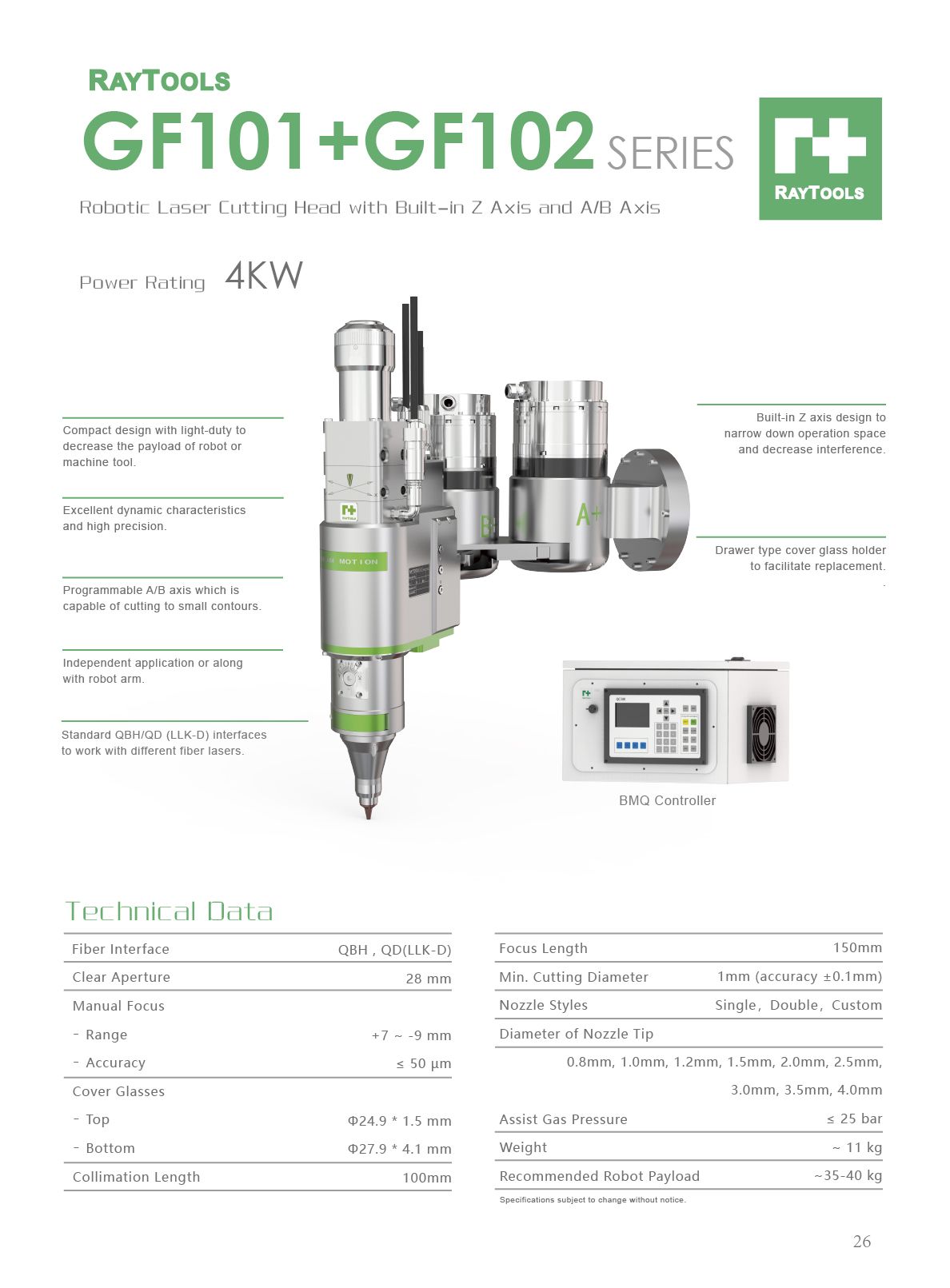

GF101 (To Replace BM100)+GF102 (To Replace BM102) Robot Laser Cutting Head

Power rating 4KW; Robot cutting system with capacity to cut small contours.

  • Features
  • Technical Data
  • Compact design with light-duty to decrease the payload of robot or machine tool.

  • Excellent dynamic characteristics and high precision.

  • Programmable A/B axis which is capable of cutting to small contours.

  • Independent application or along with robot arm.

  • Built-in Z axis design to narrow down operation space and decrease interference.

  • Drawer type cover glass holder to facilitate replacement.

  • Standard QBH/QD (LLK-D) interfaces to work with different fiber lasers.

Fiber Interface

QBH , QD(LLK-D)

Collimation Length

100mm

Clear Aperture

28mm

Focus Length

150mm

Manual Focus



Nozzle Styles

Single , Double, Custom

- Range

+7 ~ -9mm

Diameter of Nozzle Tip

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

- Accuracy

≤ 50μm



Min. Cutting Diameter

1mm (accuracy ±0.1mm)

Cover Glasses





Assist Gas Pressure

≤ 25 bar

- Top

Φ24.9*1.5mm

Weight

~ 11 kg

- Bottom

Φ27.9*4.1mm
