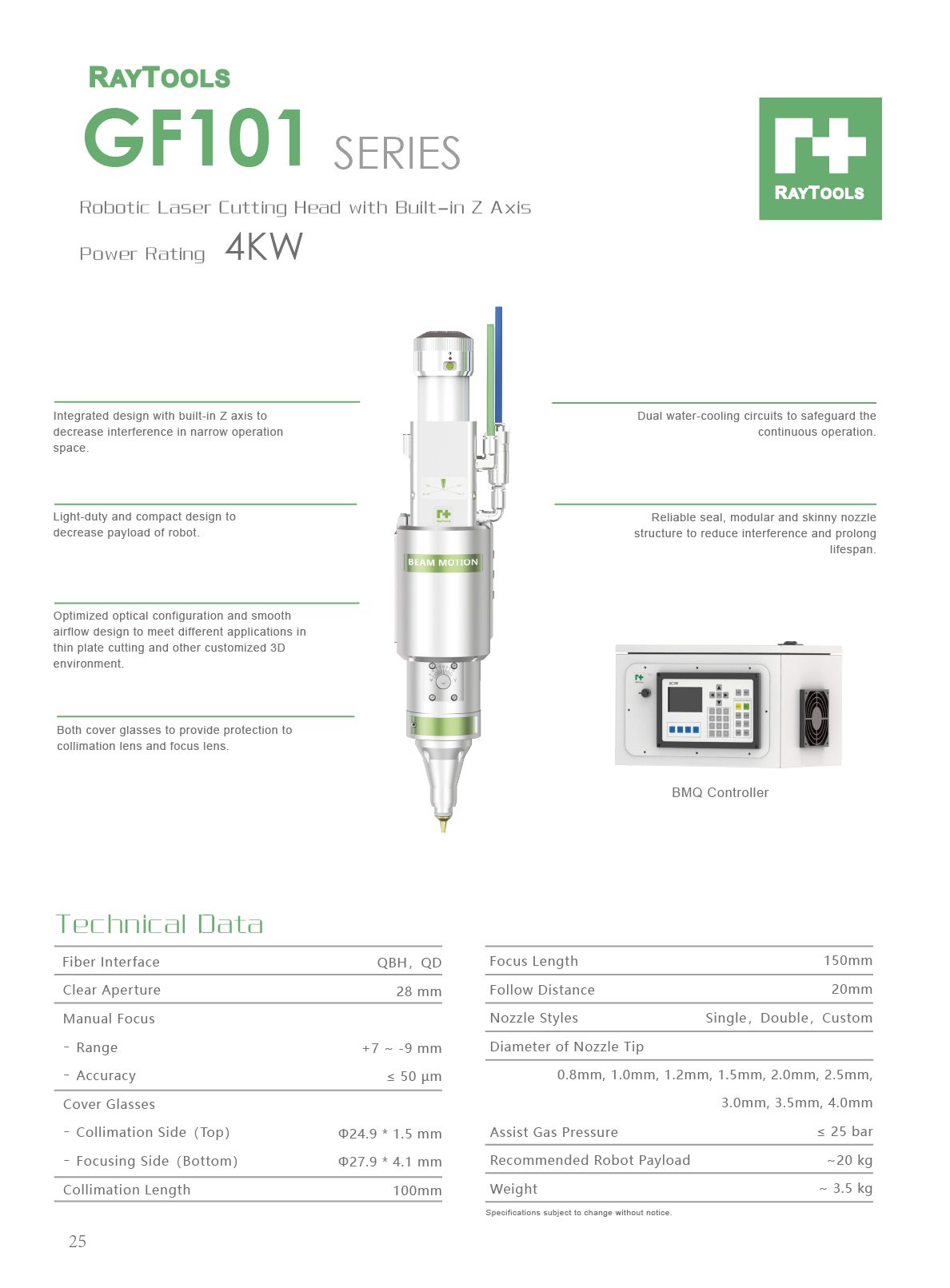

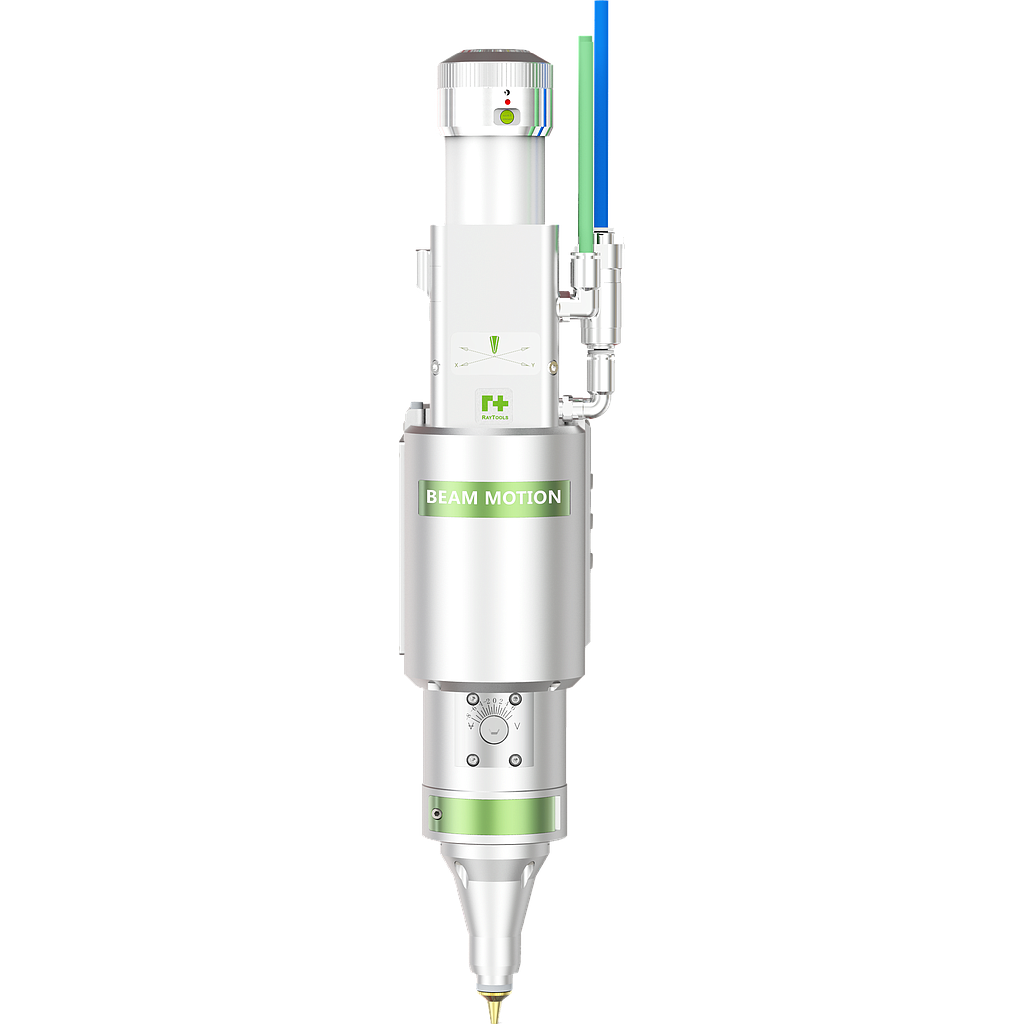

GF101 (To Replace BM100) All-In-One Robot Laser Cutting Head

Power rating 4KW; All-In-One design with built-in Z axis for robot cutting.

  • Features
  • Technical Data
  • Integrated design with built-in Z axis to decrease interference in narrow operation space.

  • Light-duty and compact design to decrease payload of robot.

  • Dual water-cooling circuits to safeguard the continuous operation.

  • Optimized optical configuration and smooth airflow design to meet different applications in thin plate cutting and other customized 3D environment.

  • Reliable seal, modular and skinny nozzle structure to reduce interference and prolong lifespan.

  • Both cover glasses to provide protection to collimation lens and focus lens.

Fiber Interface

QBH , QD

Collimation Length

100mm

Clear Aperture

28mm

Focus Length

150mm

Manual Focus





Follow Distance

20mm

- Range

+7 ~ -9mm

Nozzle Styles

Single , Double, Custom

- Accuracy

≤ 50μm

Diameter of Nozzle Tip

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

Cover Glasses





Assist Gas Pressure

≤ 25 bar

- Collimation Side (Top)

Φ24.9*1.5mm



Weight

~ 3.5 kg

- Focusing Side (Bottom)

Φ27.9*4.1mm
