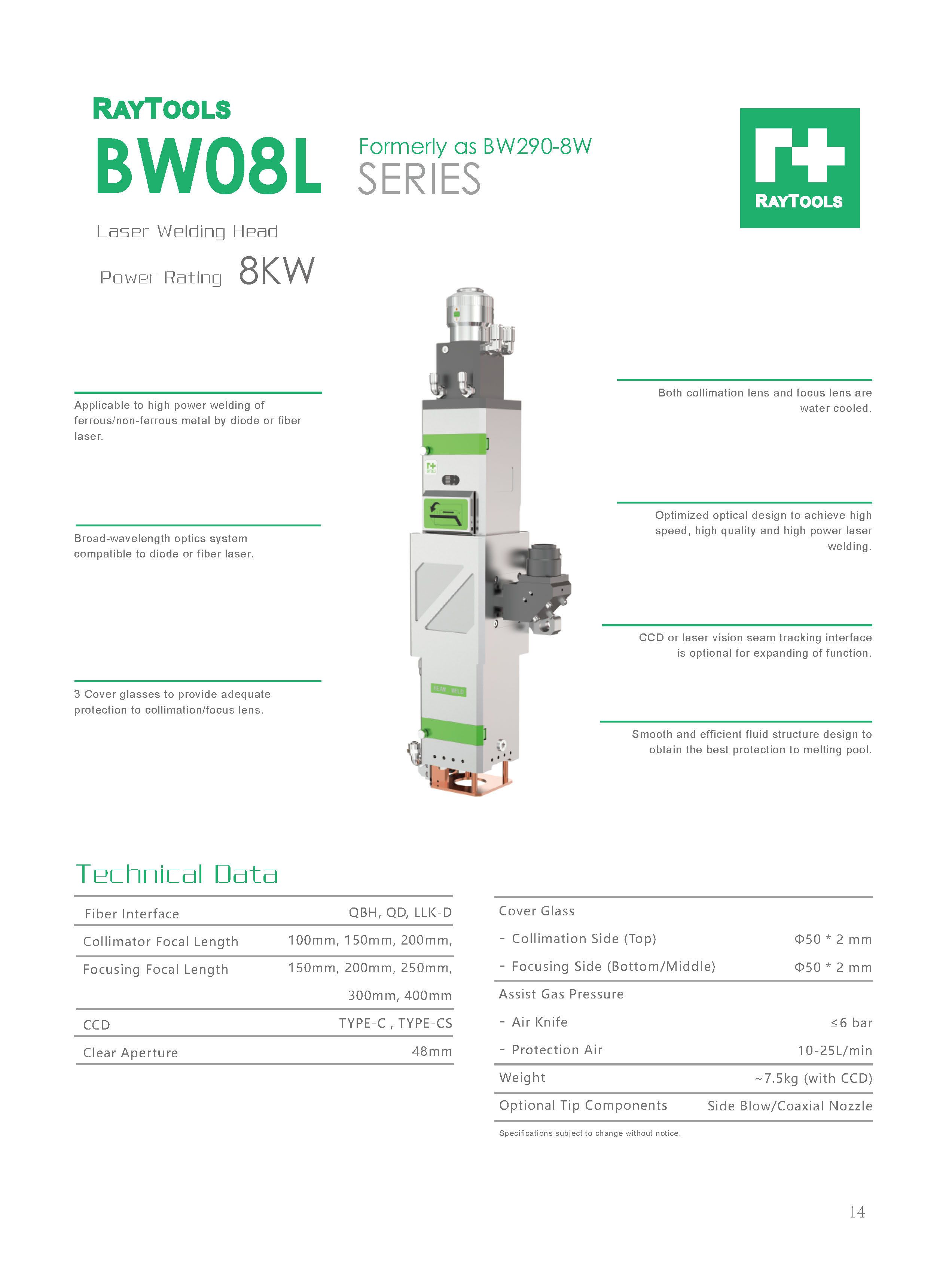

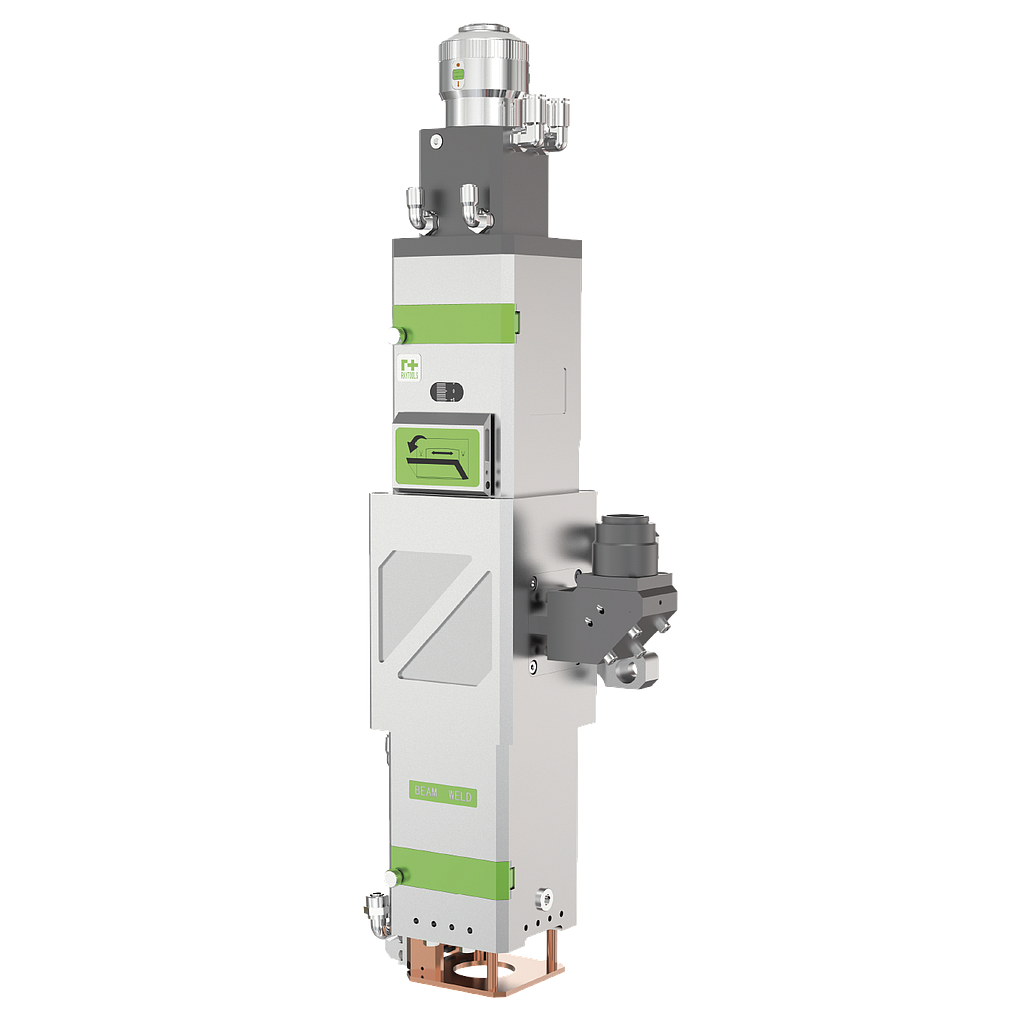

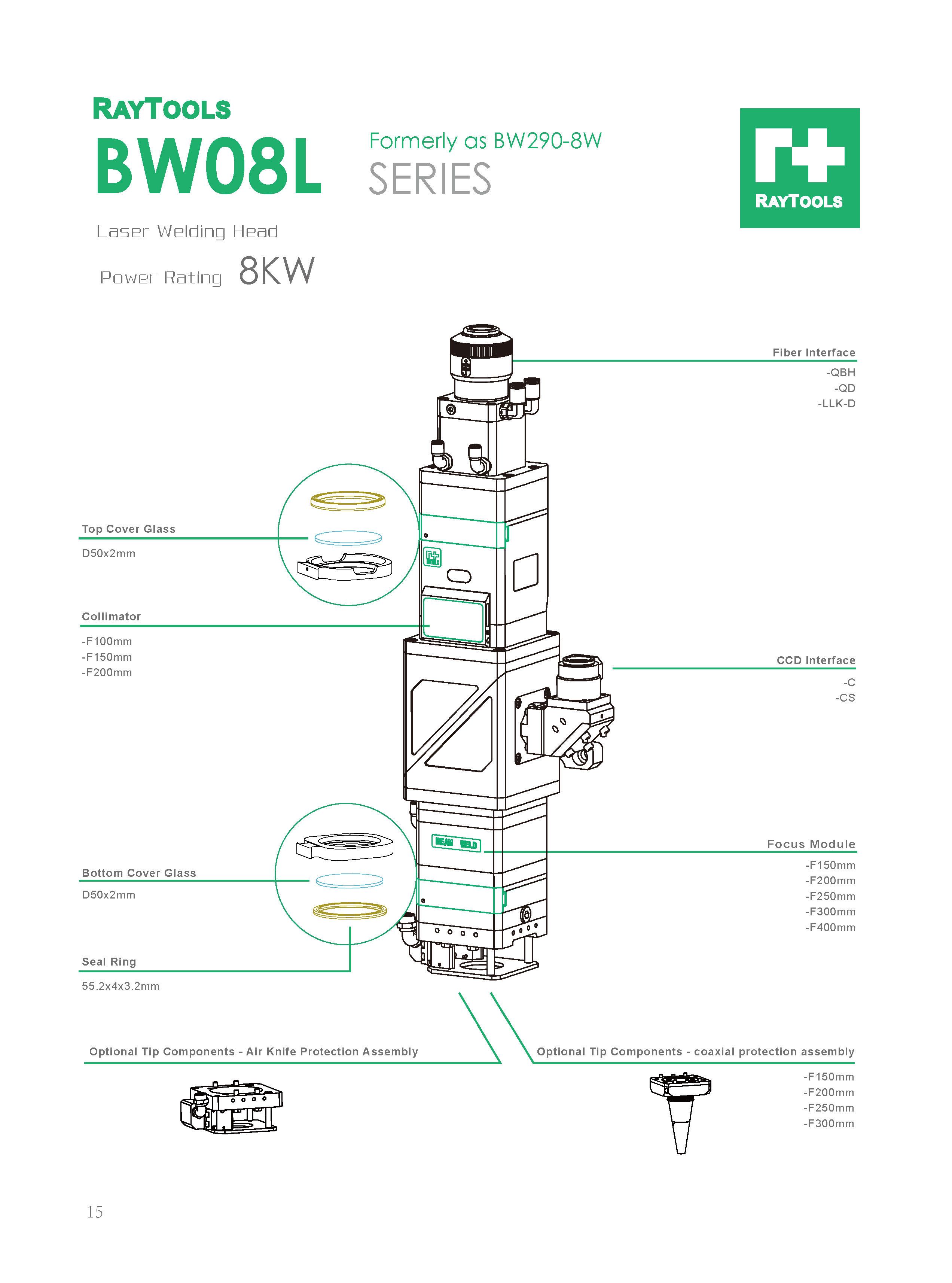

BW290 (To Replace BW250) Laser Welding Head

Power rating 8KW; High power laser welding. Fiber/Diode version to match fiber laser or direct diode laser.

  • Features

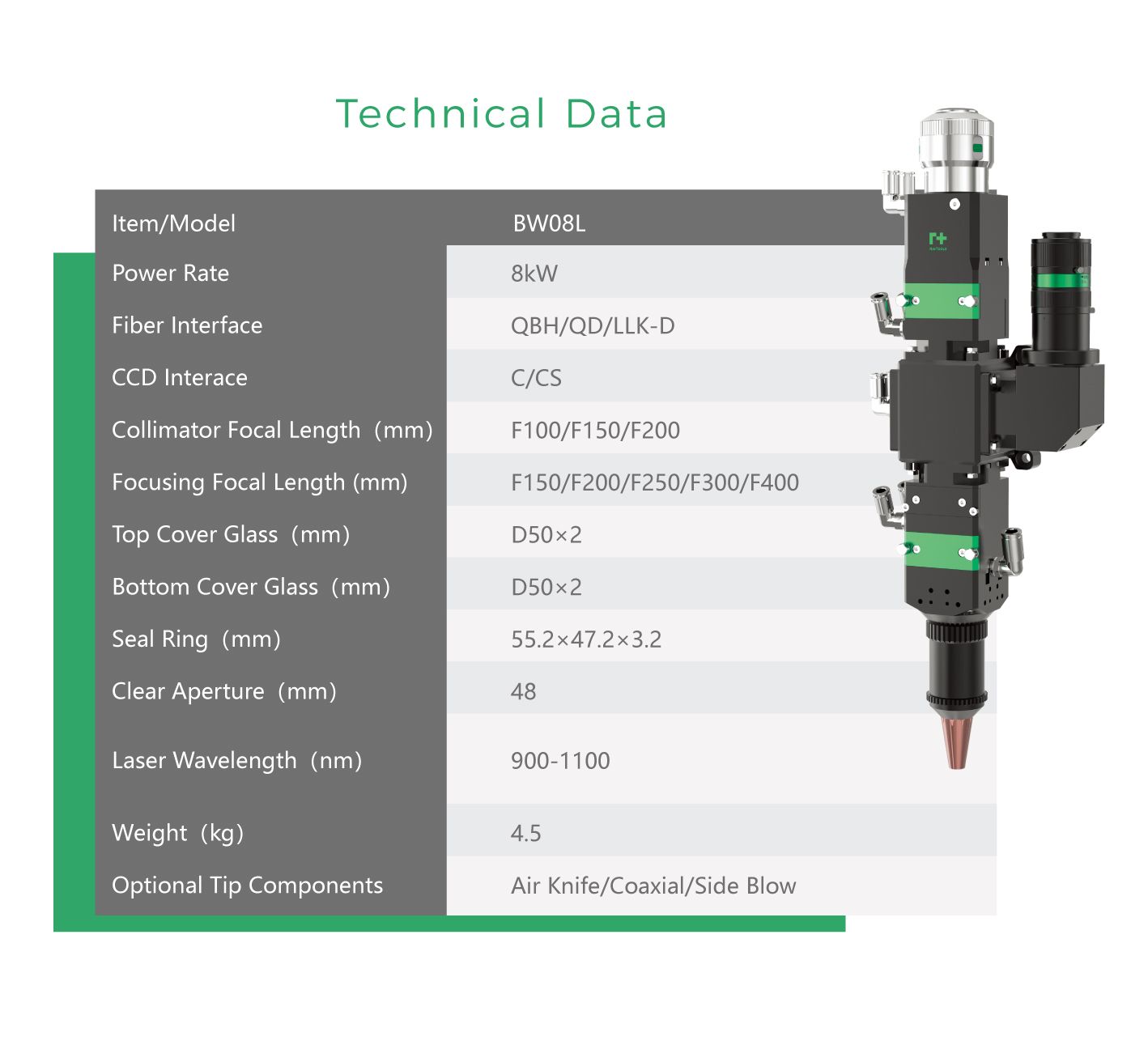

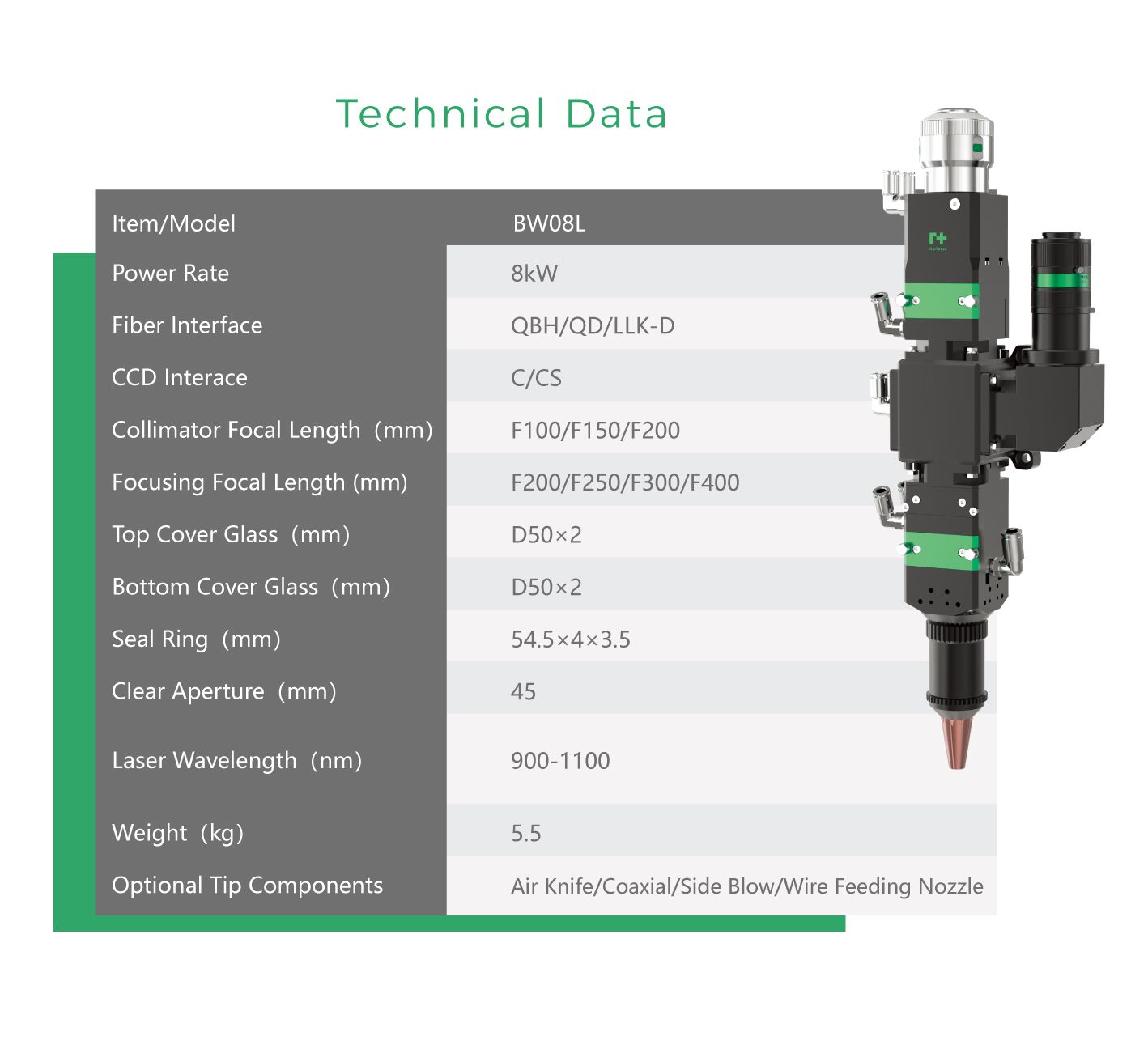

  • Technical Data
  • Fiber/Diode version is optional to match various fiber lasers or diode lasers.

  • Dual-walvelength (fiber laser 4KW and diode laser 8KW) optical configuration is optional.

  • 3 Cover glasses to provide adequate protection to collimation/focus lens.

  • Both collimation lens and focus lens are water cooled.

  • Optimized optical design to achieve high speed, high quality and high power laser welding.

  • CCD or laser vision seam tracking interface is optional for expanding of function.

  • Smooth and efficient fluid structure design to obtain the best protection to melting pool.

Diode Version





Cover Glass



- Fiber Interface

QBH, QD



- Collimation Side (Top)

Φ50*2mm

- Collimator Focal Length

100mm



- Focusing Side (Bottom/Middle)

Φ50*2mm

- Focusing Focal Length

100mm, 150mm, 200mm, 250mm, 300mm



Assist Gas Pressure



Fiber Version





- Air Knife

≤6 bar

- Fiber Interface

QBH, QD



- Protection Air

10-25L/min

- Collimator Focal Length

100mm, 150mm



Weight

~7.5kg (with CCD)

- Focusing Focal Length

200mm, 250mm, 300mm



Optional Tip Components

Side Blowing Nozzle

Clear Aperture

48mm





CCD

TYPE-C , TYPE-CS
