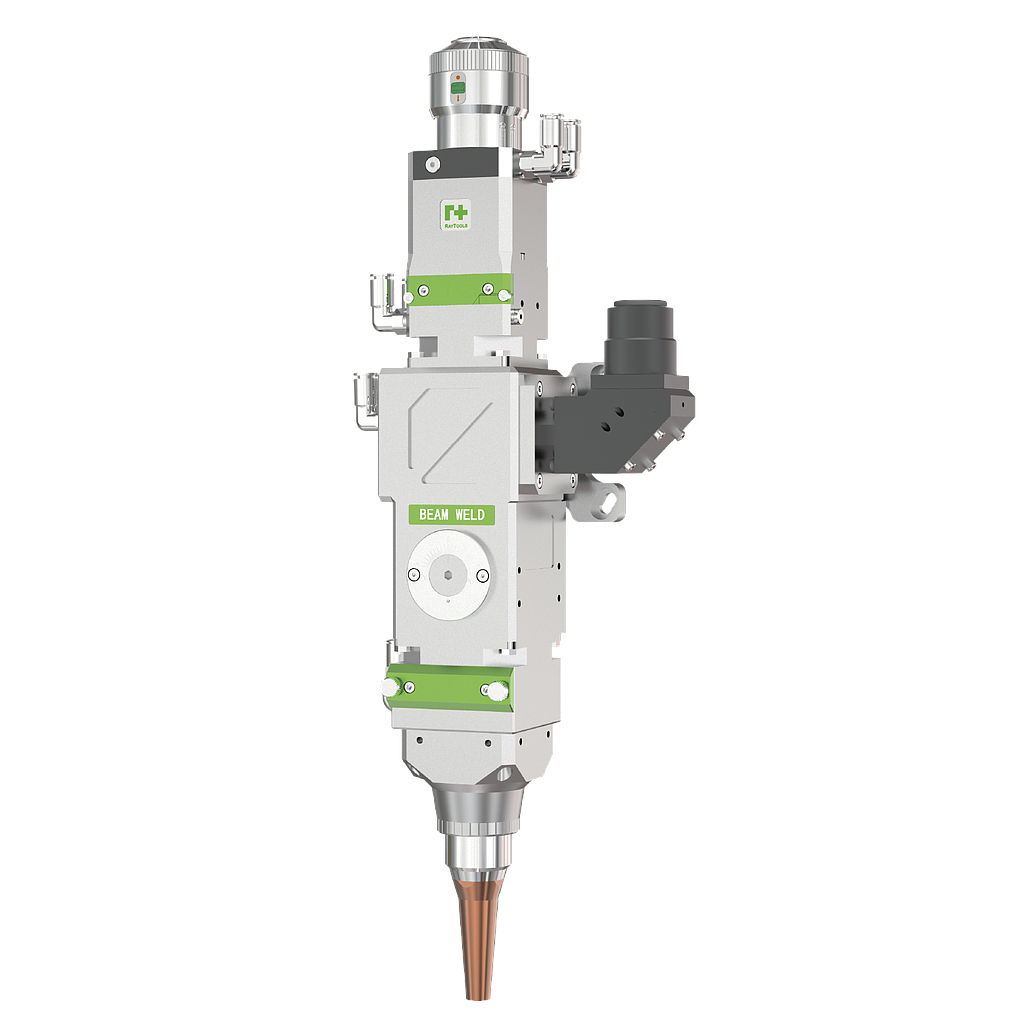

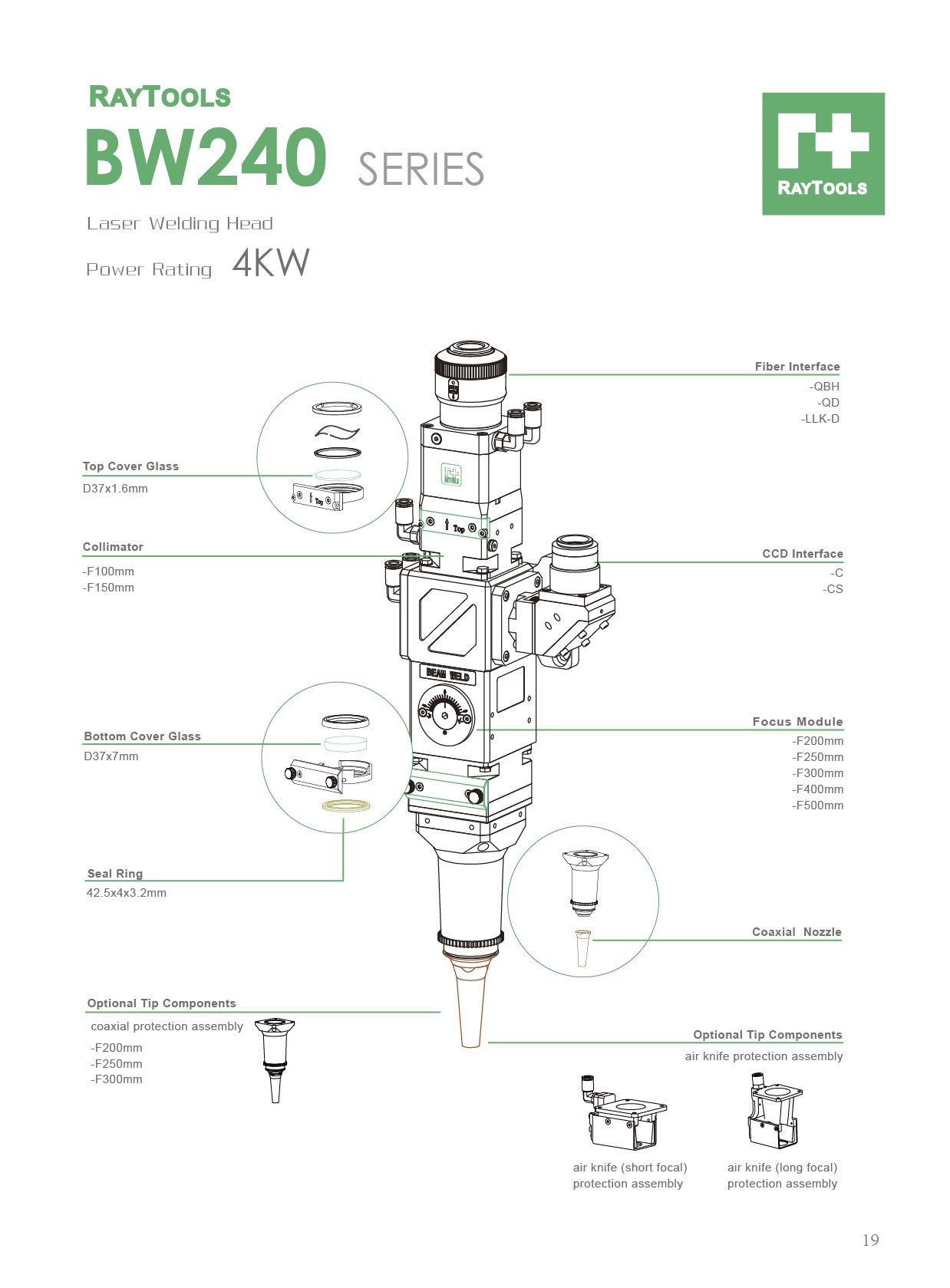

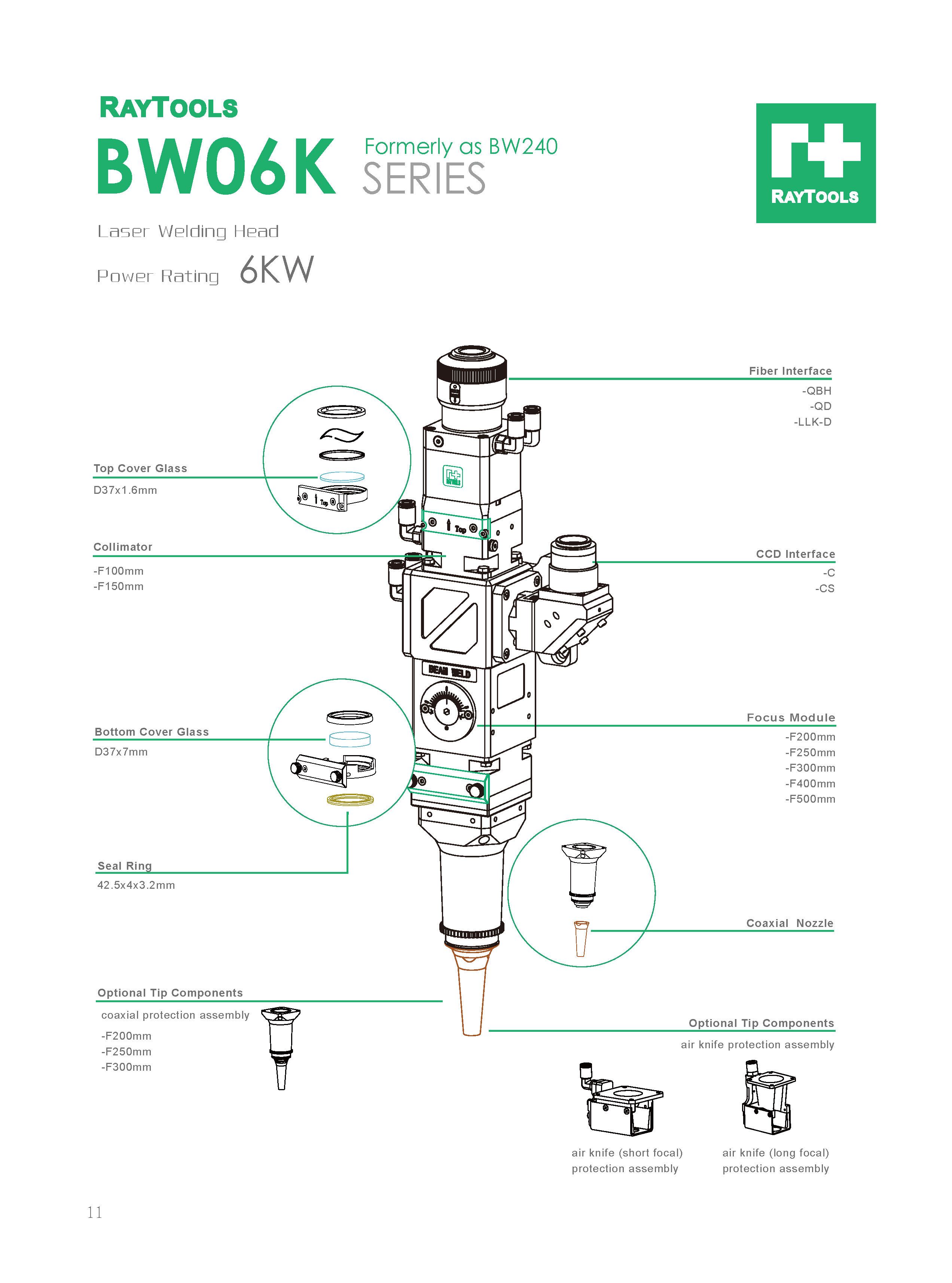

BW240 Laser Welding Head

Power rating 4KW; Medium power laser welding;

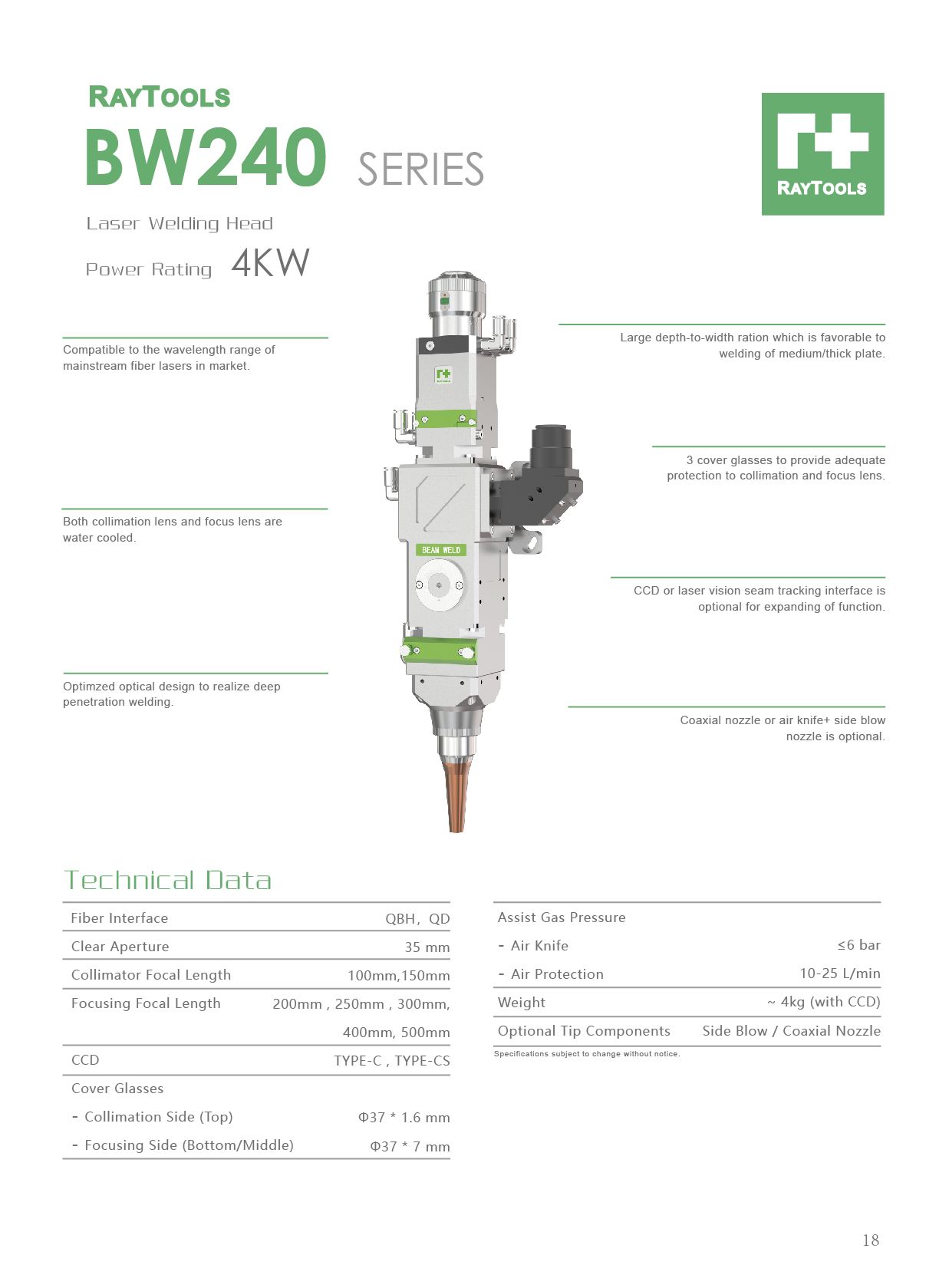

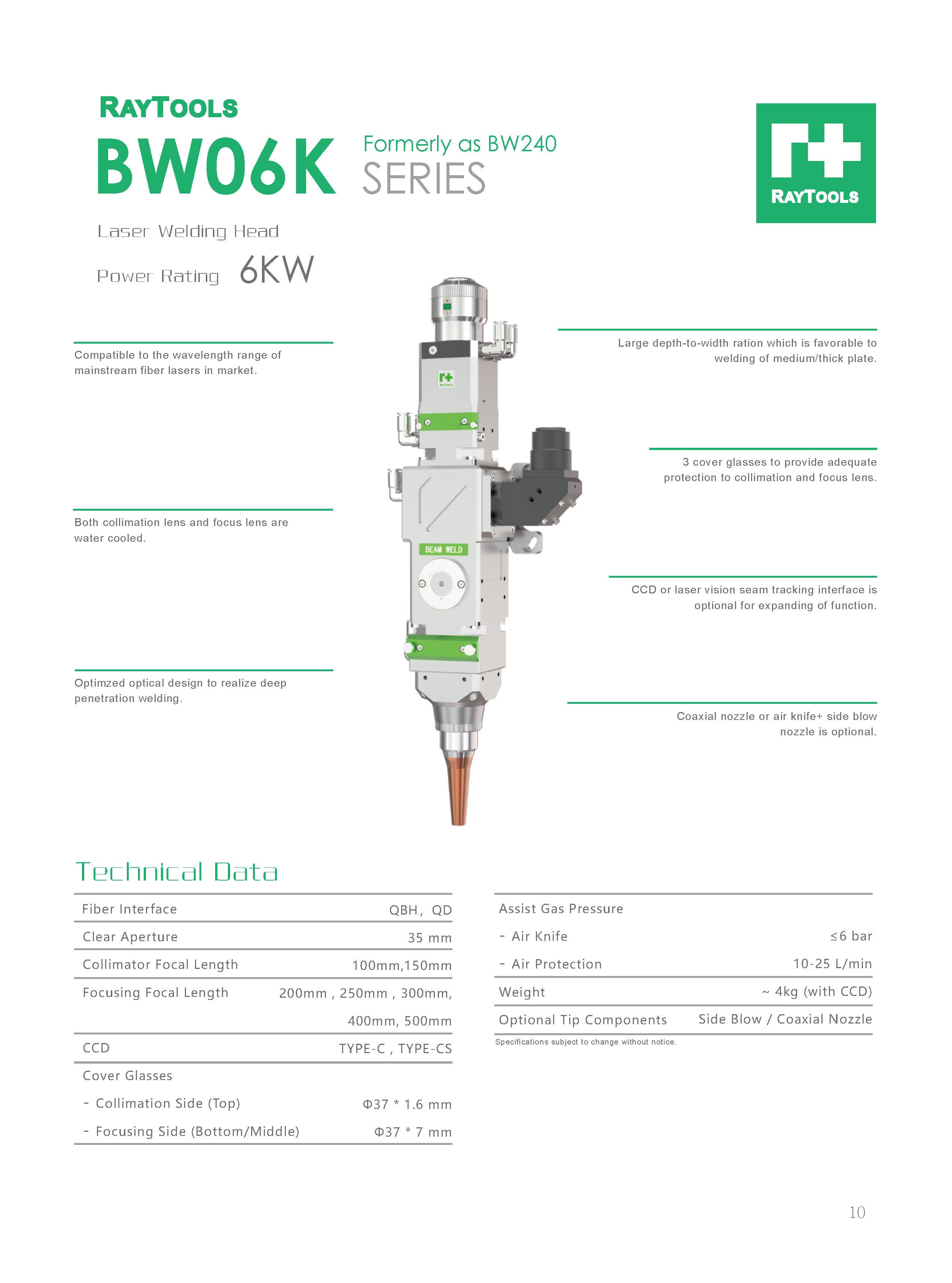

  • Features
  • Technical Data
  • Compatible to the wavelength range of mainstream fiber lasers in market.

  • Both collimation lens and focus lens are water cooled.

  • Optimzed optical design to realize deep penetration welding.

  • Large depth-to-width ration which is favorable to welding of medium/thick plate.

  • 3 cover glasses to provide adequate protection to collimation and focus lens.

  • CCD or laser vision seam tracking interface is optional for expanding of function.

  • Coaxial nozzle or air knife+ side blow nozzle is optional.

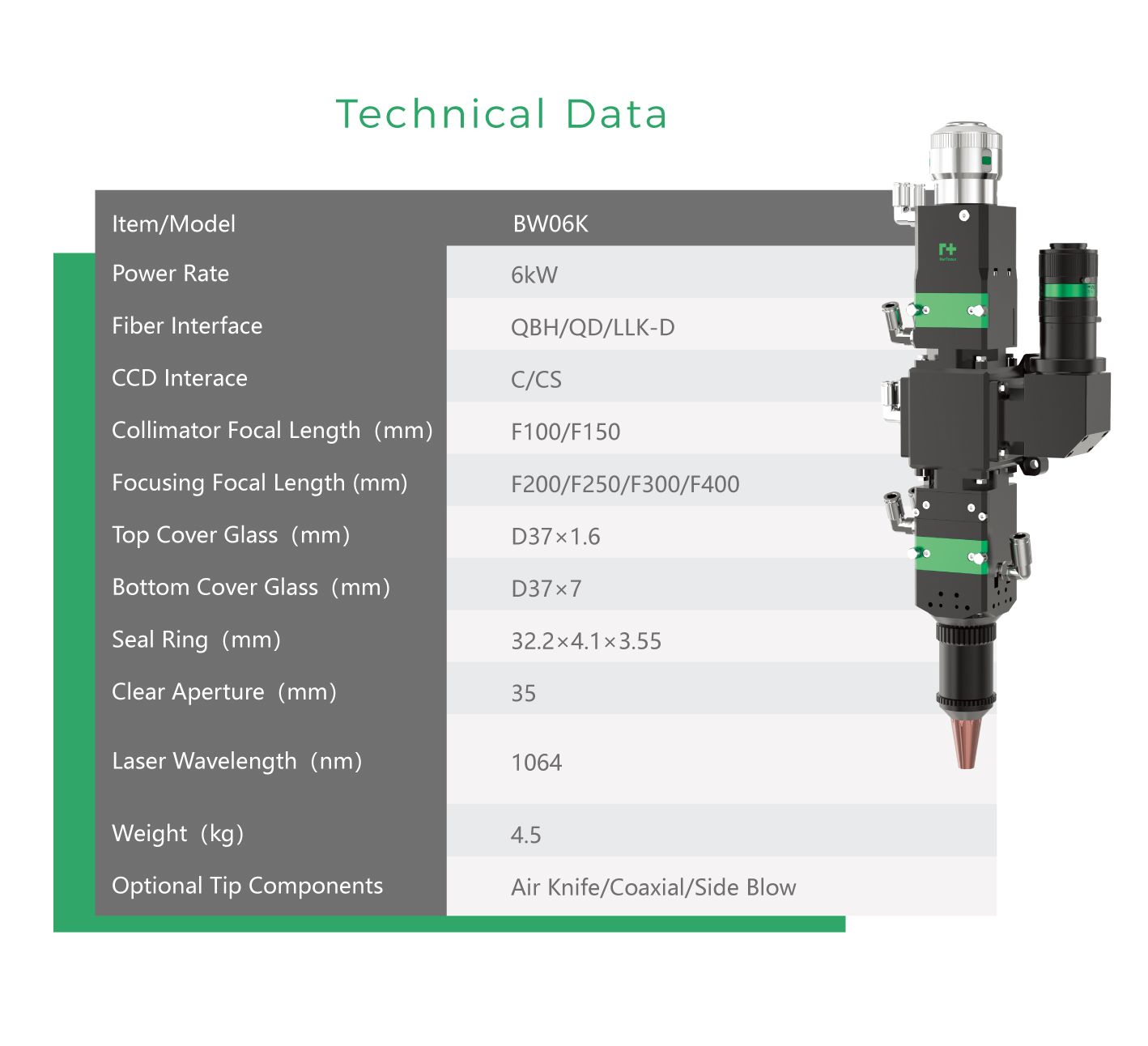

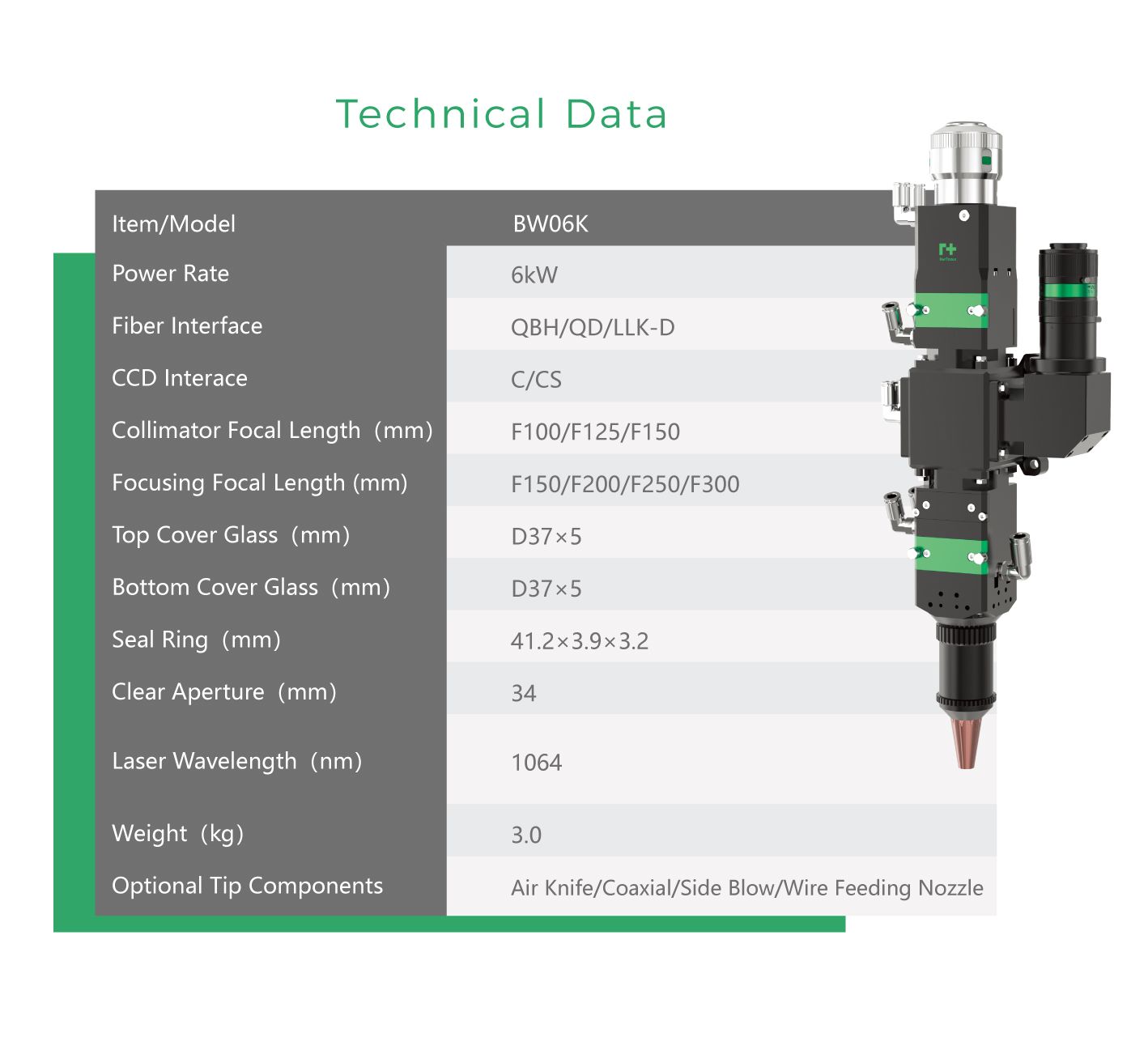

Fiber Interface

QBH , QD

Assist Gas Pressure

Clear Aperture

35mm



- Air Knife

≤6 bar

Collimator Focal Length

100mm



- Protection Air

10-25L/min

Focusing Focal Length

200mm , 250mm , 300mm, 400mm , 500mm



Weight

~ 4kg (with CCD)

CCD

TYPE-C , TYPE-CS



Optional Tip Components

Side Blow / Coaxial Nozzle

Cover Glass







- Collimation Side (Top)

Φ30*1.5mm





- Focusing Side (Bottom/Middle)

Φ38*2mm
