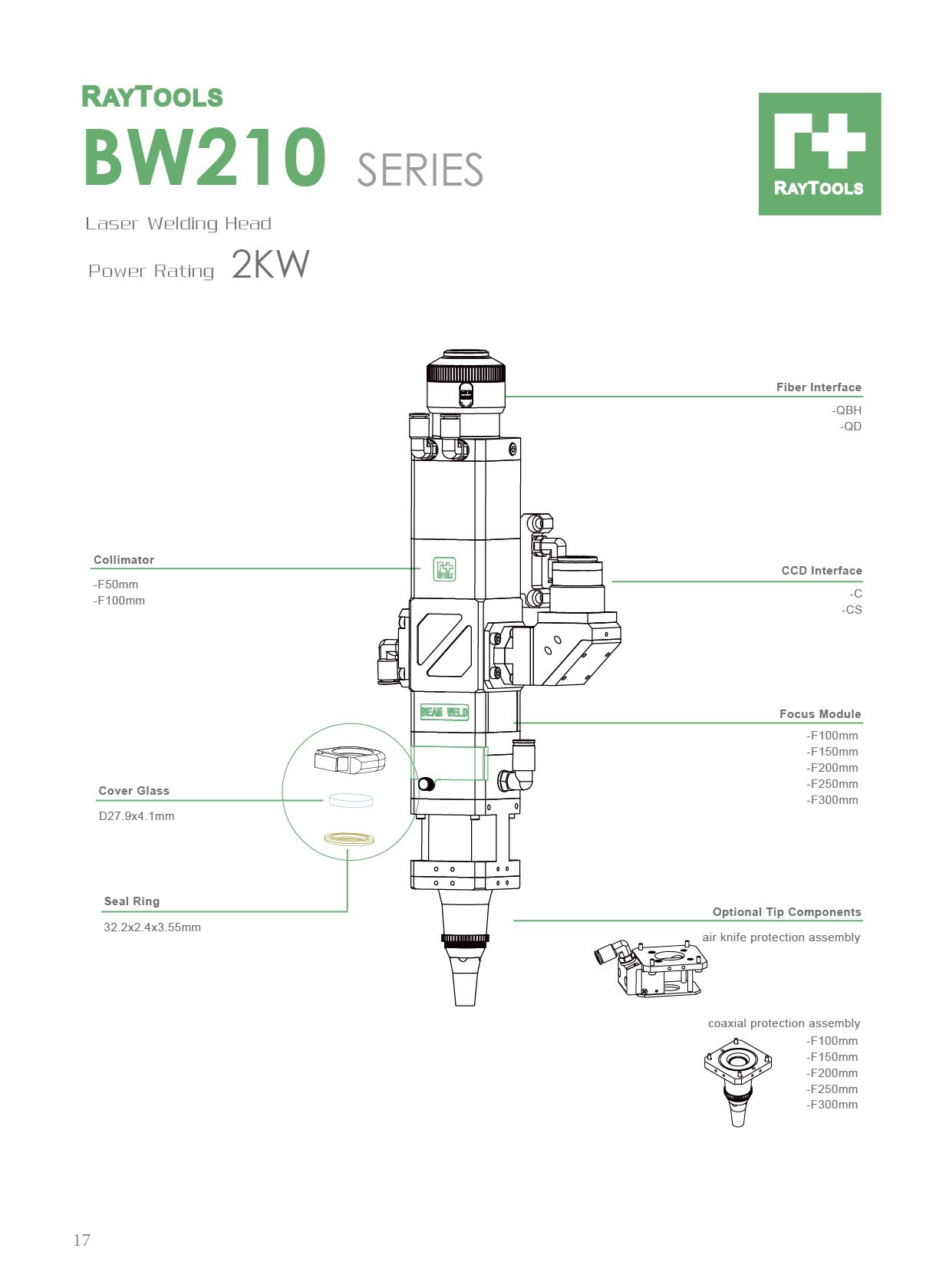

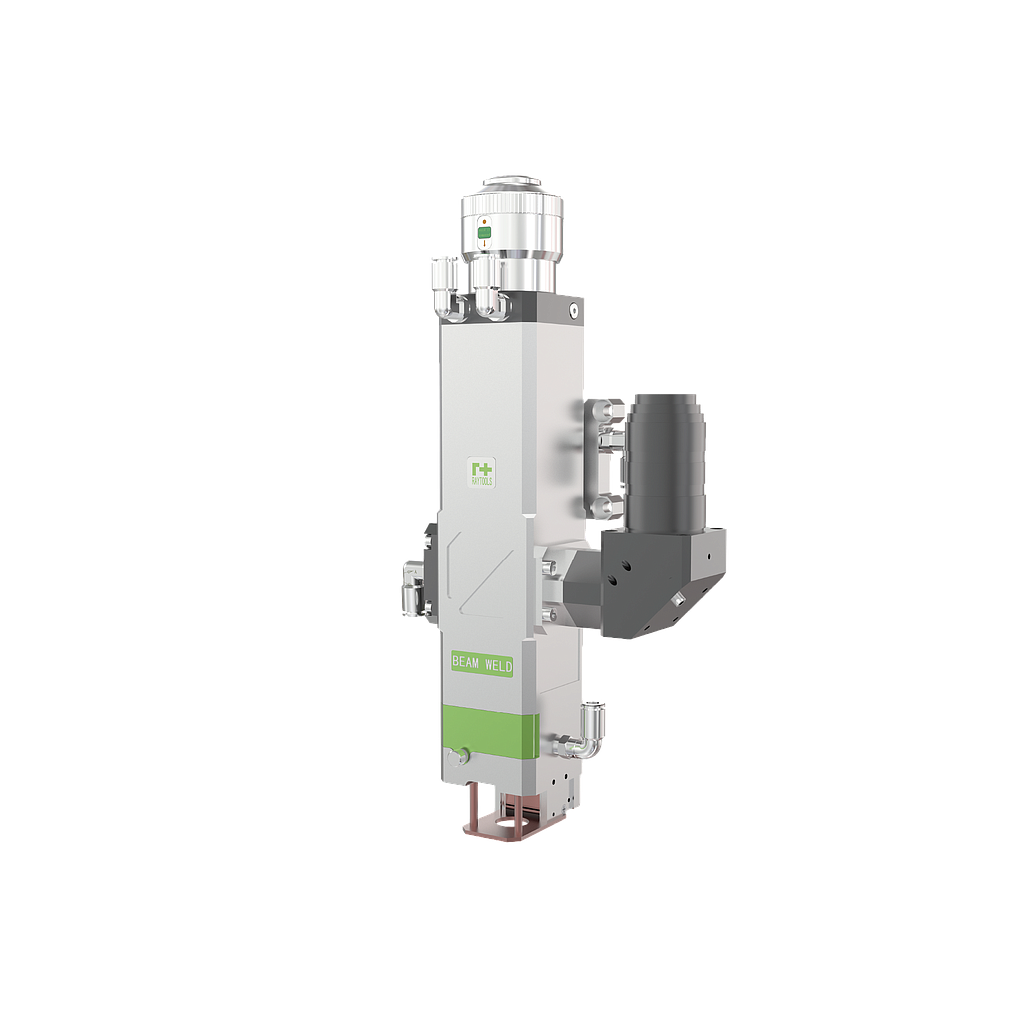

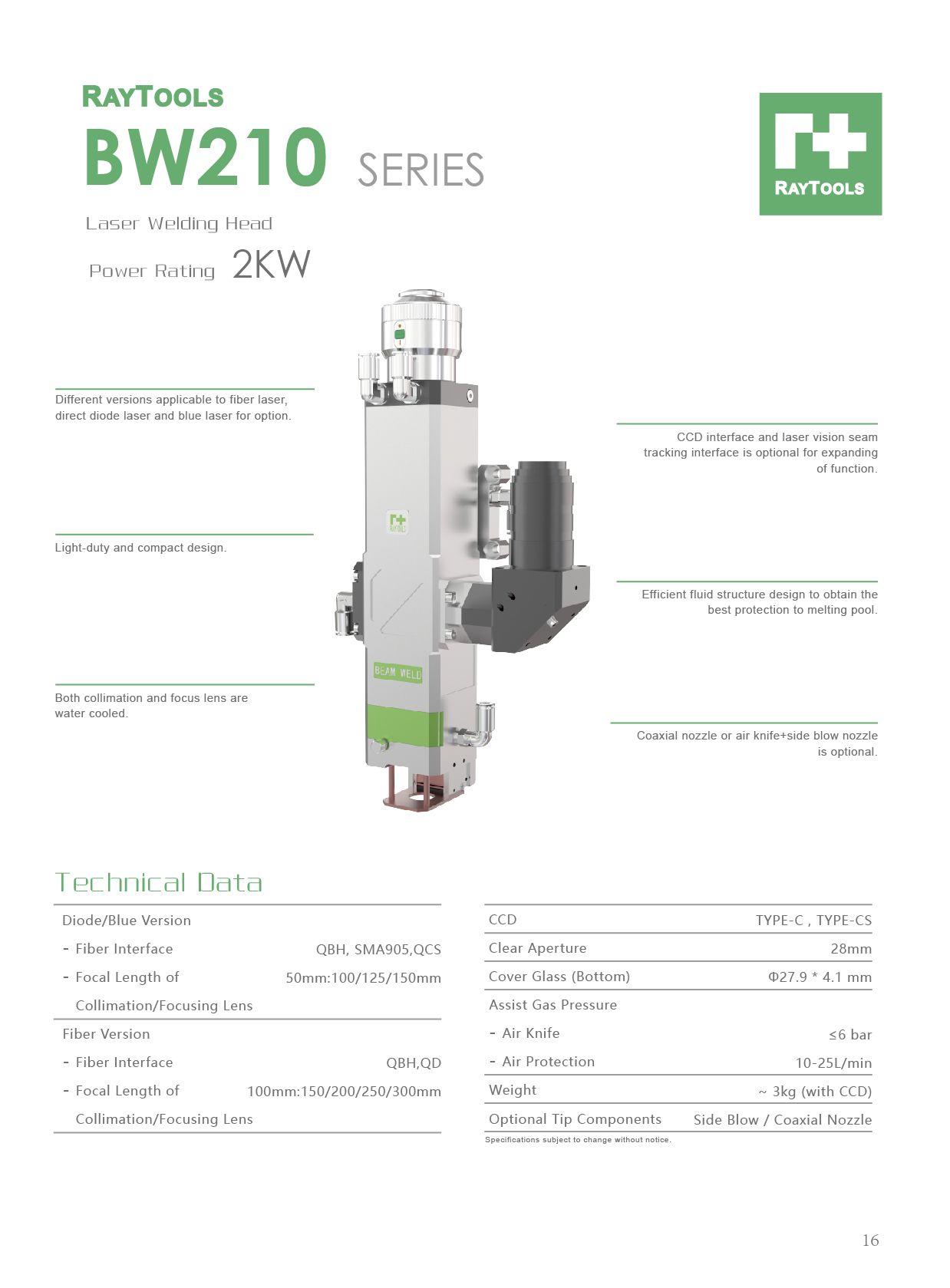

BW210 Laser Welding Head
Power rating 1.5KW; Low power laser welding; Fiber/Diode/Blue version to match fiber laser, direct diode laser or blue laser.
- Features
- Technical Data
Different versions applicable to fiber laser, direct diode laser and blue laser for option.
Light-duty and compact design.
Both collimation and focus lens are water cooled.
CCD interface and laser vision seam tracking interface is optional for expanding of function.
Efficient fluid structure design to obtain the best protection to melting pool.
Coaxial nozzle or air knife+side blow nozzle is optional.
|
WD-Diode/Blue Version
|
Assist Gas Pressure
| |||
|
- Fiber Interface
|
QBH, SMA905
|
|
- Air Knife
|
≤6 bar
|
|
- Focal Length of Collimation/Focusing Lens
|
50mm:100/125/150mm
|
|
- Air Protection
|
10-25L/min
|
|
WF-Fiber Version
|
|
|
Weight
|
~ 2.6kg (with CCD)
|
|
- Fiber Interface
|
QBH
|
|
Optional Tip Components
|
Side Blow / Coaxial Nozzle
|
|
- Focal Length of Collimation/Focusing Lens
|
100mm:150/200/250/300mm
|
|
| |
|
CCD
|
TYPE-C , TYPE-CS
|
|
| |
|
Clear Aperture
|
26mm
|
| ||
|
Cover Glass (Bottom)
|
Φ24.9*1.5mm
|
|
| |
