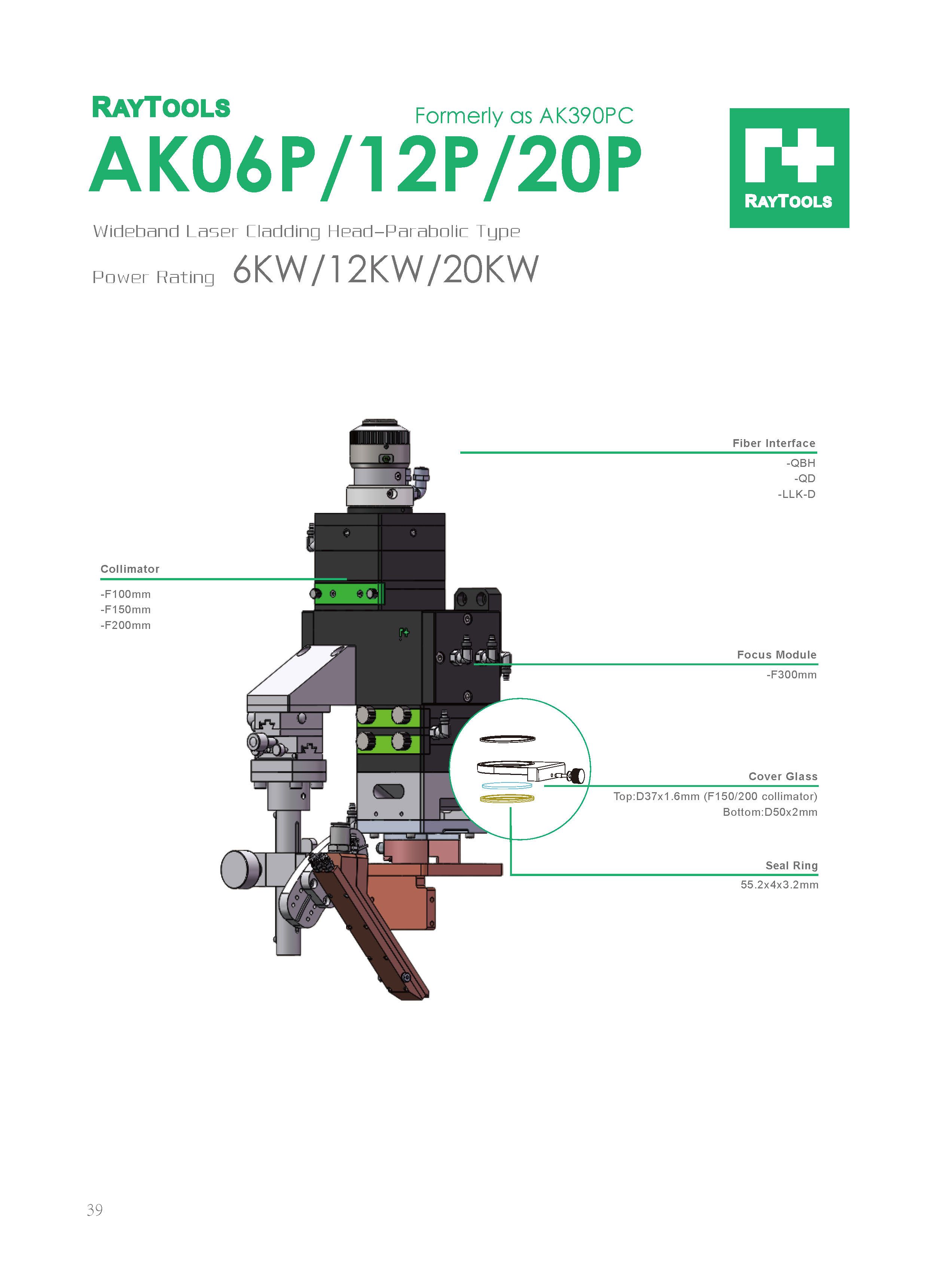

AK390PC Wideband Laser Cladding Head

Power rating 20KW; Wideband powder cladding; Parabolic optics system.

  • Features
  • Technical Data
  • Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.

  • Dual water circuits design to prolong lifespan of head.

  • A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.

  • Wideband powder feeding mechanism is fixed to conduct wideband cladding.

  • With a special integrated mirror to conduct rectangular beam spot to work along with wideband powder feeding mechanism for high efficiency cladding.

  • Different integrated mirrors in size for option to achieve a variety of beam spot size.

Fiber Interface

QBH , QD (LLK-D) , LLK-B

KIS Size

10*2, 15*2, 20*2, 20*4mm or others

Clear Aperture

49.5mm



Axis Range



Collimator Focal Length

75mm , 100mm , 150mm , 200mm



- X

±15mm

Focusing Focal Length

300mm

- Y

±15mm

Cover Glass

Φ50*2mm



- Z

±30mm

Assist Gas Pressure

≤5 bar



Angle Range

3˚x10

Weight

~7 kg
