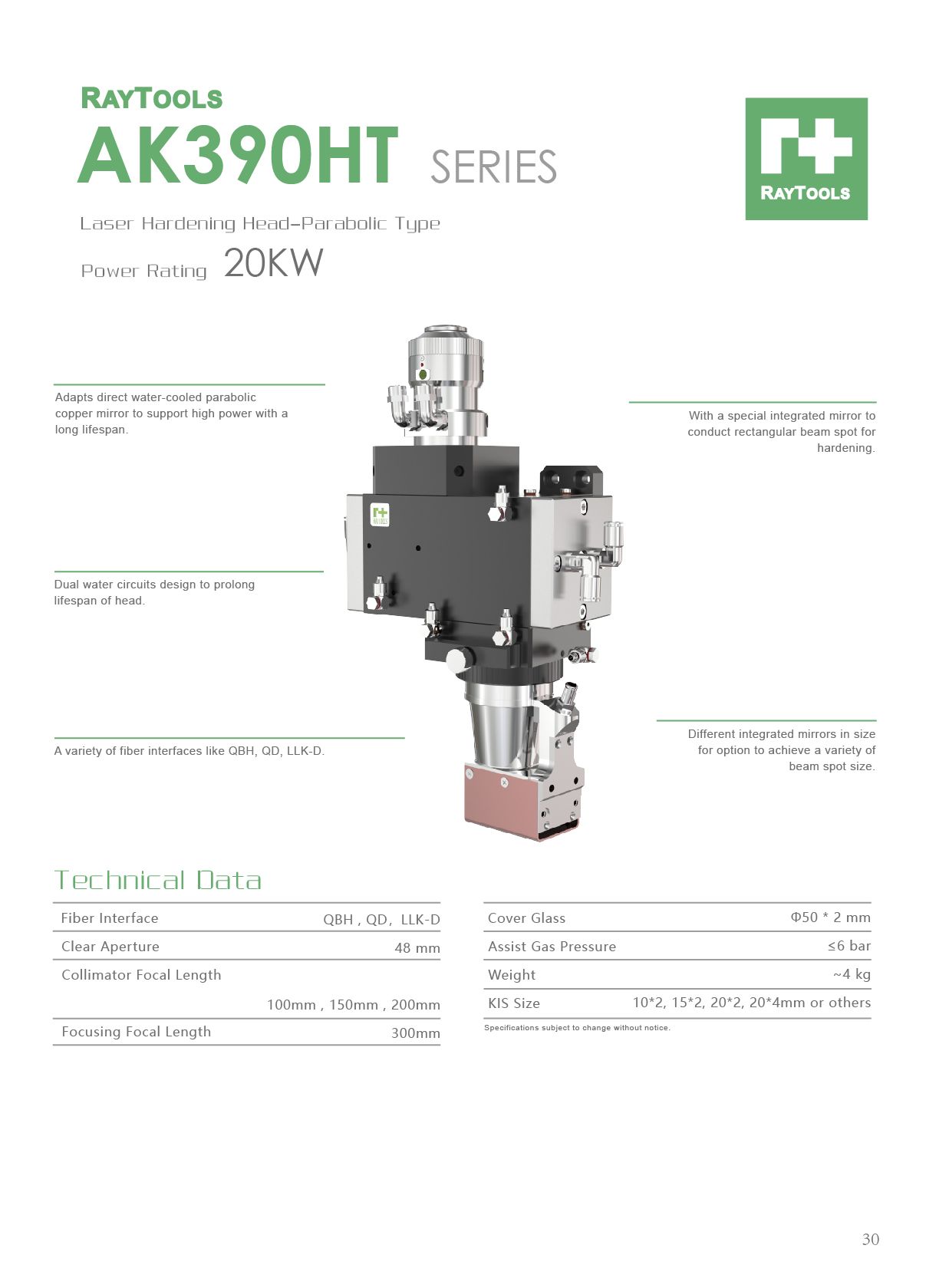

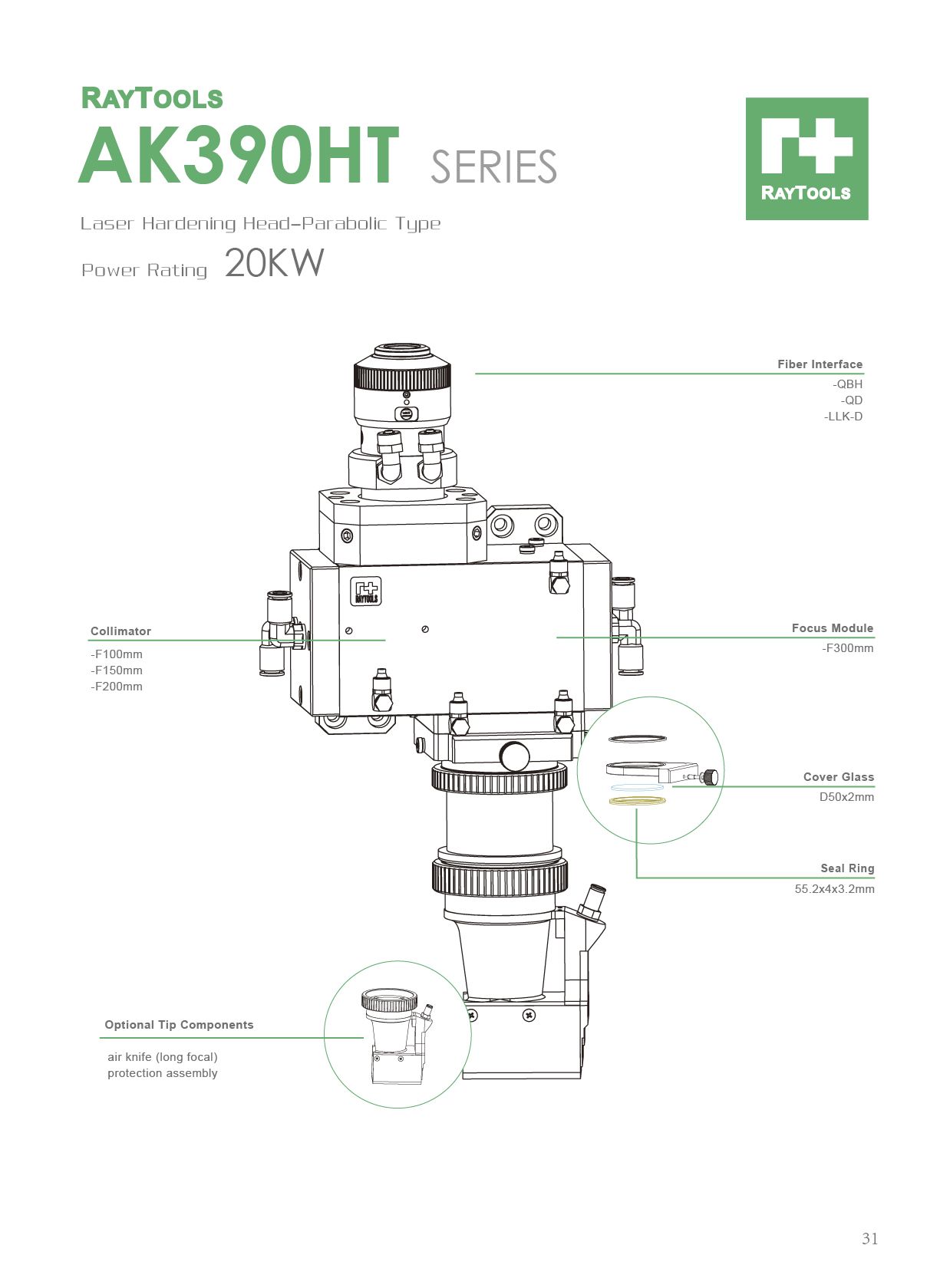

AK390HT Laser Hardening Head

Power rating 20KW; Laser hardening by rectangular beam spot; Parabolic optics system.

  • Features
  • Technical Data
  • Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.

  • Dual water circuits design to prolong lifespan of head.

  • A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.

  • With a special integrated mirror to conduct rectangular beam spot for hardening.

  • Different integrated mirrors in size for option to achieve a variety of beam spot size.

Fiber Interface

QBH , QD (LLK-D) , LLK-B

Cover Glass

Φ50*2mm

Clear Aperture

49.5mm



Assist Gas Pressure

6 bar

Collimator Focal Length

75mm,100mm,150mm,200mm



Weight

~ 4 kg

Focusing Focal Length

300mm

KIS Size

10*2, 15*2, 20*2, 20*4mm or others
