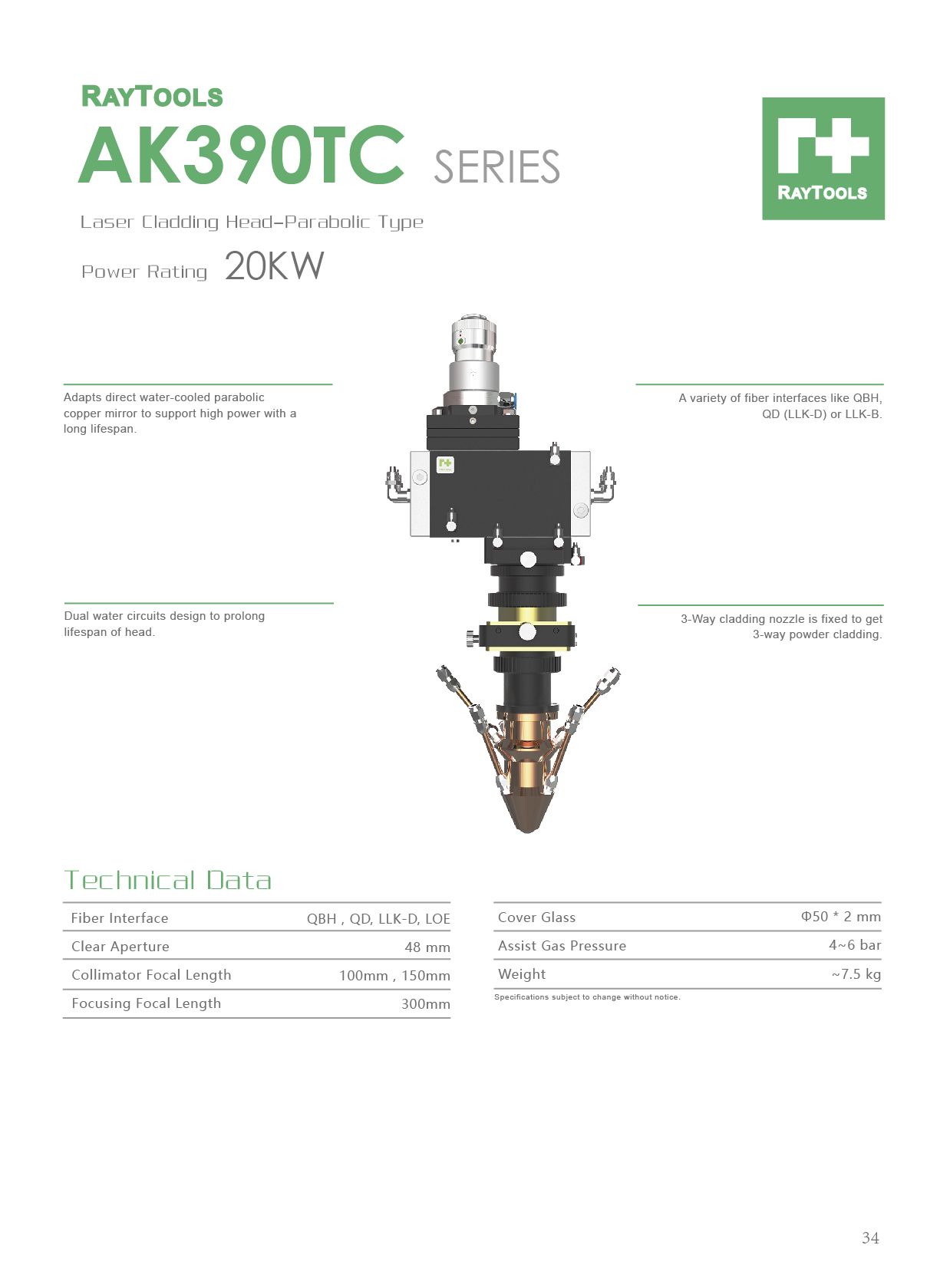

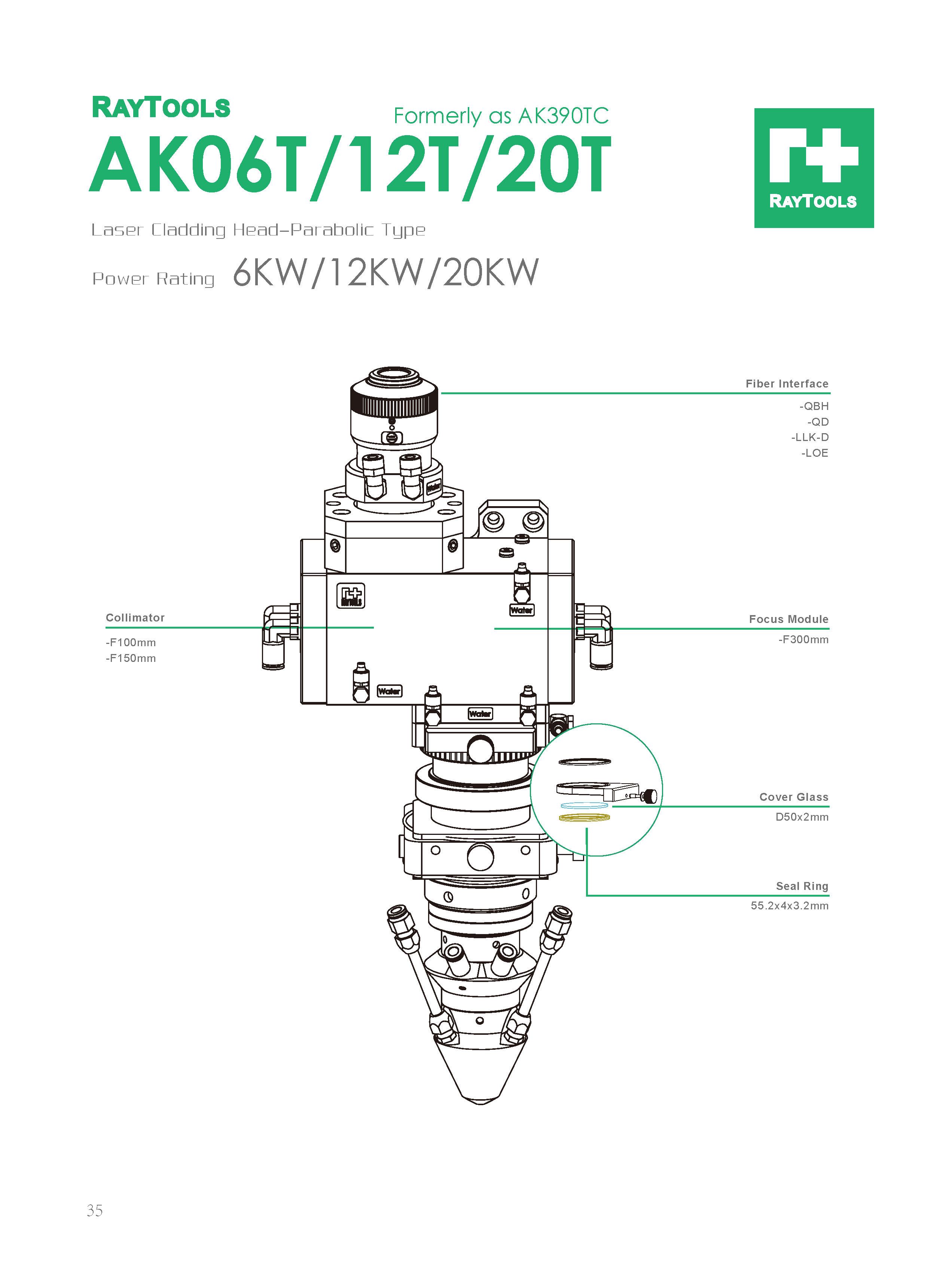

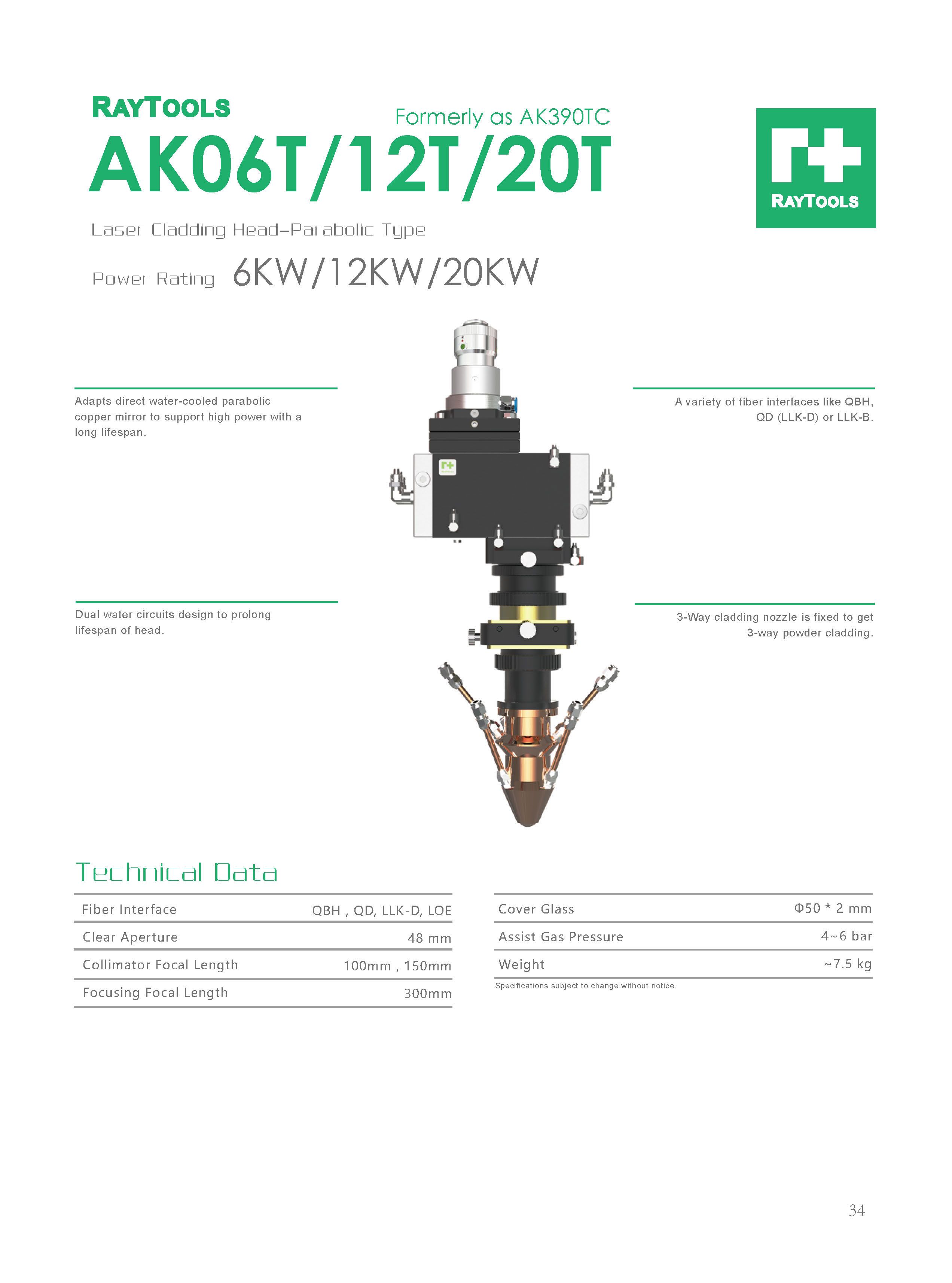

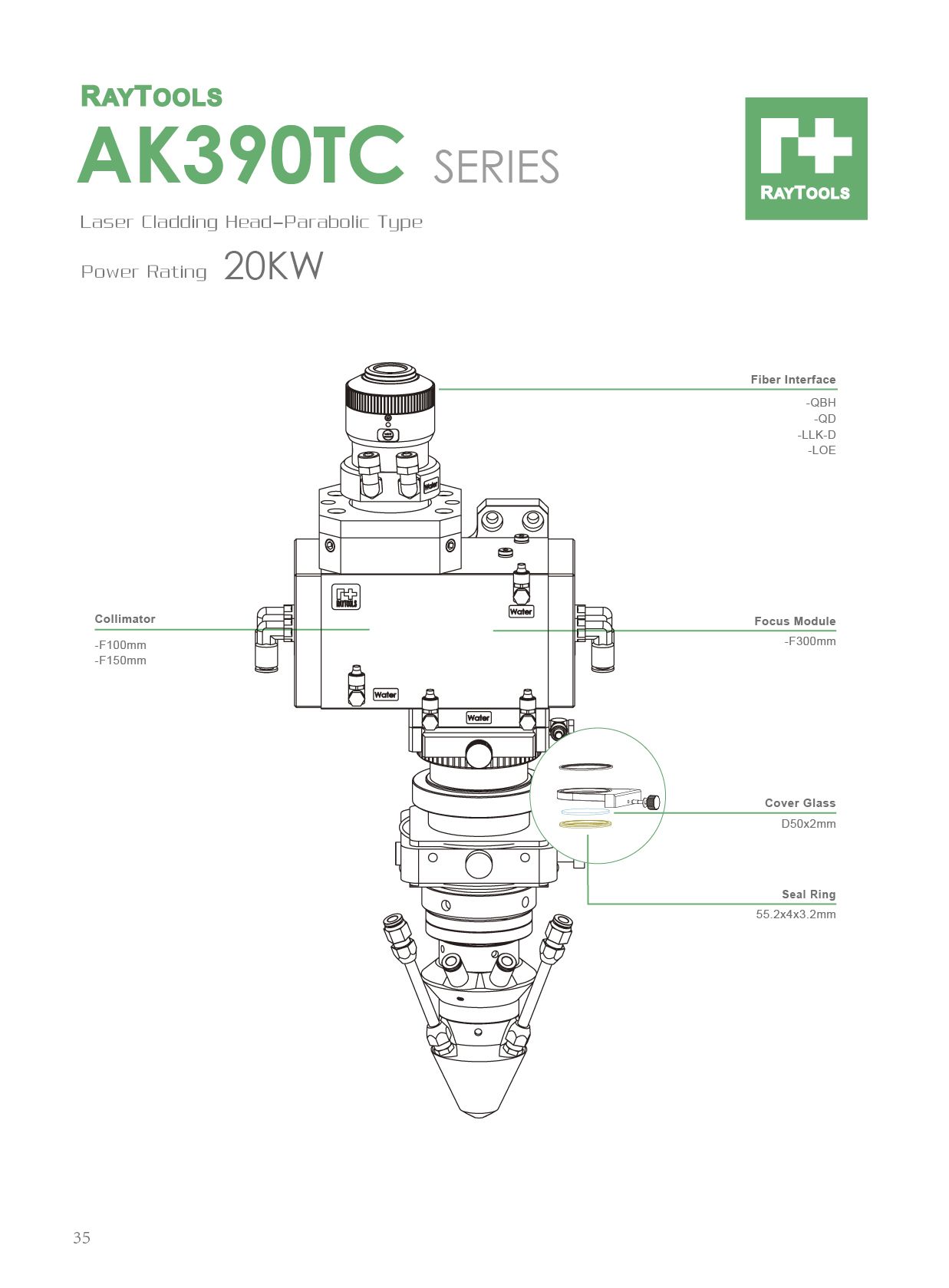

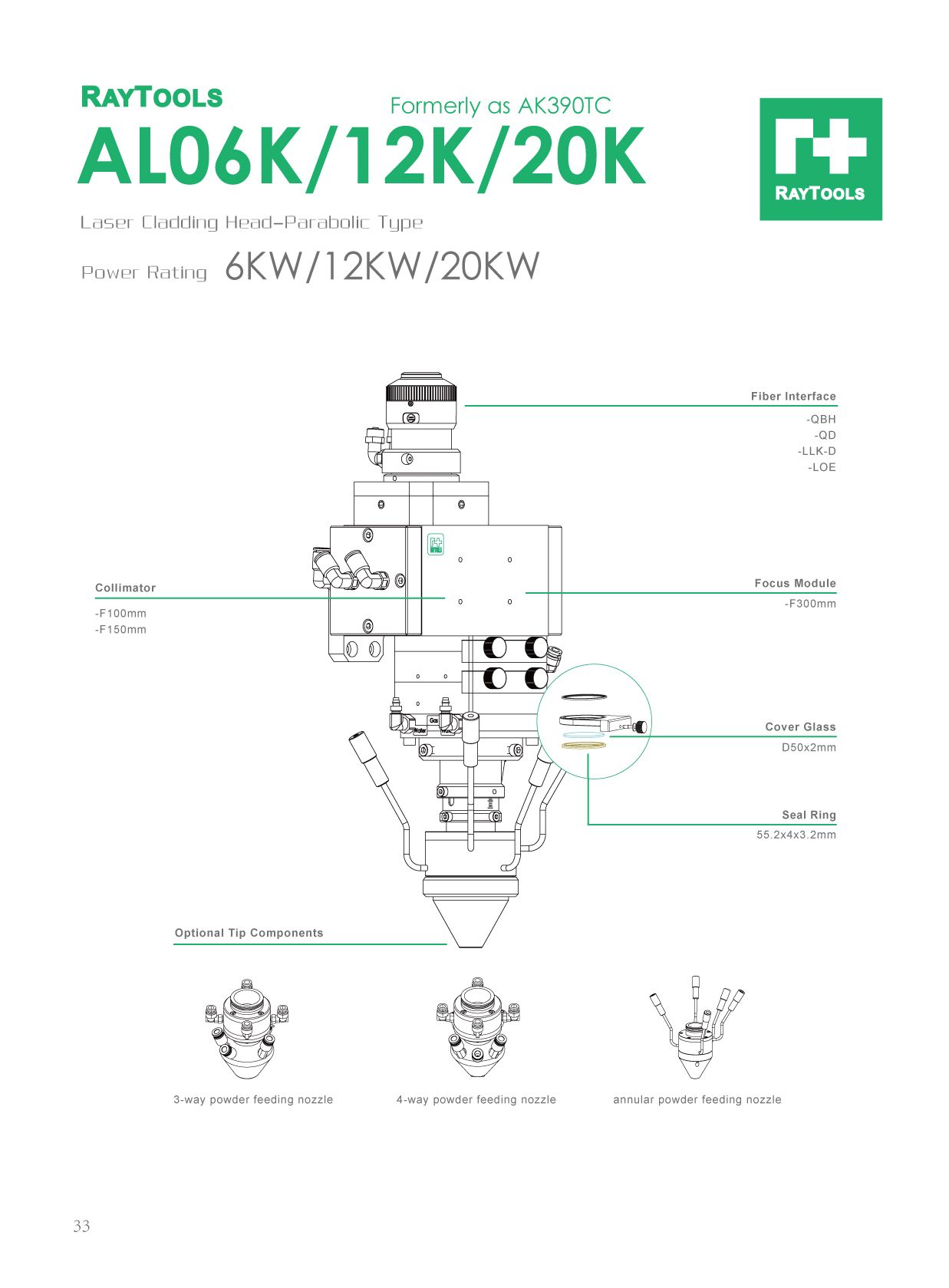

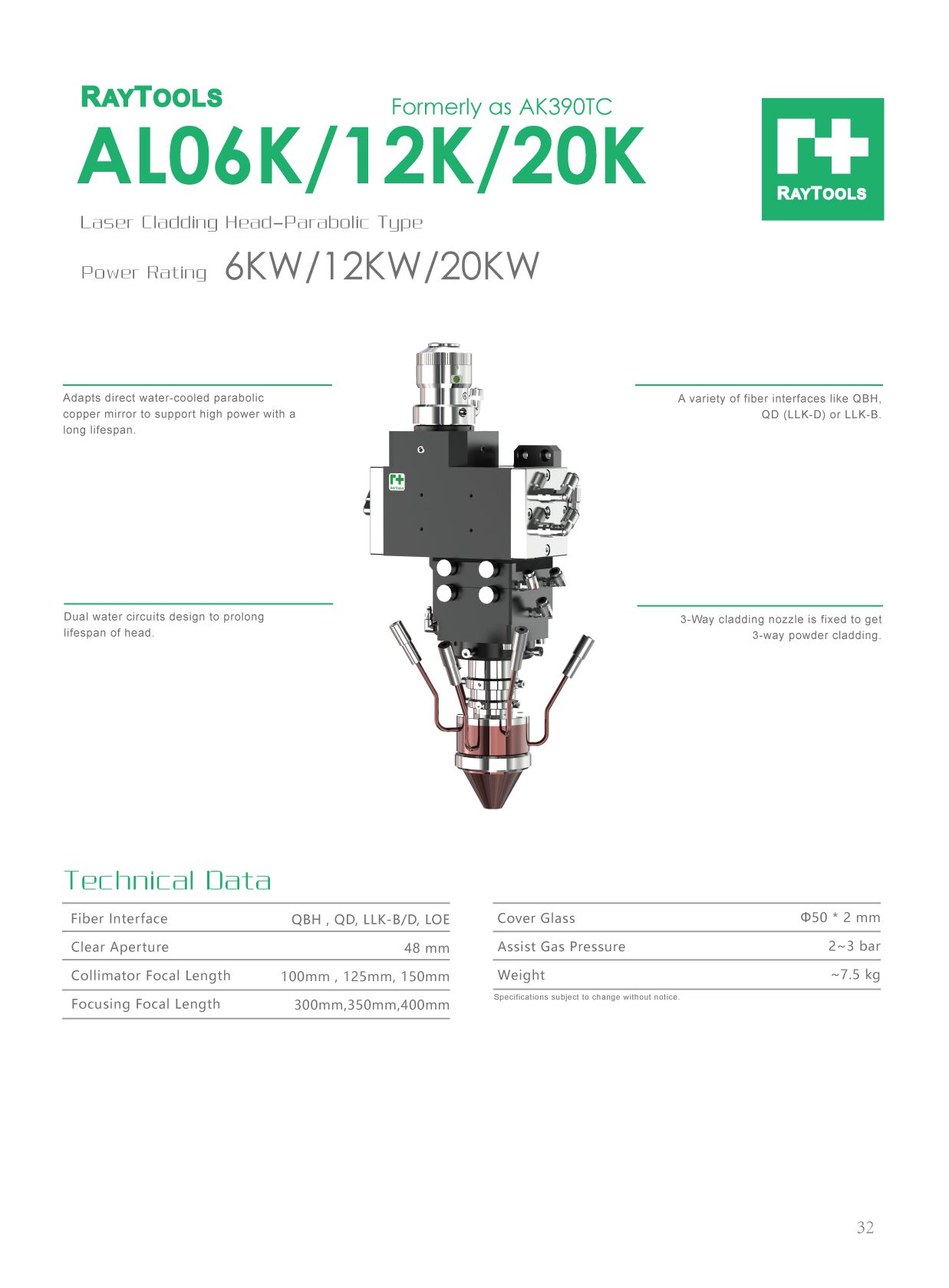

AK390TC Laser Cladding Head

Power rating 20KW; 3-Way powder cladding; Parabolic optics system.

  • Features

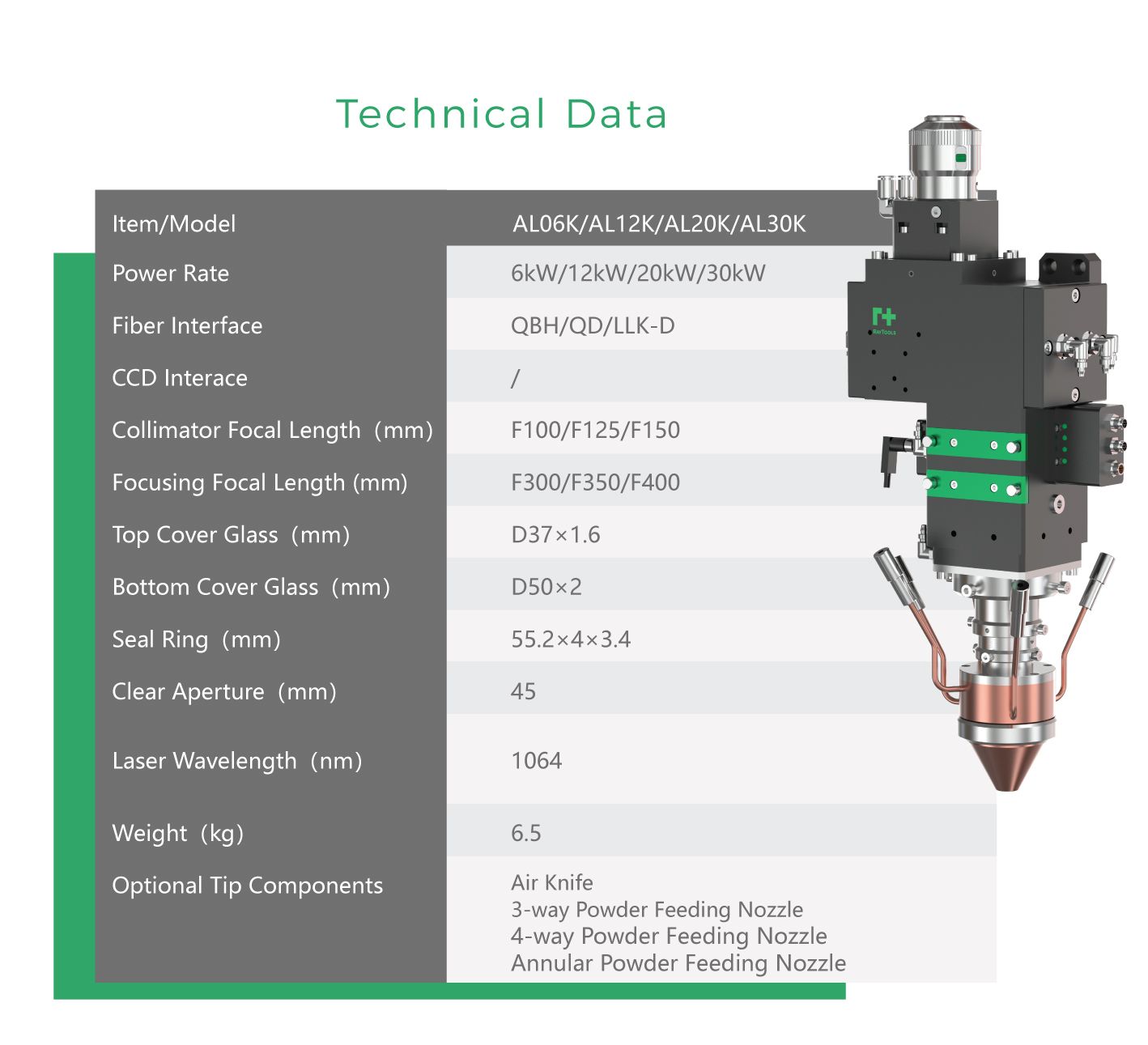

  • Technical Data
  • Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.

  • Dual water circuits design to prolong lifespan of head.

  • A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.

  • 3-Way cladding nozzle is fixed to get 3-way powder cladding.

Fiber Interface

QBH , QD (LLK-D) , LLK-B

Cover Glass

Φ50*2mm

Clear Aperture

49.5mm



Assist Gas Pressure

4~6 bar

Collimator Focal Length

100mm , 150mm



Weight

~ 7.5 kg

Focusing Focal Length

300mm
