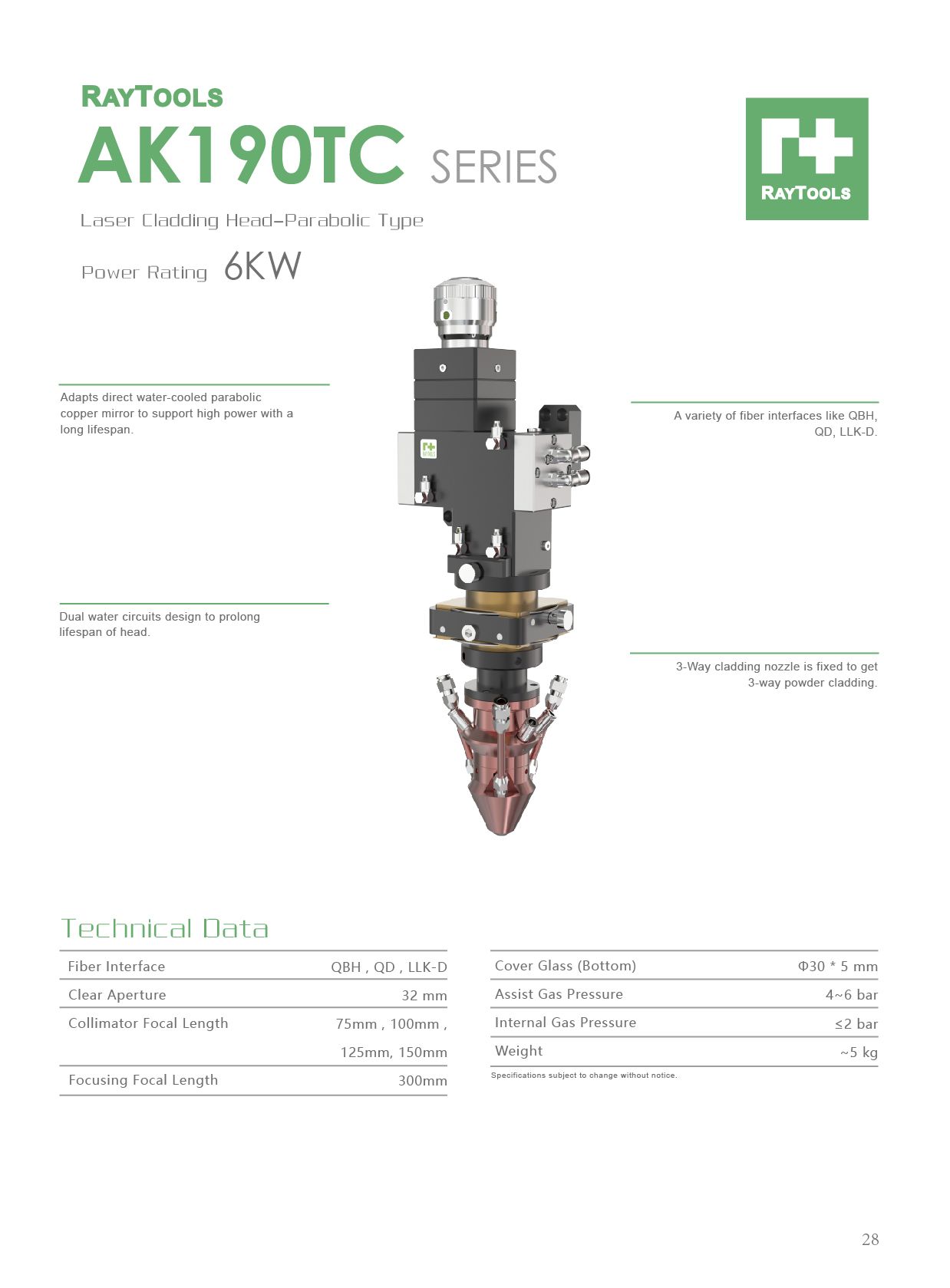

AK190TC Laser Cladding Head

Power rating 6KW; 3-Way powder cladding; Parabolic optics system.

  • Features
  • Technical Data
  • Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.

  • Dual water circuits design to prolong lifespan of head.

  • A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.

  • 3-Way cladding nozzle is fixed to get 3-way powder cladding.

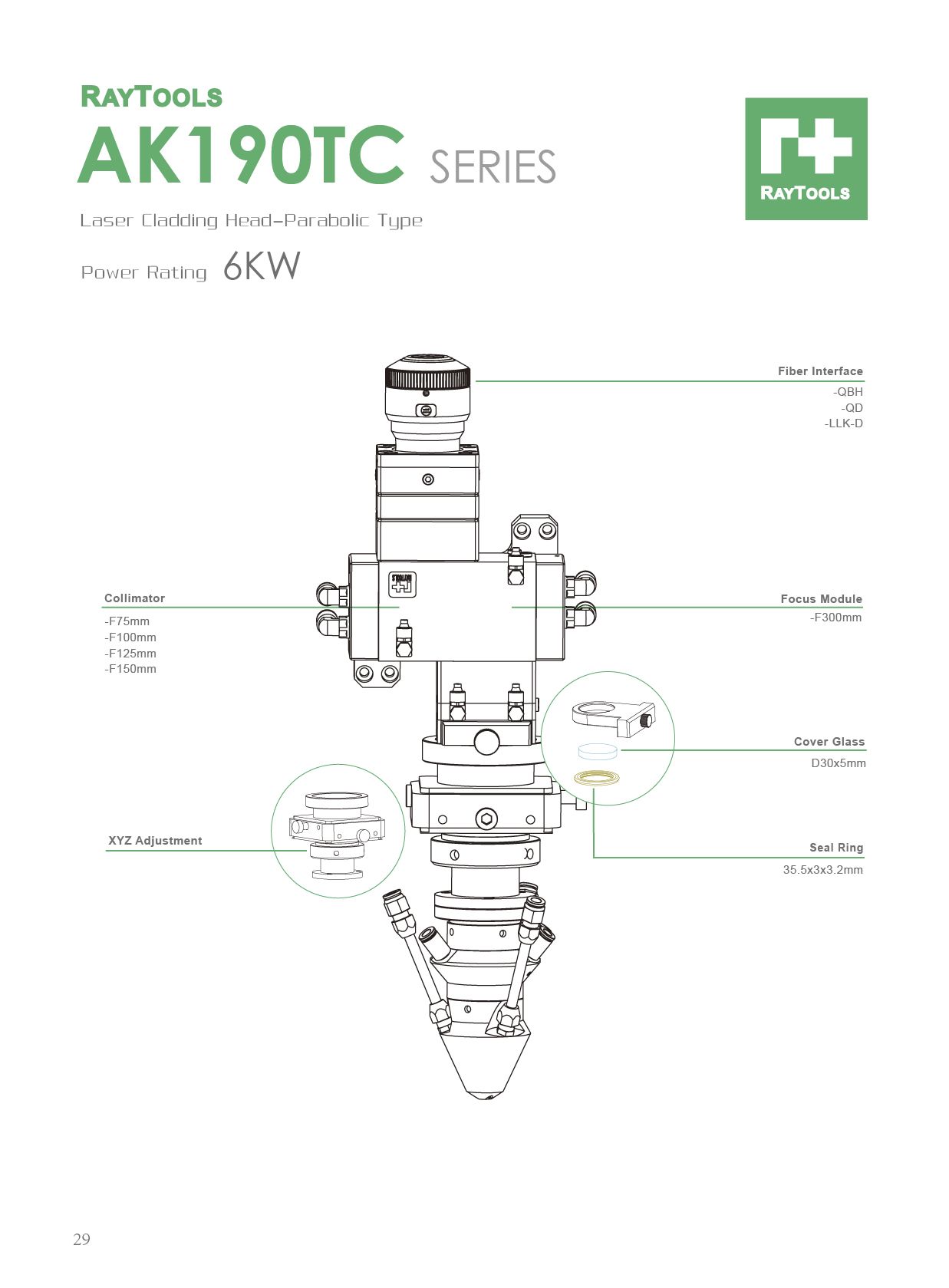

Fiber Interface

QBH , QD (LLK-D), LLK-B

Cover Glass (Bottom)

Φ30*5mm

Clear Aperture

34.5mm



Assist Gas Pressure

4-6 bar

Collimator Focal Length

75mm , 100mm, 120mm



Internal Gas Pressure

≤2 bar

Focusing Focal Length

300mm

Weight

~ 5 kg
