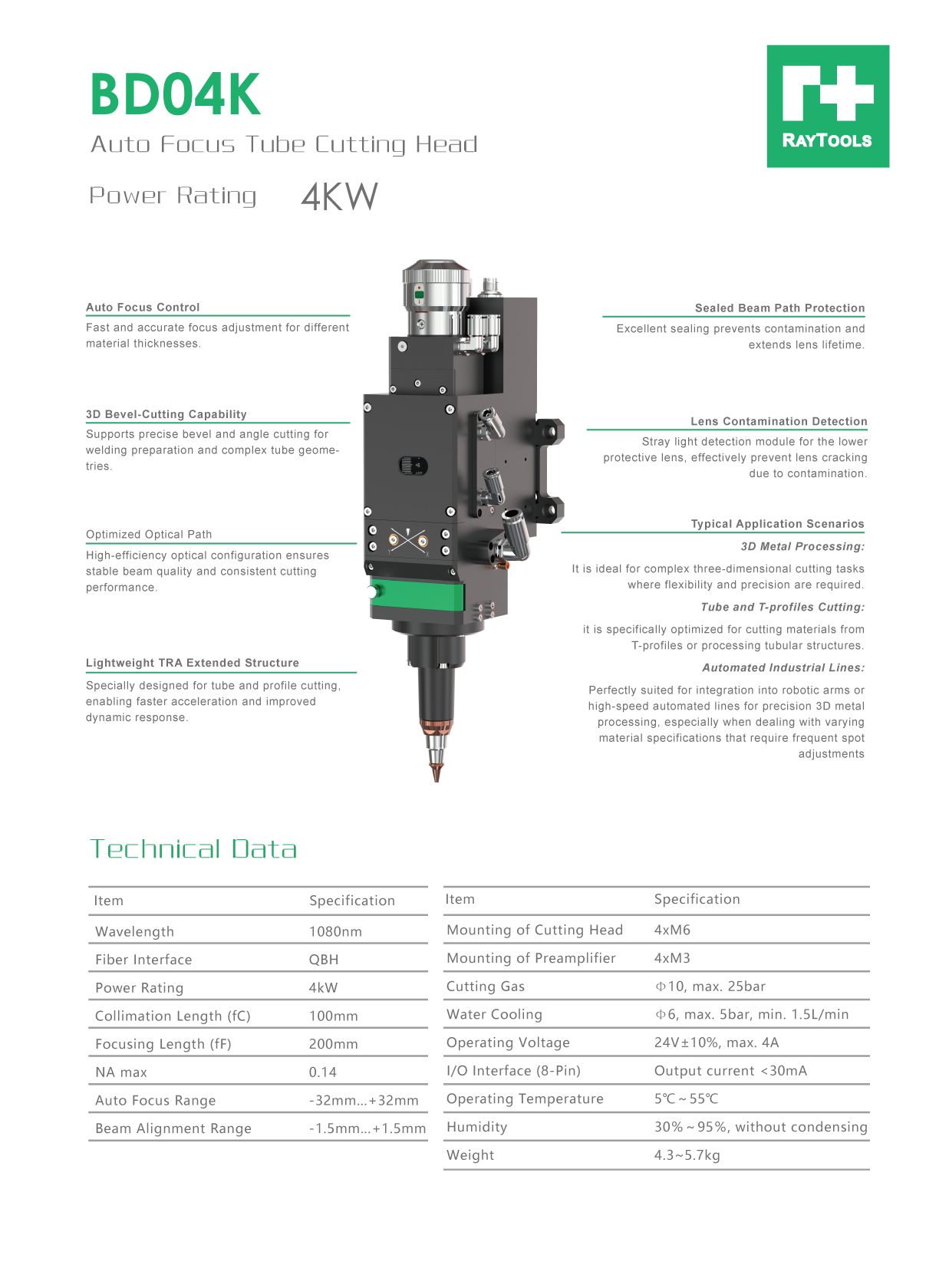

BD04K Auto Focus Tube Cutting Head (NEW, V2.0)
Power rating 4KW. Improved auto focus by motion of collimator. More compact and skinny design of TRA assembly. Stray beam detection of bottom cover glass.
- Features
- Technical Data
Superior Optimized Design
Its lightweight, compact structure enables fast acceleration. Optimized optical configuration and efficient streamlined airflow design greatly boost cutting quality and working efficiency for stable, precise processing.
Wide Compatibility
Featured with a standard QBH fiber interface, it is fully compatible with all mainstream laser sources, delivering high versatility and easy equipment integration.
Fully Sealed Optical Path Protection
The fully sealed structure blocks dust and moisture, keeping the internal optical path strictly clean to stabilize laser performance and prolong component service life.
Automatic Spot & Focus Adjustment
Automatic focus adjustment is achieved via precise collimating lens position tuning, optimizing spot quality for diverse scenarios and ensuring consistent processing accuracy.
Stray Light Detection Function
Equipped with standard stray light detection sensors for bottom 1 cover glass, it real-time monitors lens contamination and prevents lens cracking, securing safe and stable equipment operation.
