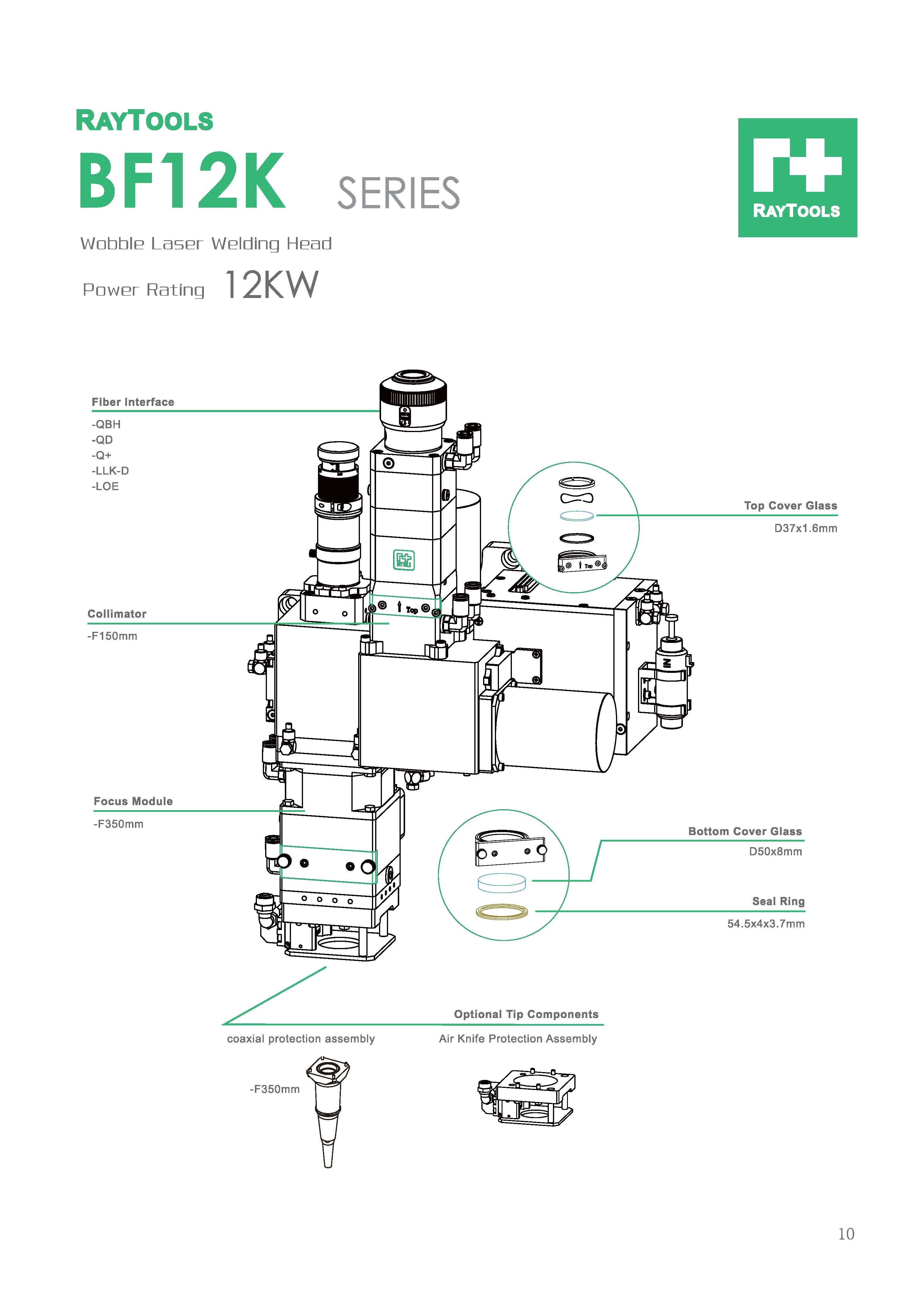

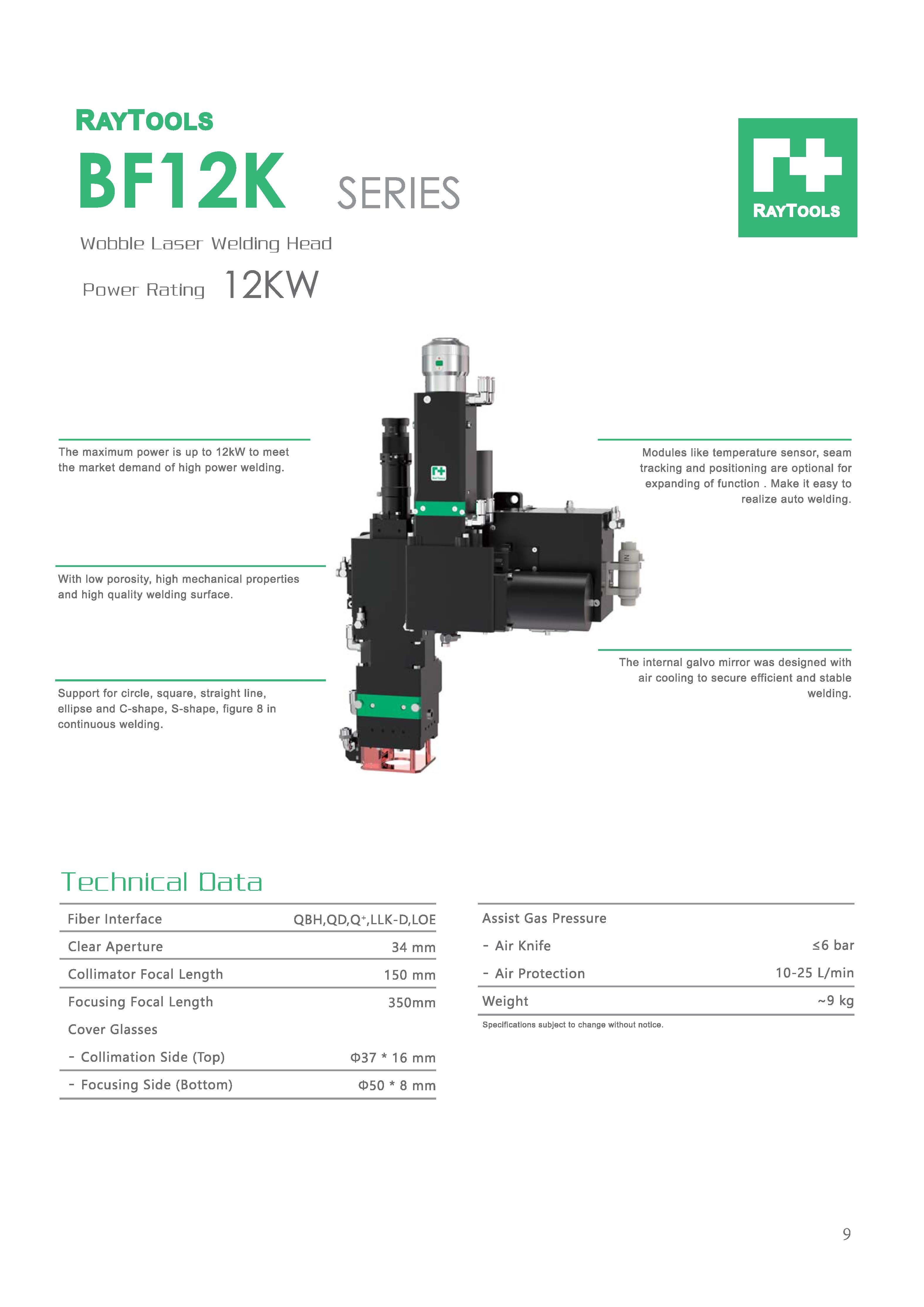

BF12K/BF20K Wobble Laser Welding Head

Power rating 12/20KW. Wobble welding feature by galvo system. Built-in galvo and drive system.

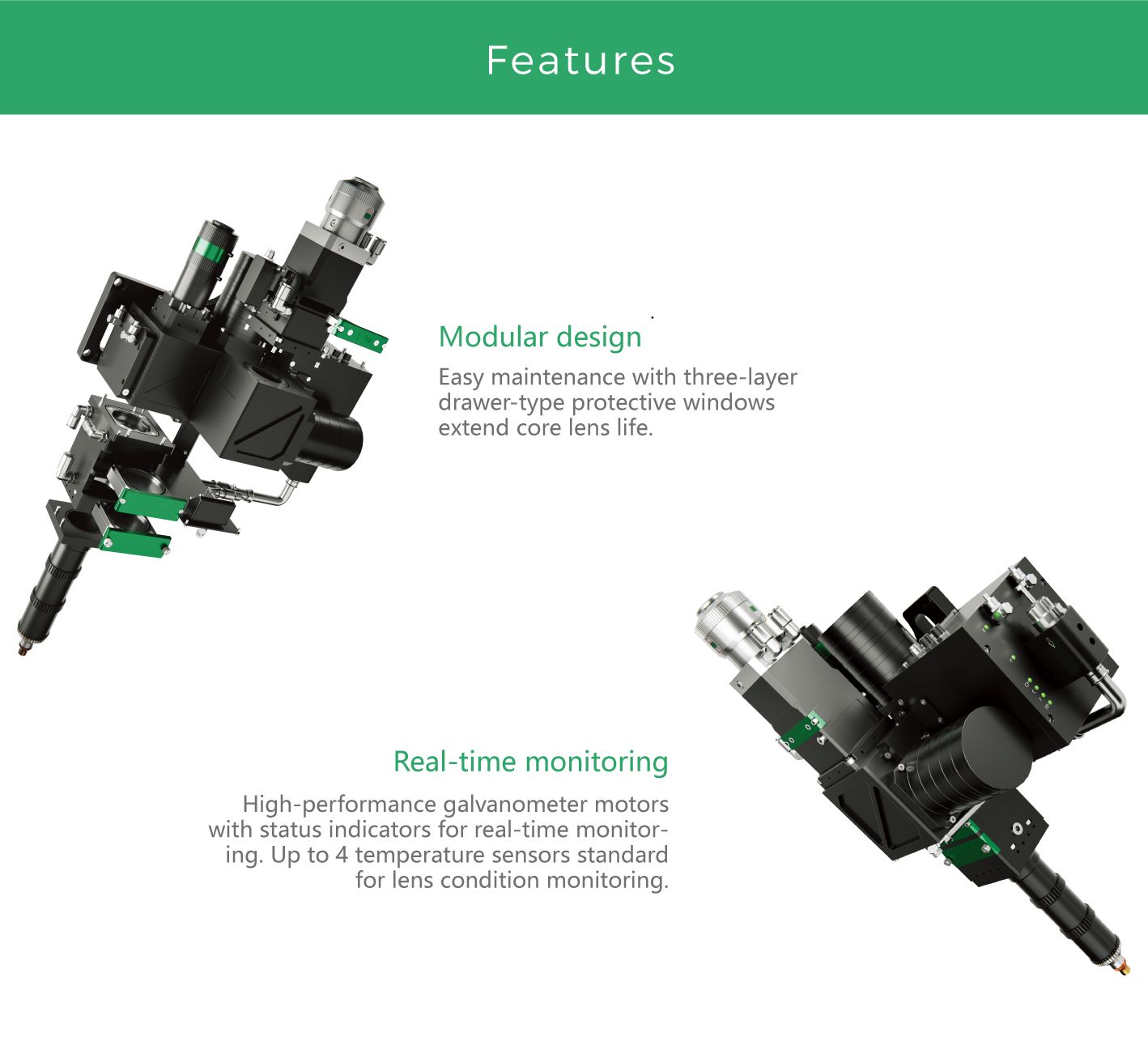

  • Features

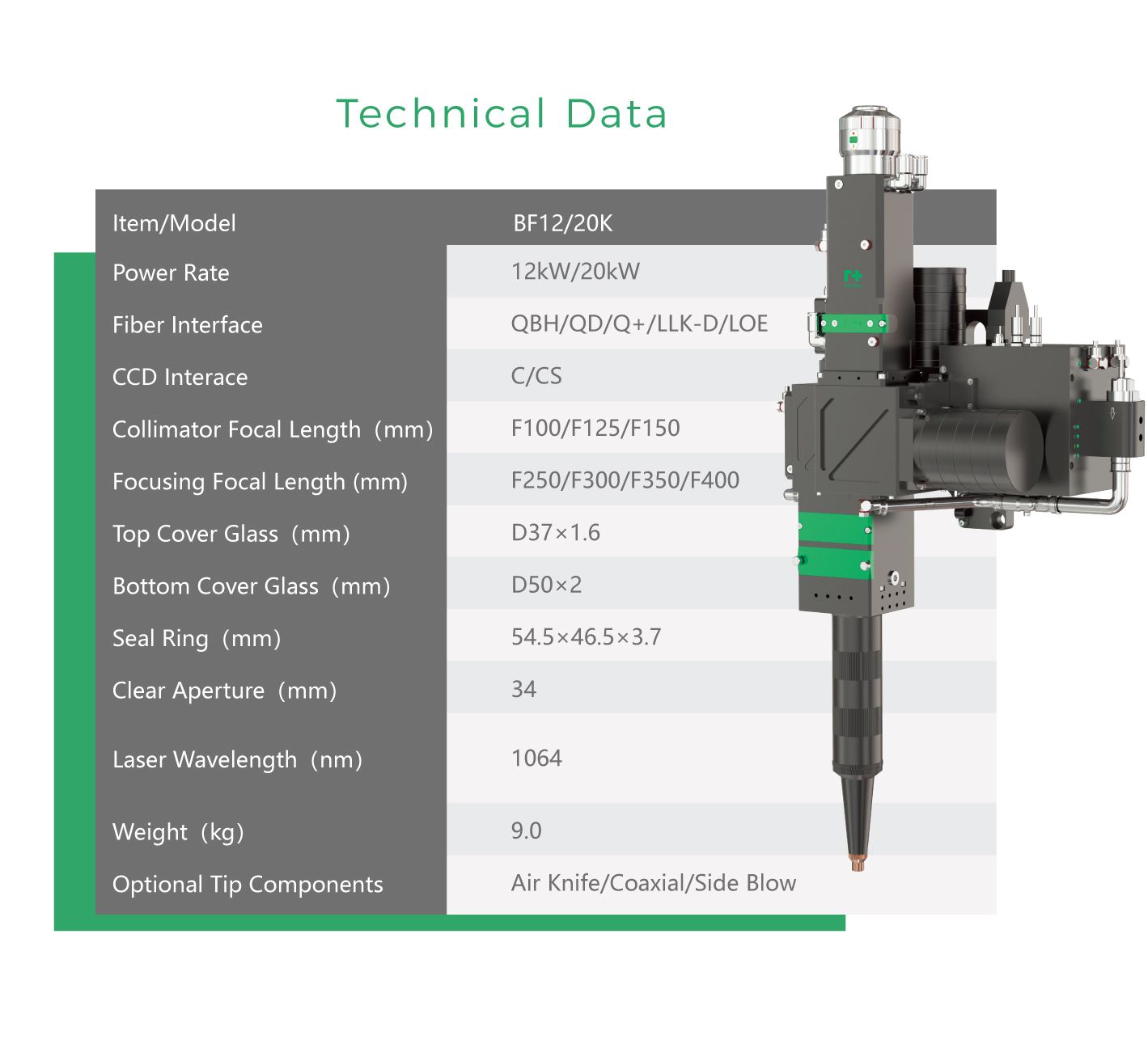

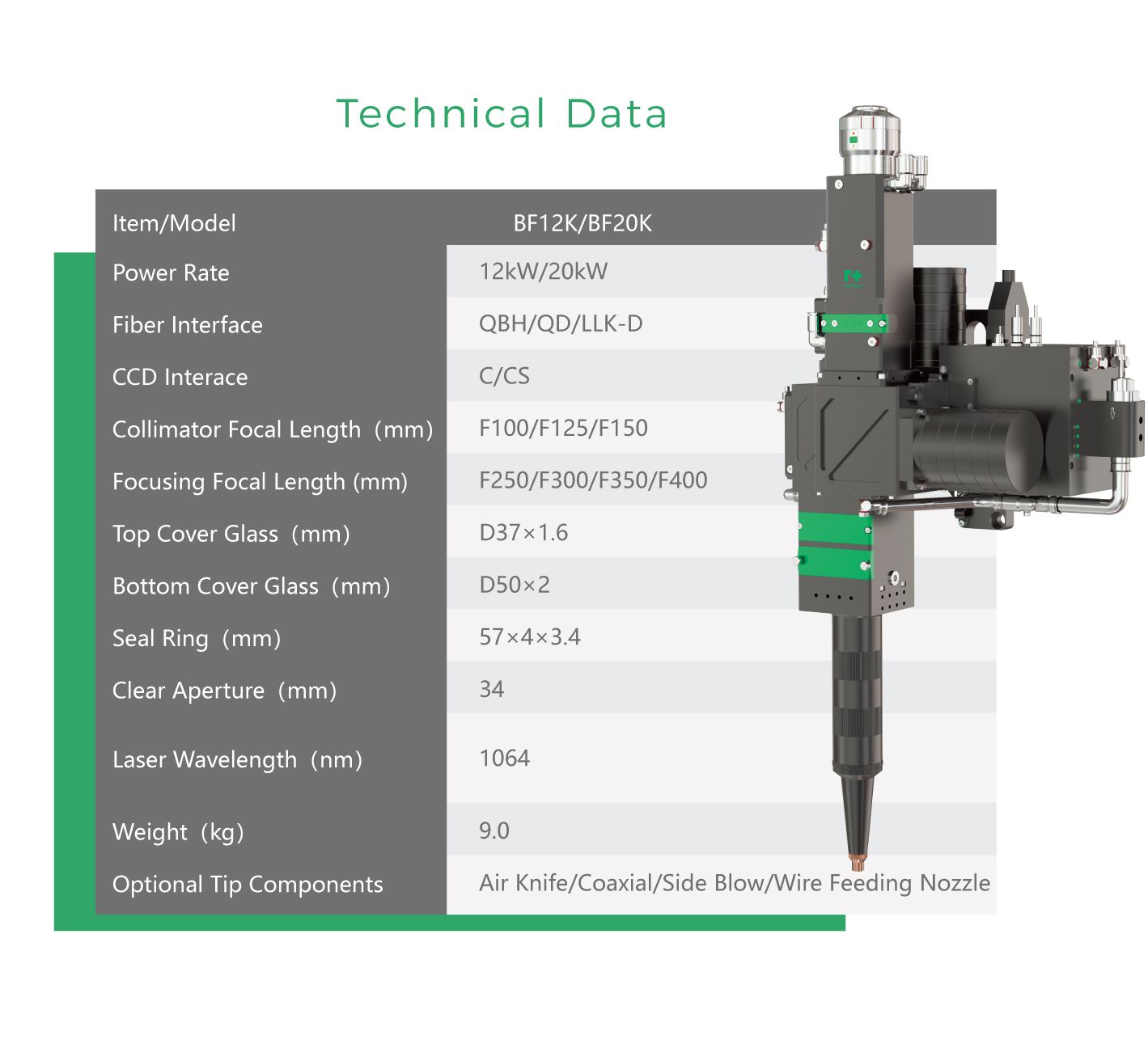

  • Technical Data

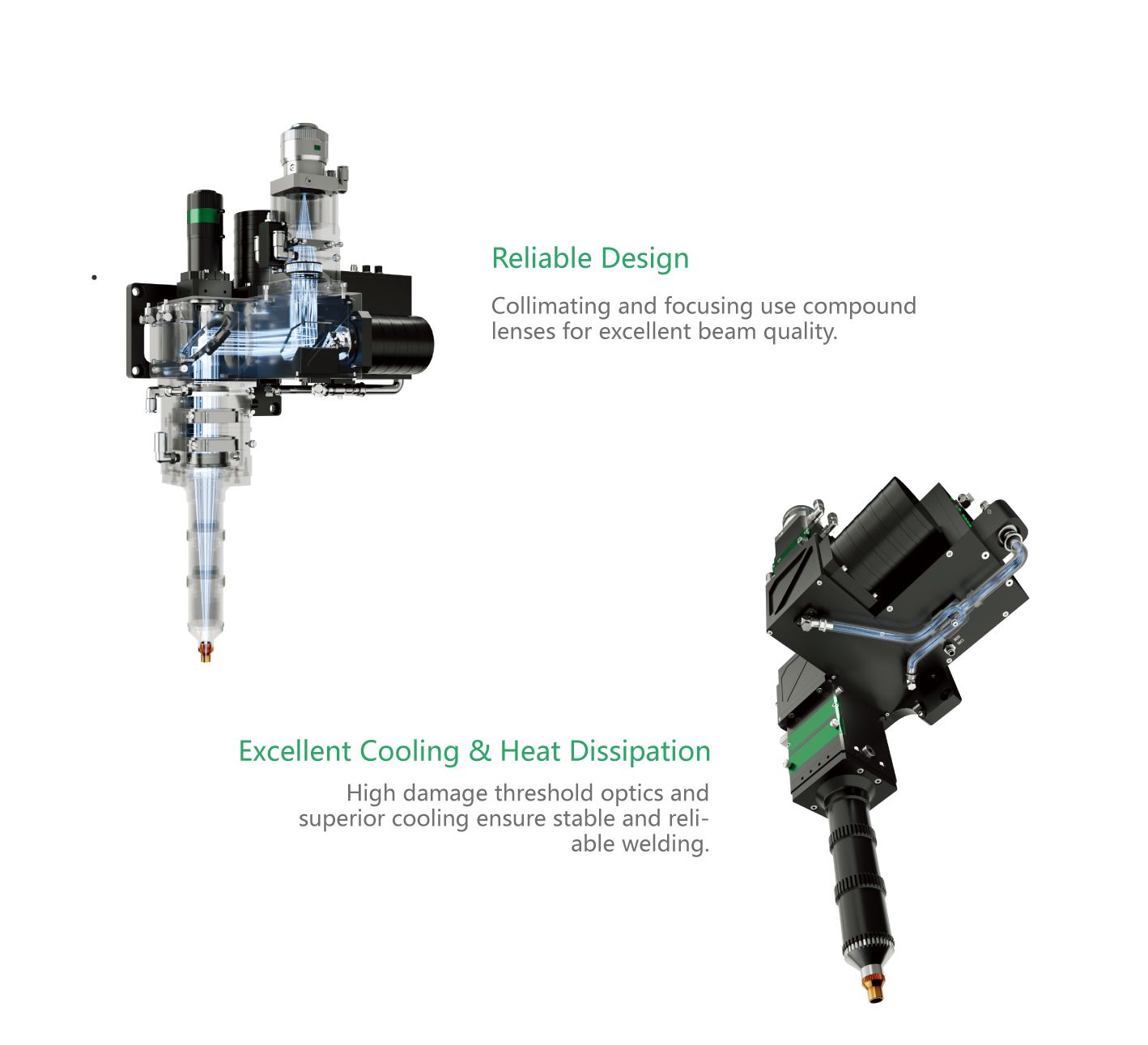

  • The internal galvo mirror was designed with air cooling to secure efficient and stable welding.

  • The maximum power is up to 12/20kW to meet the market demand of high power welding.

  • With low porosity,high mechanical properties and high quality welding surface.

  • Support for circle,square,straight line,ellipse and C-shape,S-shape,figure 8 in continuous welding.

    • Integrated with a CCD camera for real-time monitoring and observation of the machining process.

    • Real-time temperature monitoring to optics system.
