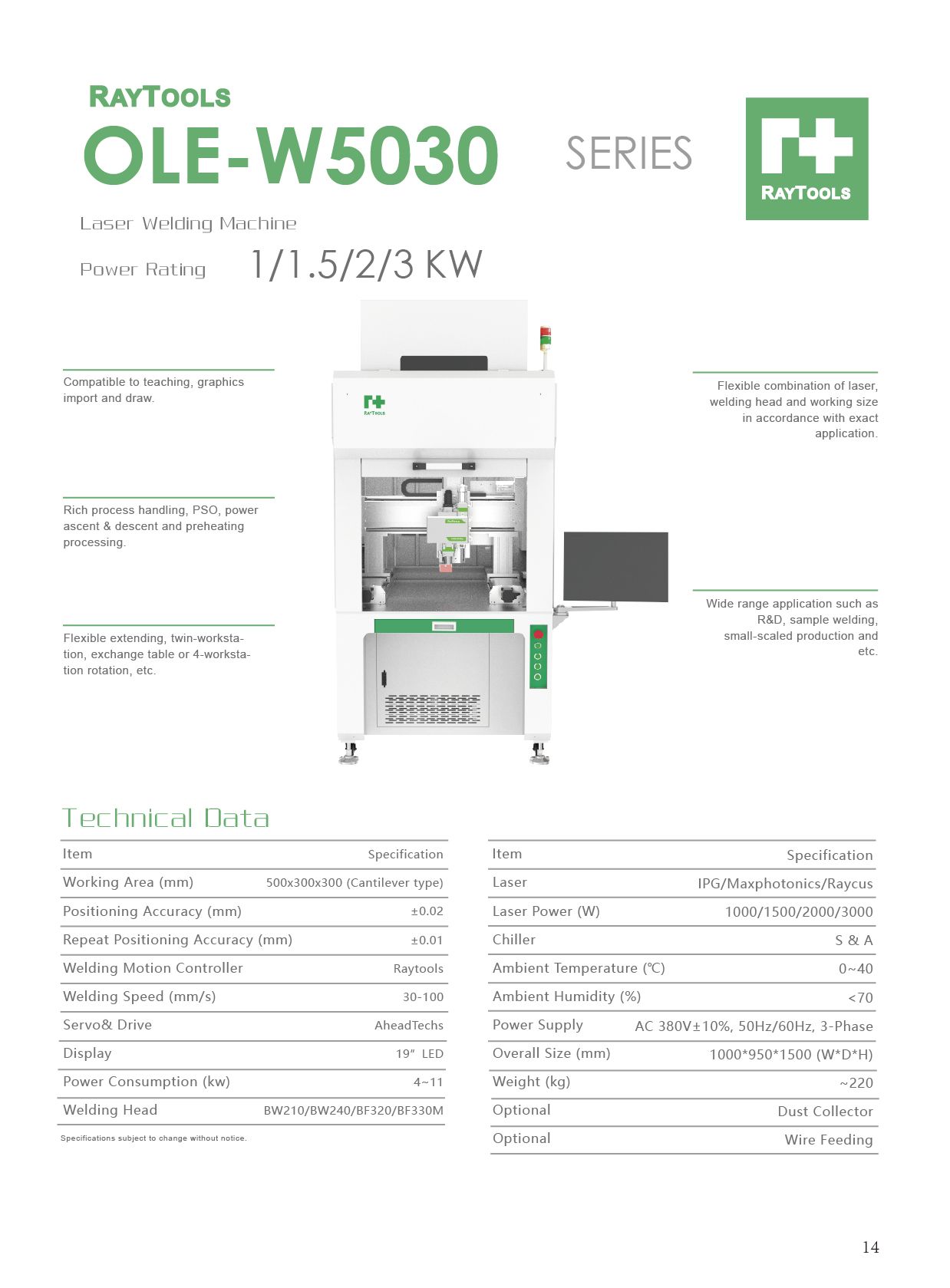

OLE-W5030 Laser Welding Machine
X/Y/Z laser welding with working size 500x300mm, cantilever type.
- Features
- Technical Data
Compatible to teaching, graphics import and draw.
Rich process handling, PSO, power ascent & descent and preheating processing.
Flexible extending, twin-workstation, exchange table or 4-workstation rotation, etc.
Flexible combination of laser, welding head and working size in accordance with exact application.
Wide range application such as R&D, sample welding, small-scaled production and etc.
|
Model |
OLE-W5030 |
Laser |
IPG/Maxphotonics/Raycus |
|
|
Working Area (mm) |
500x300x300 (Cantilever type) |
Laser Power (W) |
1000/1500/2000/3000 |
|
|
Positioning Accuracy (mm) |
±0.02 |
Chiller |
S & A |
|
|
Repeat Positioning Accuracy (mm) |
±0.01 |
Ambient Temperature (℃) |
0~40 |
|
|
Welding Motion Controller |
Raytools |
Ambient Humidity (%) |
<70 |
|
|
Welding Speed (mm/s) |
30-100 |
Power Supply |
AC 380V±10%, 50Hz/60Hz, 3-Phase |
|
|
Servo& Drive |
AheadTechs |
|
Overall Size (mm) |
1000*950*1500 (W*D*H) |
|
Display |
19’’ LED |
|
Weight (kg) |
~220 |
|
Power Consumption (kw) |
4-11 |
|
Optional |
Dust Collector |
|
Welding Head |
BW210/BW240/BF320/BF330M |
|
Optional |
Wire Feeding |
|
|
|
|
|
|
