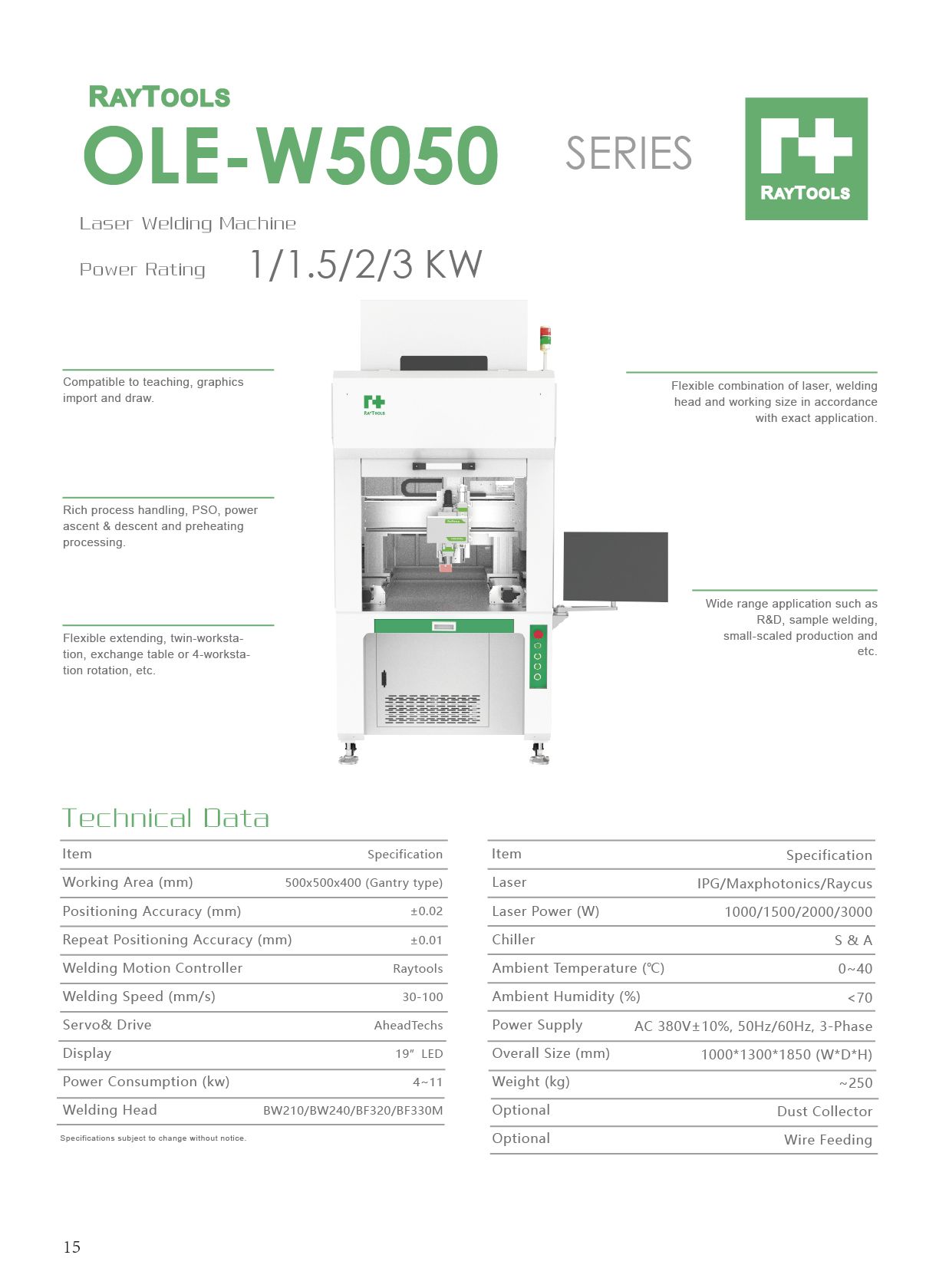

OLE-W5050 Laser Welding Machine

X/Y/Z laser welding with working size 500x500mm, gantry type.

  • Features
  • Technical Data


  • Compatible to teaching, graphics import and draw.

  • Rich process handling, PSO, power ascent & descent and preheating processing.

  • Flexible extending, twin-workstation, exchange table or 4-workstation rotation, etc.

  • Flexible combination of laser, welding head and working size in accordance with exact application.

  • Wide range application such as R&D, sample welding, small-scaled production and etc.

Model

OLE-W5050

Laser

IPG/Maxphotonics/Raycus

Working Area (mm)

500x500x400 (Gantry type)

Laser Power (W)

1000/1500/2000/3000

Positioning Accuracy (mm)

±0.02

Chiller

S & A

Repeat Positioning Accuracy (mm)

±0.01

Ambient Temperature ()

0~40

Welding Motion Controller

Raytools

Ambient Humidity (%)

<70

Welding Speed (mm/s)

30-100

Power Supply

AC 380V±10%, 50Hz/60Hz, 3-Phase

Servo& Drive

AheadTechs



Overall Size (mm)

1000*1300*1850 (W*D*H)

Display

19’’ LED



Weight (kg)

~250

Power Consumption (kw)

4-11



Optional

Dust Collector

Welding Head

BW210/BW240/BF320/BF330M



Optional

Wire Feeding
