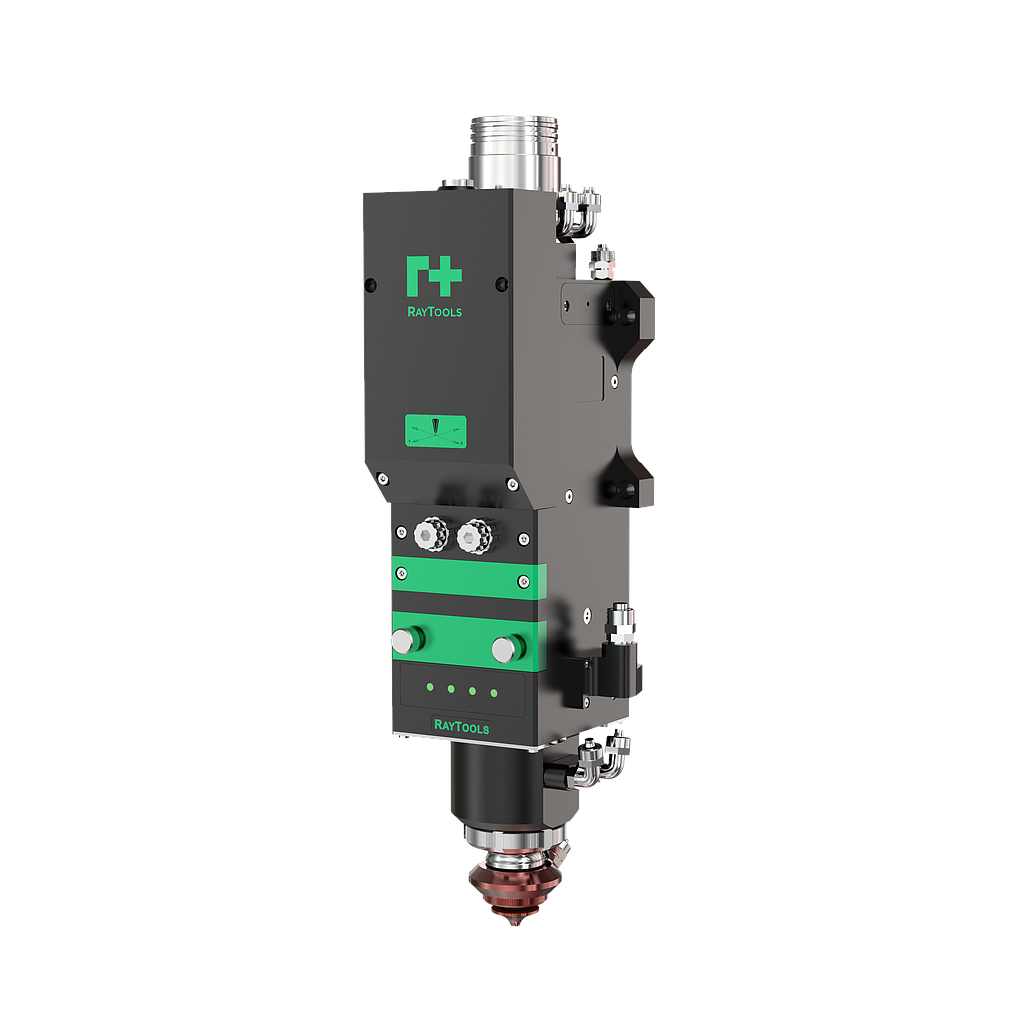

BS12K All-In-One Smart Laser Cutting Head

Power rating 12KW; Fully smart sensor technology with real-time status monitoring by APP or CNC; EtherCAT protocol.

  • Features
  • Technical Data

  • Communication and control based on EtherCAT.

  • 4-Color LED lamps to monitor interior status.

  • Optimized optical configuration and smooth gas circuit.

  • Compact design with high acceleration.

  • Monitoring status could be accessed at mobile APP or CNC controller.

  • Continuous monitoring to optical lens and cover glass.

  • Mounting verticality (gravity) detection.

  • Gas pressure detection.

  • Focus point position detection.

  • Interior air pressure detection.

  • Side anti-collision detection.

  • Fully sealed optical beam structure.

  • Standard QBH/QD (LLK-D)/Q+ interfaces to work with different fiber lasers.

Fiber Interface

QBH , QD , Q+

Collimation Length

100mm

Clear Aperture

32mm

Focus Length

150mm,200mm

Auto Focus

Nozzle Styles

Single , Double , Custom

- Range

+15 ~ -20 mm (FL150); +20 ~-25mm (FL200)



Diameter of Nozzle Tip



- Acceleration

≤ 10 m/s²



1.0mm, 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm,

- Velocity

≤ 10m/min





2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm,

- Accuracy

≤ 50μm





7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.5mm, 10.0mm

Cover Glasses

　



Assist Gas Pressure

≤ 30 bar

- Top

Φ24.9*1.5mm



Weight

~ 6.8 kg

- Bottom

Φ37*7mm
