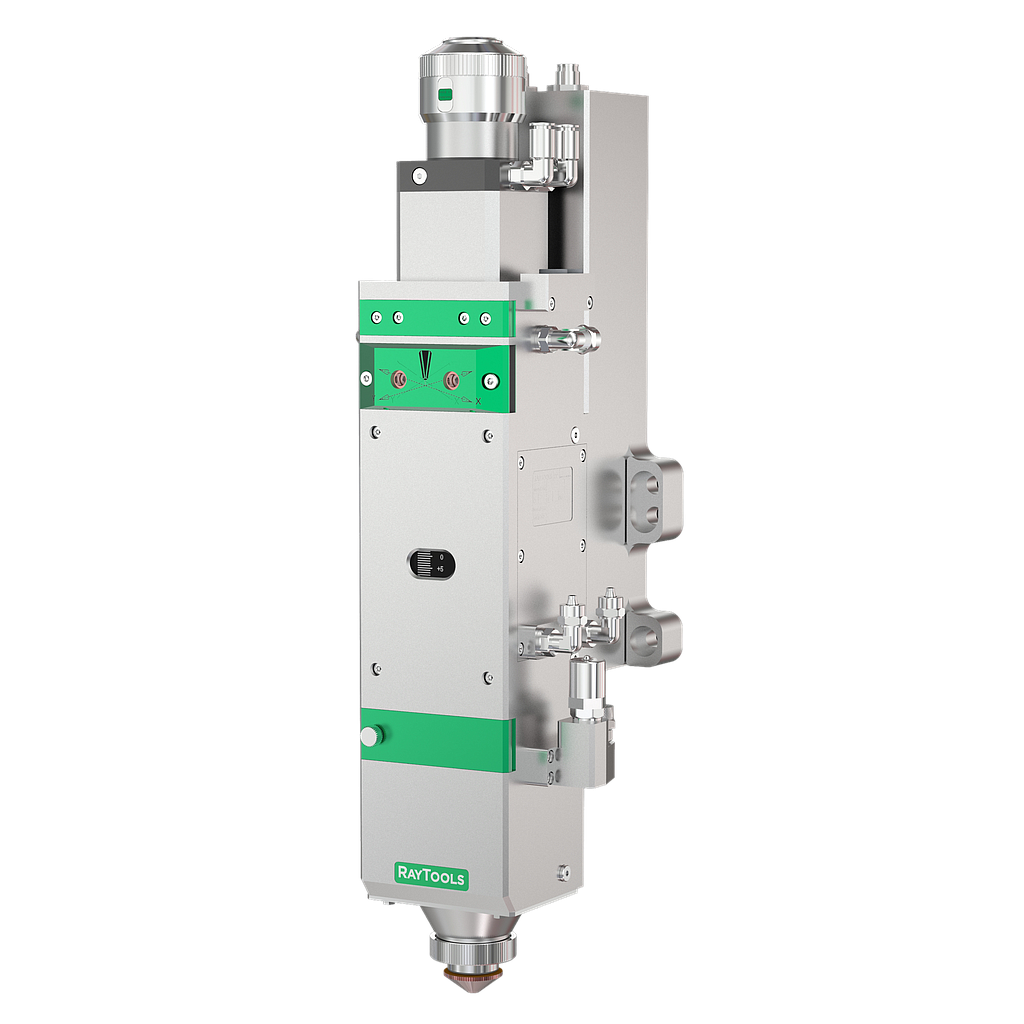

BM114S Auto Focus Laser Cutting Head
Power rating 6KW; Standard auto focus laser cutting.
- Features

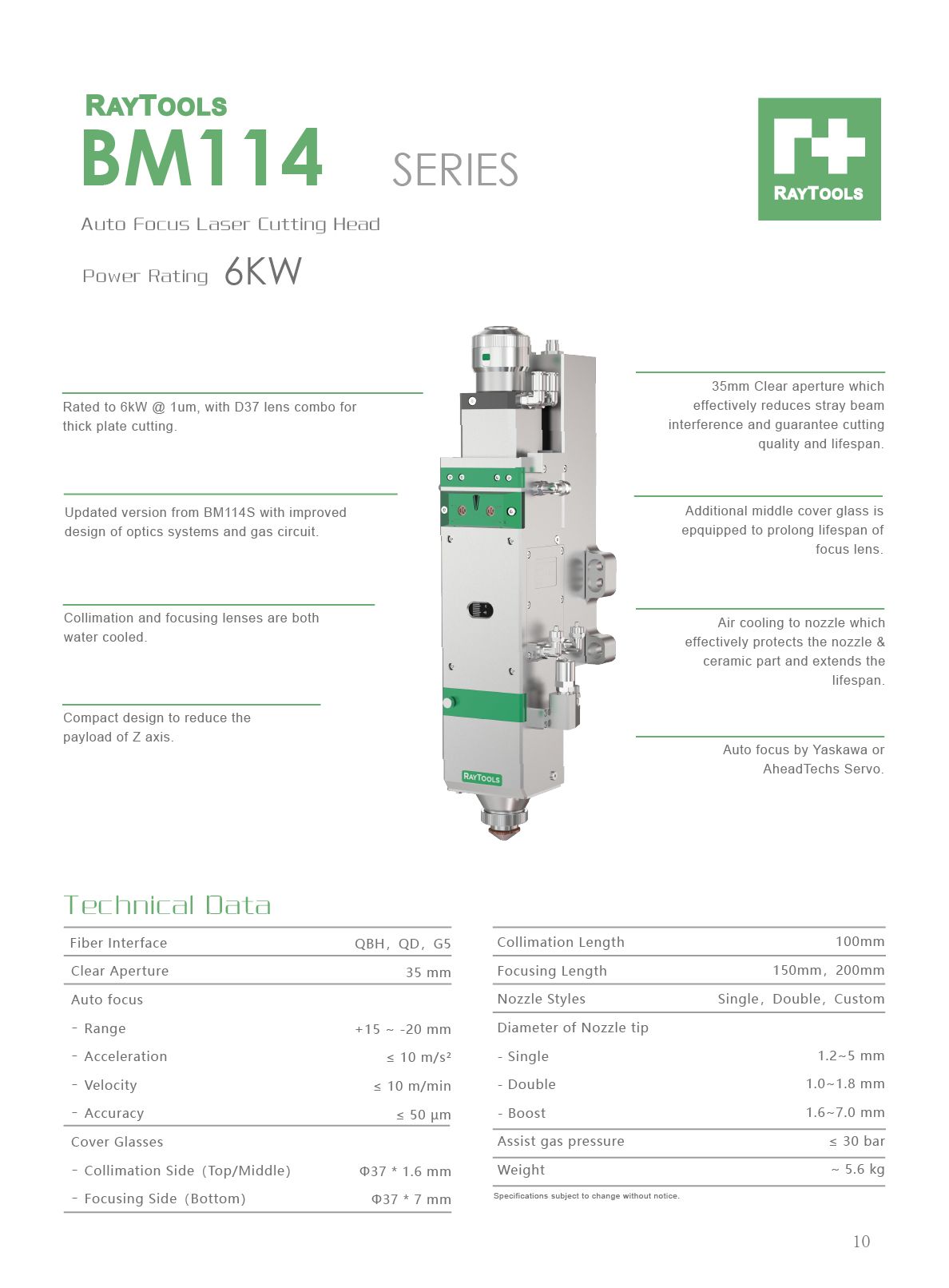

- Technical Data
Rated to 6kW @ 1um, with D37 lens combo for thick plate cutting.
Collimation and focusing lenses are both water cooled.
Compact design to reduce the payload of Z axis.
Air cooling to nozzle which effectively protects the nozzle & ceramic part and extends the lifespan.
35mm Clear aperture which effectively reduces stray beam interference and guarantee cutting quality and lifespan.
Auto focus to reduce human intervention.
|
Fiber Interface |
QBH , QD |
Collimation Length |
100mm |
|
|
Clear Aperture |
35mm |
Focusing Length |
150mm , 200mm |
|
|
Auto Focus |
|
Nozzle Styles |
Single , Double , Custom |
|
|
- Range |
+15 ~ -20mm |
Diameter of Nozzle Tip |
||
|
- Acceleration |
≤10m/s² |
|
0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, |
|
|
- Velocity |
≤10m/min |
|
3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
|
|
- Accuracy |
≤ 50μm |
Assist Gas Pressure |
≤ 30 bar |
|
|
Cover Glasses |
|
Weight |
~ 5.6 kg |
|
|

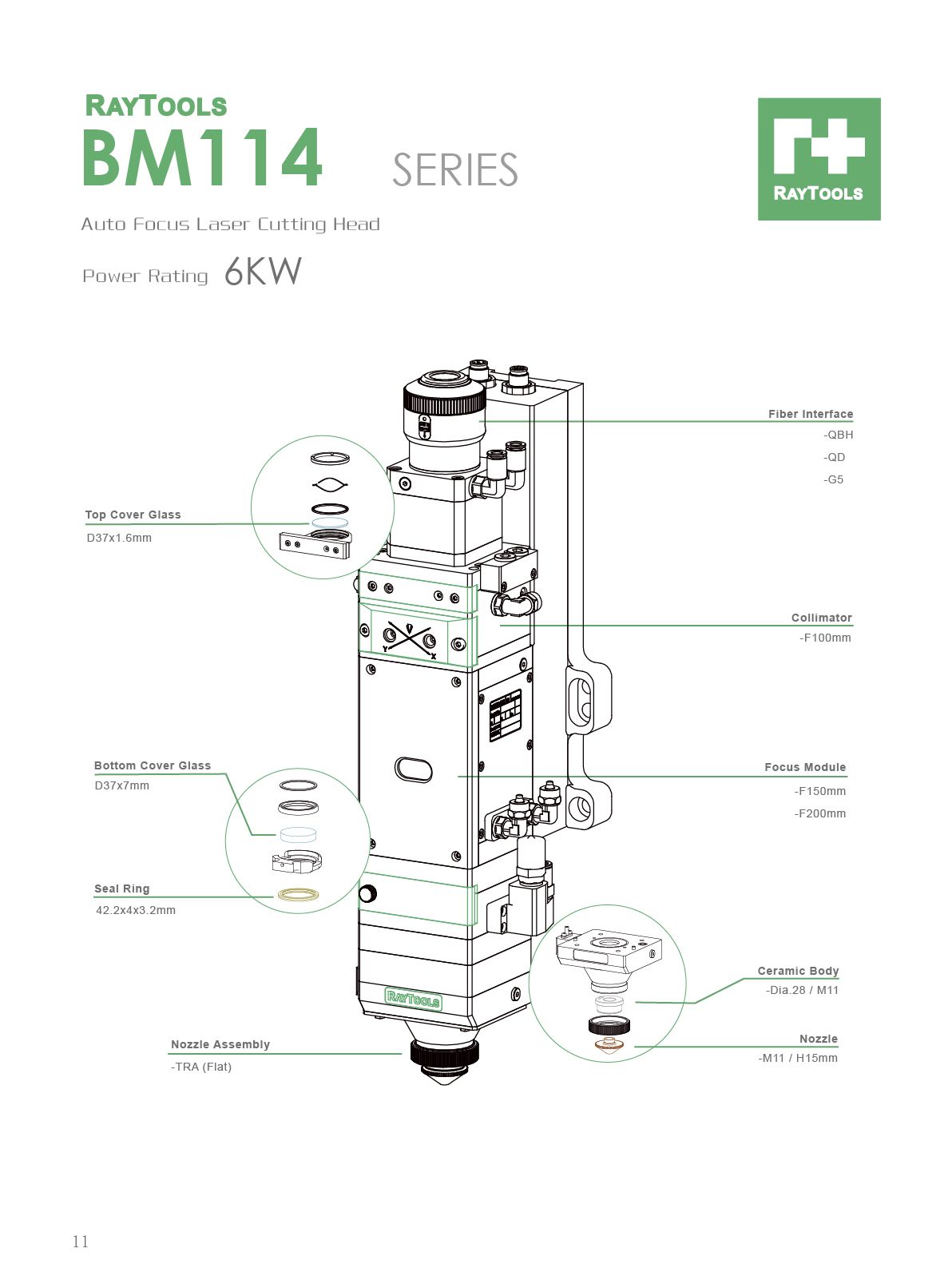

- Collimation Side (Top) |
Φ38.1*1.6mm |
|||
|
- Focusing Side (Bottom) |
Φ37*7mm |
