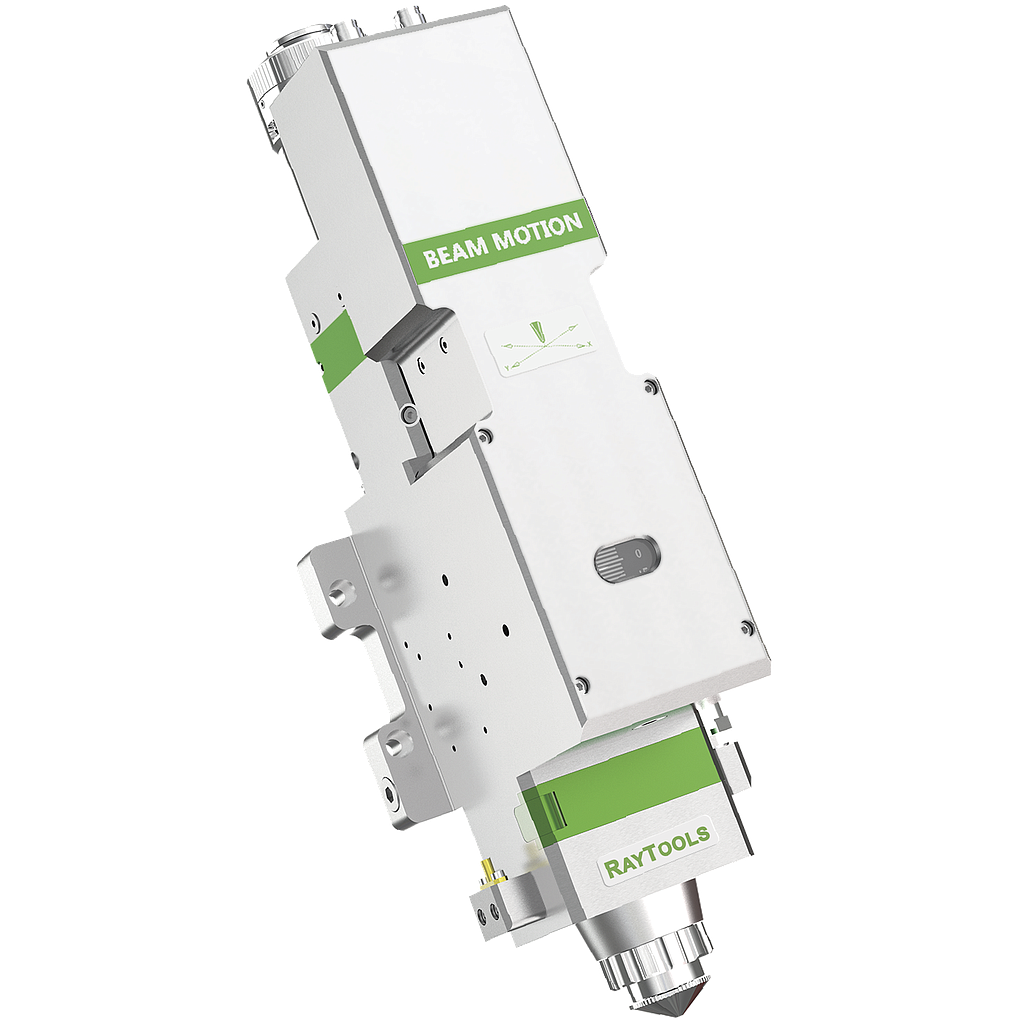

BM111 Auto Focus Laser Cutting Head
Power rating 3.3KW; Standard auto focus laser cutting.
- Features
- Technical Data

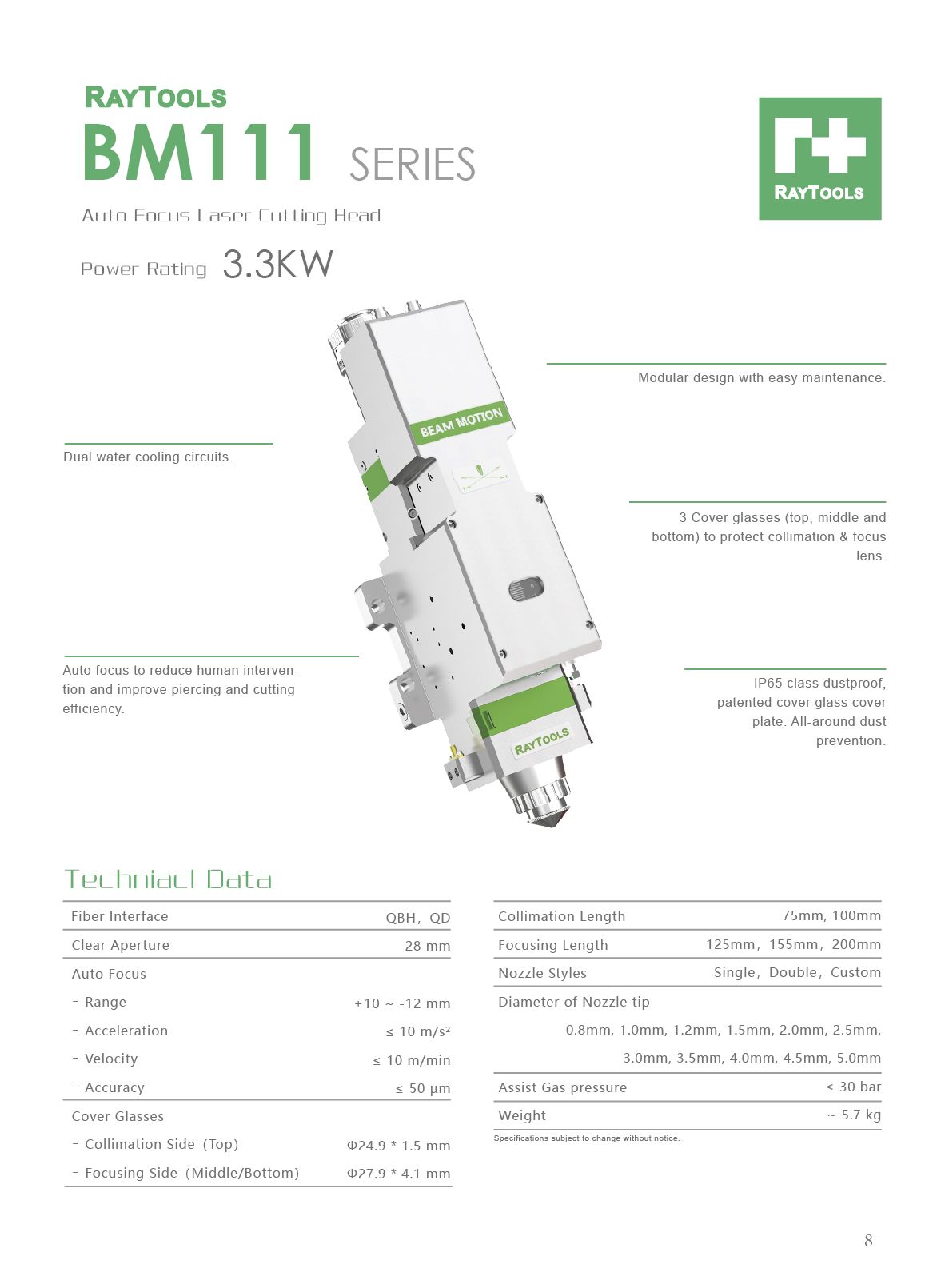

Modular design with easy maintenance.
Dual water cooling circuits.
Auto focus to reduce human intervention and improve piercing and cutting efficiency.

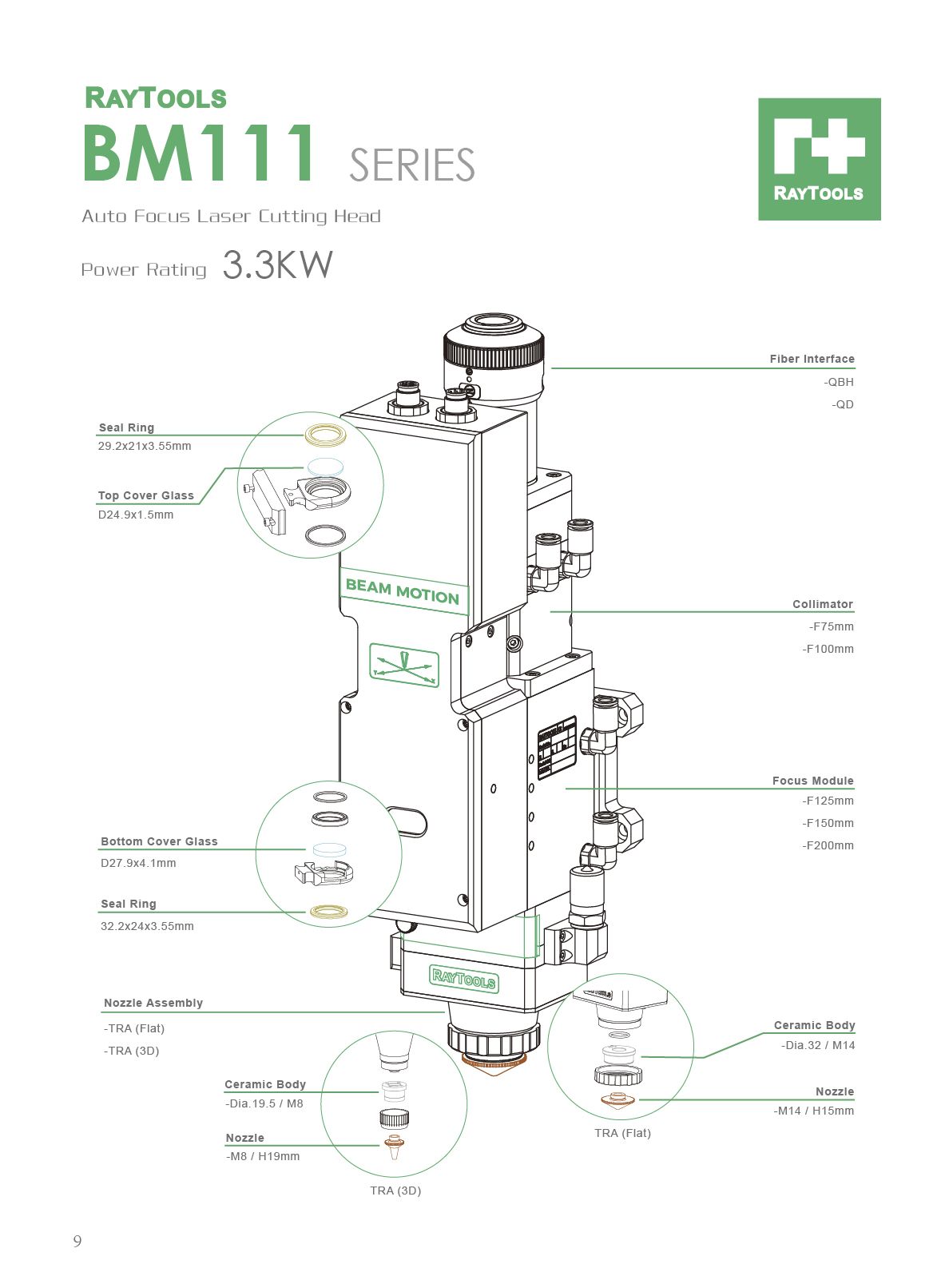

3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
|
Fiber Interface |
QBH , QD |
Collimation Length |
100mm |
|
|
Clear Aperture |
28 mm |
Focusing Length |
125mm , 155mm , 200mm |
|
|
Auto Focus |
|
Nozzle Styles |
Single , Double , Custom |
|
|
- Range |
+10 ~ -12 mm |
Diameter of Nozzle Tip |
||
|
- Acceleration |
≤10 m/s² |
|
0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, |
|
|
- Velocity |
≤10 m/min |
|
3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
|
|
- Accuracy |
≤ 50μm |
Assist Gas Pressure |
≤ 30 bar |
|
|
Cover Glasses |
|
Weight |
~ 5.7 kg |
|
|
- Collimation Side (top) |
Φ24.9* 1.5mm |
|||
|
- Focusing Side (Middle / Bottom) |
Φ27.9* 4.1mm |
