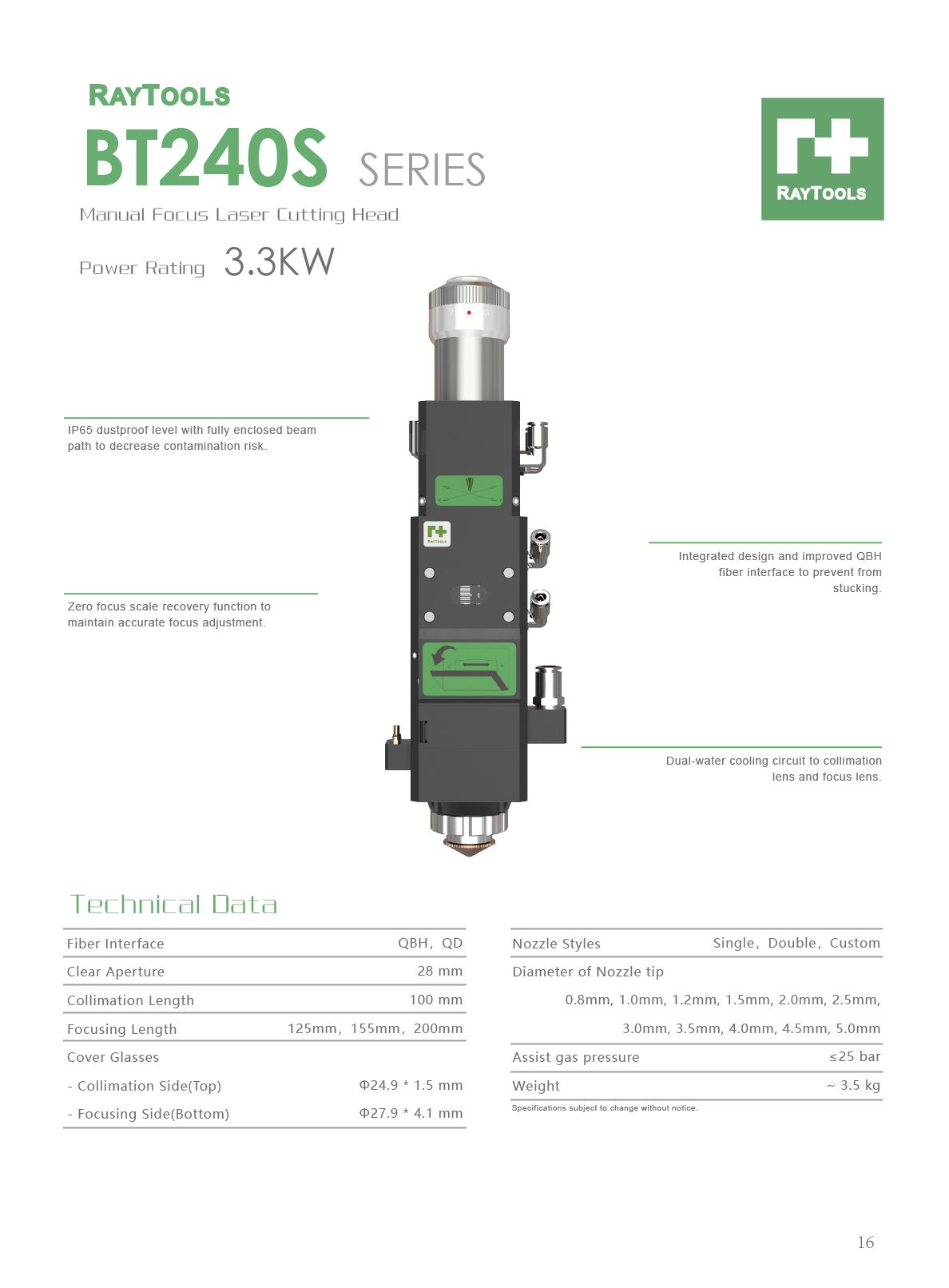

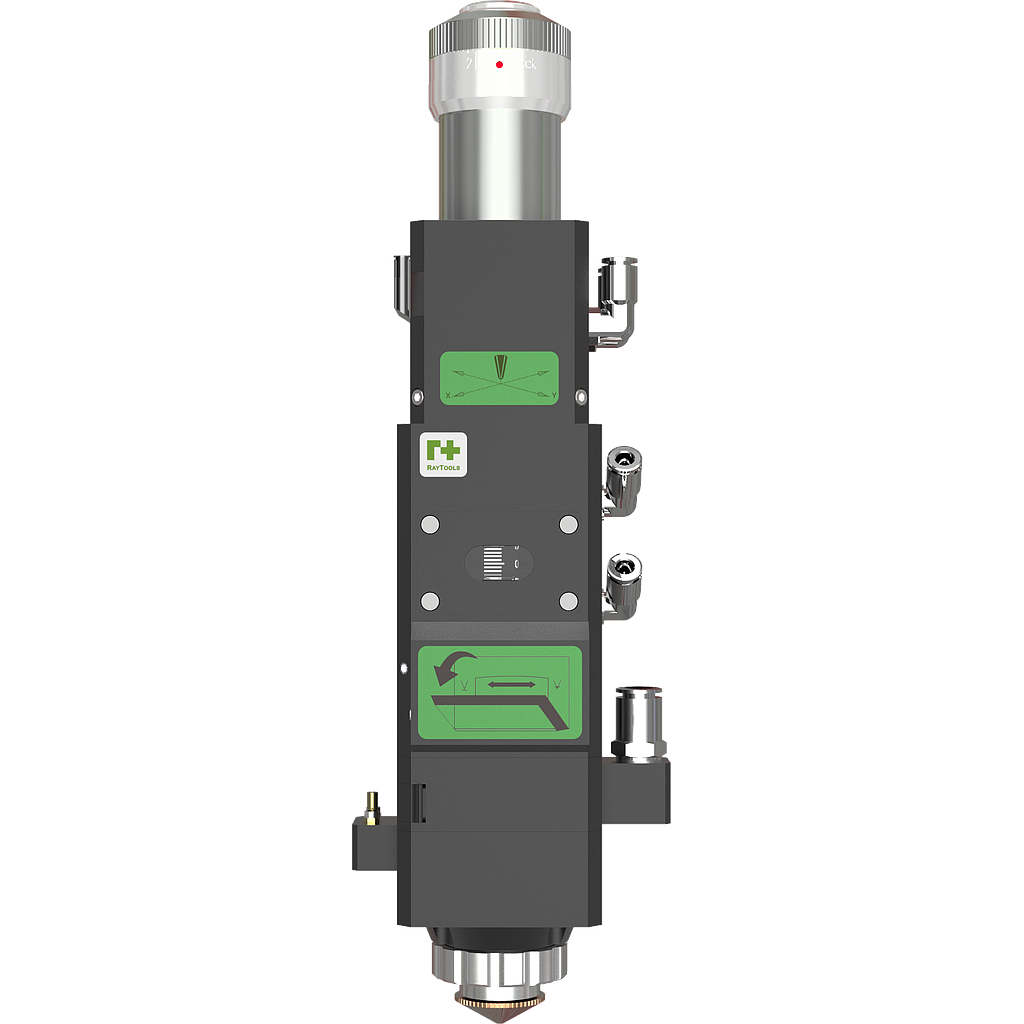

BT240S Manual Focus Laser Cutting Head

Power rating 2KW/3.3KW; Standard manual focus laser cutting.

  • Features
  • Technical Data

  • Zero focus scale recovery function to maintain accurate focus adjustment.

  • Integrated design and improved QBH fiber interface to prevent from stucking.

  • Dual-water cooling circuit to collimation lens and focus lens.

  • IP65 dustproof level with fully enclosed beam path to decrease contamination risk.

Fiber Interface

QBH , QD

Nozzle Styles

Single , Double , Custom

Clear Aperture

28mm

Diameter of Nozzle Tip

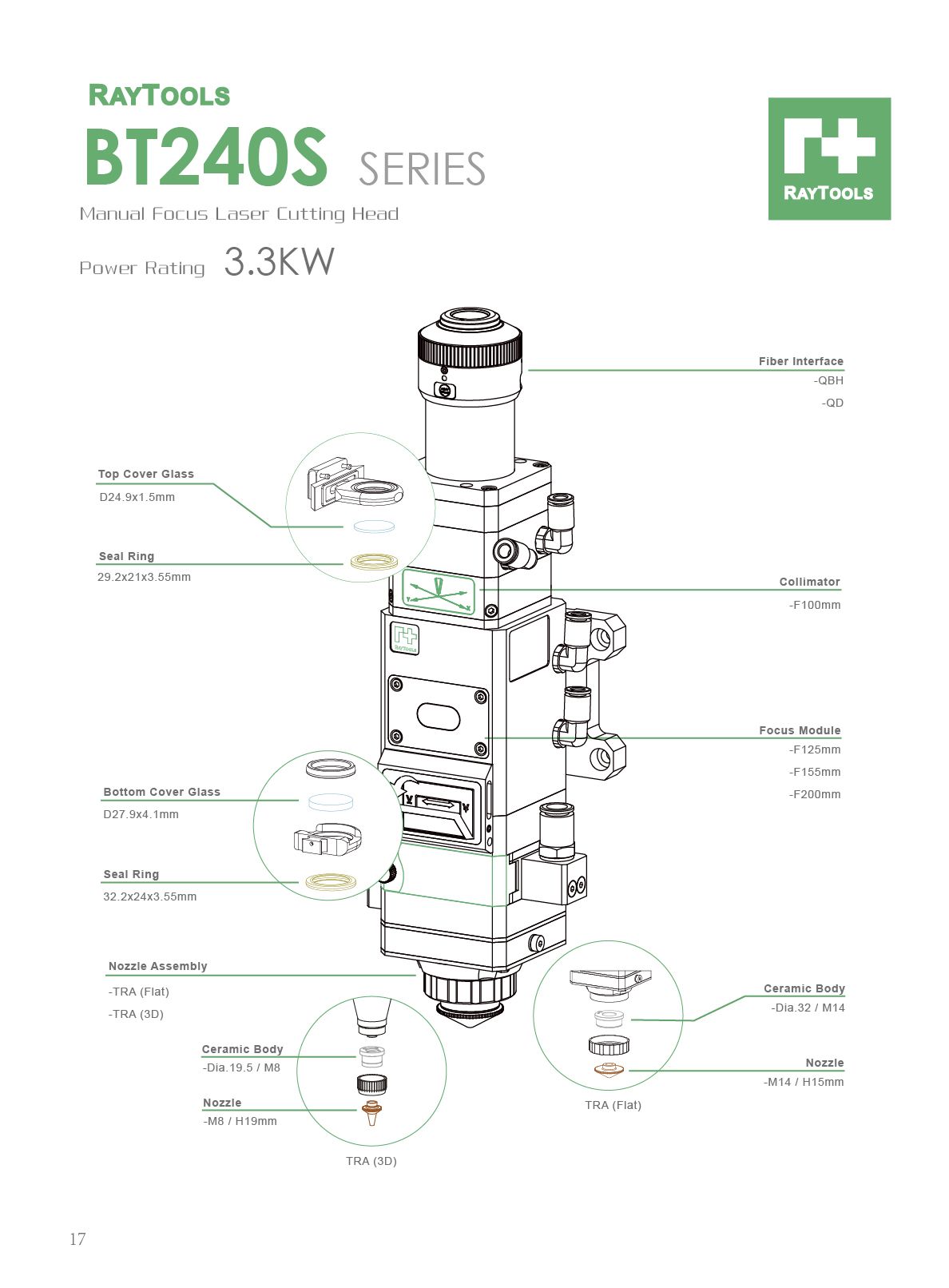

Cover Glasses

　

　

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm,

- Collimation Side (Top)

Φ24.9*1.5mm

　

3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

- Focusing Side (Bottom)

Φ27.9*4.1mm

Assist Gas Pressure

≤ 25 bar

Collimation Length

100mm

Weight

~ 3.5 kg

Focusing Length

125mm, 155mm, 200mm
